Author Topic: Reel adaptor for Eumig 926 projector needed
Paul Brandes
Film Handler

Posts: 61
From: Australia
Registered: May 2010

- posted August 09, 2010 04:29 PM      Profile for Paul Brandes     Send New Private Message       Edit/Delete Post
Hi

I have a Eumig 926 projector that is missing the plastic sleeve/adaptor that slides onto the drive shaft so that the take-up reel can be fitted onto it. I thought that someone on the forum may have a spare for sale or know where I could get one.
I would be very grateful for any help with this.

Thank you

Regards

Paul

 |  IP: Logged
Edwin van Eck
Master Film Handler

Posts: 312
From: Tilburg, Netherlands
Registered: Feb 2015

- posted February 14, 2015 09:06 AM      Profile for Edwin van Eck   Author's Homepage     Send New Private Message       Edit/Delete Post

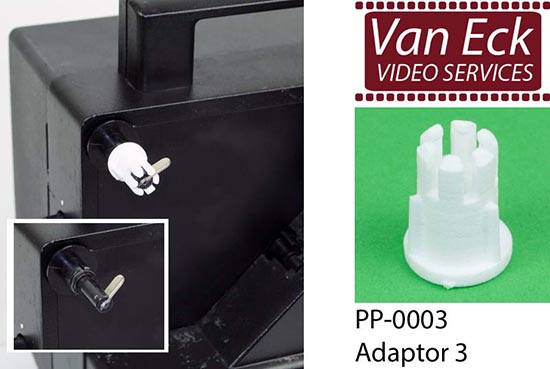

These reel adaptors are now newly produced!

-

You can find this reel adaptor here:
http://shop.van-eck.net/PP-0003.html

For the complete set of adaptor sleeves, see: http://shop.van-eck.net/film-projectors/adaptor-sleeves/p-1a/

--------------------
Edwin van Eck
Van Eck Video Services

 |  IP: Logged
frank arnstein
Jedi Master Film Handler

Posts: 534
From: Gold Coast. Australia
Registered: Jan 2005

- posted February 15, 2015 01:55 AM      Profile for frank arnstein   Author's Homepage     Send New Private Message       Edit/Delete Post
Thats great news Edwin..

Do you think you will also be doing the Wormwheel for the 900 series Eumigs? They are badly needed.

frank

[Wink]

--------------------
At Projector Heaven the Focus is always on Detail.

____
[o:/o]<|=- dogtor@projectorheaven.com.au
//``\\
-----------------------------------------------

 |  IP: Logged
Edwin van Eck
Master Film Handler

Posts: 312
From: Tilburg, Netherlands
Registered: Feb 2015

- posted February 15, 2015 02:49 AM      Profile for Edwin van Eck   Author's Homepage     Send New Private Message       Edit/Delete Post
Hi Frank,

The wormwheel for the Eumig 900 series is probably something we can make. I will make a project for this. Please send me some pictures of the (defect) wheel and which wheel you require.
(to info@van-eck.net)

Regards,
/Edwin van Eck.

--------------------
Edwin van Eck
Van Eck Video Services

 |  IP: Logged
Maurizio Di Cintio
Jedi Master Film Handler

Posts: 977
From: Ortona, Italy
Registered: Jan 2004

- posted February 15, 2015 04:43 AM      Profile for Maurizio Di Cintio     Send New Private Message       Edit/Delete Post
Frank, which wormwheel are you referring to? I've never had a problem with any of the geras inside Euming 900 series projectors... I wish someone could 3D print their soundheads, instead, but of course that's a totally different thing.

--------------------
Maurizio

 |  IP: Logged
Andrew Woodcock
Film God

Posts: 7477
From: Manchester Uk
Registered: Aug 2012

- posted February 15, 2015 05:43 AM      Profile for Andrew Woodcock         Edit/Delete Post
Maurizio, you have never spoken a more truer word regarding your sound head comment!!

I know Edwin, with his commitment to doing everything he can to preserve all the better Super 8mm and 16mm machines, is looking into the possibility of this also.

I for one, as I am certain you will agree Maurizio, am just hope he can pull something off with this also. If he managed to achieve this feat for us all, it would be nothing short of miraculous in this day and age!!

Here's hoping with fingers,toes and just about everything else, well and truly crossed.

--------------------
"C'mon Baggy..Get with the beat"

 |  IP: Logged
frank arnstein
Jedi Master Film Handler

Posts: 534
From: Gold Coast. Australia
Registered: Jan 2005

- posted February 15, 2015 09:56 PM      Profile for frank arnstein   Author's Homepage     Send New Private Message       Edit/Delete Post
Maurizio.

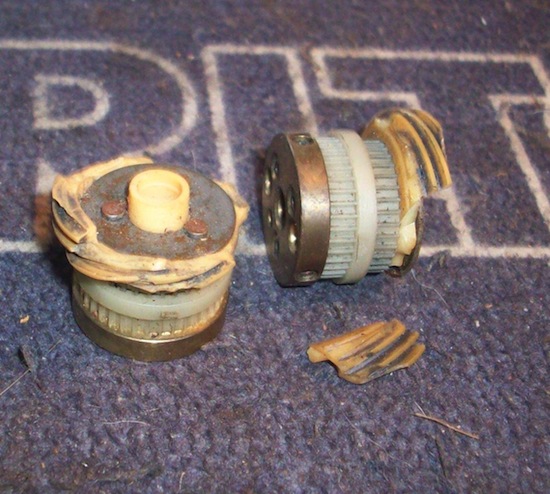

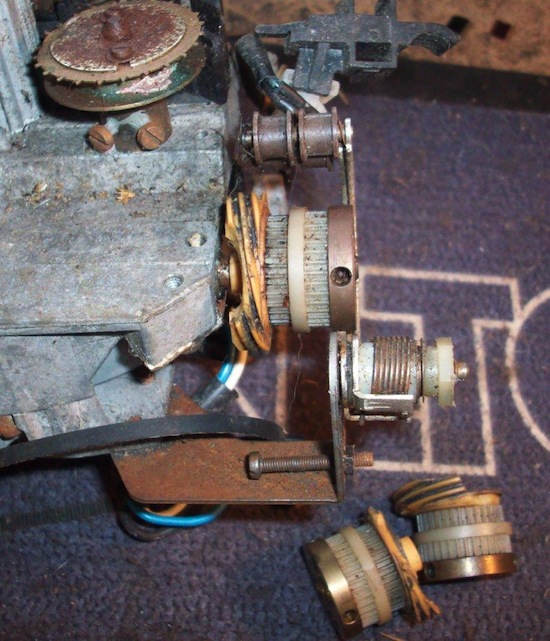

I have emailed you some pics of broken worm gears from Eumig 900 series machines.
Perhaps you can post one of those pics here for me, for all to see.

dogtor [Wink] [Smile]

-

-

[ February 18, 2015, 07:14 AM: Message edited by: Douglas Meltzer ]

--------------------
At Projector Heaven the Focus is always on Detail.

____
[o:/o]<|=- dogtor@projectorheaven.com.au
//``\\
-----------------------------------------------

 |  IP: Logged
Barry Fritz
Phenomenal Film Handler

Posts: 1061
From: Burnsville, MN, USA
Registered: Dec 2009

- posted February 15, 2015 11:30 PM      Profile for Barry Fritz   Email Barry Fritz   Send New Private Message       Edit/Delete Post
Edwin:
I tried to order a PP-0016 adapter at your site but was not able to do it. I filled in all my information and in the "Payment Method" page, I chose the online payment option but when I then clicked on "Next Step" I just got a message box that read: "Processing, one moment please". After about 30 minutes of trying and getting that same message, I gave up.

 |  IP: Logged
Dominique De Bast
Film God

Posts: 4486
From: Brussels, Belgium
Registered: Jun 2013

- posted February 16, 2015 12:05 AM      Profile for Dominique De Bast   Email Dominique De Bast   Send New Private Message       Edit/Delete Post
Barry, I could buy yesterday a PP-0001 without problem.

--------------------
Dominique

 |  IP: Logged
Edwin van Eck
Master Film Handler

Posts: 312
From: Tilburg, Netherlands
Registered: Feb 2015

- posted February 16, 2015 01:34 AM      Profile for Edwin van Eck   Author's Homepage     Send New Private Message       Edit/Delete Post
We get many online orders each day. If there is a problem there might be a temporary technical problem with the site. Please try again a little later. If that does not work, please send an E-mail with your order and we handle it manually.

--------------------
Edwin van Eck
Van Eck Video Services

 |  IP: Logged
Andrew Woodcock
Film God

Posts: 7477
From: Manchester Uk
Registered: Aug 2012

- posted February 16, 2015 04:04 AM      Profile for Andrew Woodcock         Edit/Delete Post
I have always found Edwins site to work very well indeed but even if it hadn't,Edwin is such a helpful guy who speaks good English etc, so ordering a product should never be a problem using one method or another, perhaps even the good old fashioned telephone call! Lol.

--------------------
"C'mon Baggy..Get with the beat"

 |  IP: Logged
Edwin van Eck
Master Film Handler

Posts: 312
From: Tilburg, Netherlands
Registered: Feb 2015

- posted February 16, 2015 04:10 AM      Profile for Edwin van Eck   Author's Homepage     Send New Private Message       Edit/Delete Post
Thanks!

For the readers of this forum, already a pre-press annoucement. We are in the process of upgrading our film parts reference tables. Here a preview already:

http://van-eck.net/itable.php?lang=nl&size=0&cat=film&merk=bauer&type=none

--------------------
Edwin van Eck
Van Eck Video Services

 |  IP: Logged
Barry Fritz
Phenomenal Film Handler

Posts: 1061
From: Burnsville, MN, USA
Registered: Dec 2009

- posted February 16, 2015 09:52 AM      Profile for Barry Fritz   Email Barry Fritz   Send New Private Message       Edit/Delete Post
Edwin, I sent you an email at your business email address.

 |  IP: Logged
Jim Schrader
Phenomenal Film Handler

Posts: 1628
From: Savage, MN, USA
Registered: Jun 2003

- posted February 16, 2015 11:01 AM      Profile for Jim Schrader   Author's Homepage     Send New Private Message       Edit/Delete Post
The take up reel can be either super 8 or 8mm for a dual machine does this make a difference? it looks like his is set for 8mm? can one use a 8mm take up reel?

--------------------
jim schrader
"Let's see “do I have that title already?"

 |  IP: Logged
Barry Fritz
Phenomenal Film Handler

Posts: 1061
From: Burnsville, MN, USA
Registered: Dec 2009

- posted February 16, 2015 11:13 AM      Profile for Barry Fritz   Email Barry Fritz   Send New Private Message       Edit/Delete Post
Yes, the take up reel will work for Super and Regular 8 film.

[ February 17, 2015, 10:50 AM: Message edited by: Barry Fritz ]

 |  IP: Logged
Barry Fritz
Phenomenal Film Handler

Posts: 1061
From: Burnsville, MN, USA
Registered: Dec 2009

- posted February 17, 2015 10:54 AM      Profile for Barry Fritz   Email Barry Fritz   Send New Private Message       Edit/Delete Post
Got the adapter ordered. That is a very nice site with many items useful to our hobby! Thanks Edwin and Linda.

 |  IP: Logged
Douglas Meltzer
Moderator

Posts: 4554
From: New York, NY, USA
Registered: Jun 2003

- posted February 18, 2015 07:18 AM      Profile for Douglas Meltzer   Email Douglas Meltzer   Send New Private Message       Edit/Delete Post
Broken worm gear pictures have been added to Frank's 2/15 post.

Doug

--------------------
I think there's room for just one more film.....

 |  IP: Logged
Edwin van Eck
Master Film Handler

Posts: 312
From: Tilburg, Netherlands
Registered: Feb 2015

- posted February 18, 2015 07:23 AM      Profile for Edwin van Eck   Author's Homepage     Send New Private Message       Edit/Delete Post
Worm gear design has been made. Quite complex part!
See:
-

Is currently being printed. Expect first test results in 1-2 weeks.

--------------------
Edwin van Eck
Van Eck Video Services

 |  IP: Logged
Osi Osgood
Film God

Posts: 10204
From: Mountian Home, ID.
Registered: Jul 2005

- posted February 18, 2015 12:51 PM      Profile for Osi Osgood   Author's Homepage     Send New Private Message       Edit/Delete Post
I once spent over an hour trying to find where that reel adapter fell to, only to realize that my wife, who was hoovering the carpet, had collected it in the debris bag! I had to dig it out of a lot of dust and all. Frustrating!!!!

--------------------
"All these moments will be lost in time, just like ... tears, in the rain. "

 |  IP: Logged
frank arnstein
Jedi Master Film Handler

Posts: 534
From: Gold Coast. Australia
Registered: Jan 2005

- posted February 18, 2015 07:11 PM      Profile for frank arnstein   Author's Homepage     Send New Private Message       Edit/Delete Post
Hi Edwin

That diagram is an excellent copy of the original. It is a very complex part and we all hope the component testing goes well.

dogtor frankarnstein [Wink] [Smile]

--------------------
At Projector Heaven the Focus is always on Detail.

____
[o:/o]<|=- dogtor@projectorheaven.com.au
//``\\
-----------------------------------------------

 |  IP: Logged
Andrew Woodcock
Film God

Posts: 7477
From: Manchester Uk
Registered: Aug 2012

- posted February 18, 2015 07:17 PM      Profile for Andrew Woodcock         Edit/Delete Post
According to what I have seen and what I have already from the 3D printer Frank, I am certain it will. I am sure you can buy in total confidence when the time comes. After all where else are you gonna get one of these from?

--------------------
"C'mon Baggy..Get with the beat"

 |  IP: Logged
frank arnstein
Jedi Master Film Handler

Posts: 534
From: Gold Coast. Australia
Registered: Jan 2005

- posted February 19, 2015 09:59 PM      Profile for frank arnstein   Author's Homepage     Send New Private Message       Edit/Delete Post
Hi Andrew,
You are very optimistic about these printed products and most of us feel the same and want them to succeed because we need the products.

Another potential Eumig 926 spare part that I will ask Edwin to look at making, is the small red plastic sound head tensioning clip.
These delicate red plastic clips are supposed to turn 90 degrees to release the pressure plate for access to the sound heads. They usually break when you turn them as they are so delicate and brittle. It doesn't look like a complex part to me.

Has anyone else had these red plastic clips break on them when removing or refitting the sound pressure plate.?
I will try to post a pic of it.

dogtor [Smile] [Wink]

--------------------
At Projector Heaven the Focus is always on Detail.

____
[o:/o]<|=- dogtor@projectorheaven.com.au
//``\\
-----------------------------------------------

 |  IP: Logged
Heinrich Kronschlaeger
Film Handler

Posts: 39
From: Linz, Austria
Registered: Jan 2004

- posted February 20, 2015 01:38 AM      Profile for Heinrich Kronschlaeger   Email Heinrich Kronschlaeger   Send New Private Message       Edit/Delete Post
The small red plastic sound head tensioning clip at the Eumig:
More than 10 years ago this part broke at my Eumig 926.
I filled this part ( inside ) with 2-component adhesive. Since that time this part didn`t break anymore

 |  IP: Logged
Andrew Woodcock
Film God

Posts: 7477
From: Manchester Uk
Registered: Aug 2012

- posted February 20, 2015 02:13 AM      Profile for Andrew Woodcock         Edit/Delete Post
Yes it's a good suggestion that one. Mine is hanging on for dear life. The same part is fitted on 926,938 & 940 models.
It is a particularly vulnerable and flimsy part on these.

--------------------
"C'mon Baggy..Get with the beat"

 |  IP: Logged
Edwin van Eck
Master Film Handler

Posts: 312
From: Tilburg, Netherlands
Registered: Feb 2015

- posted March 03, 2015 04:27 AM      Profile for Edwin van Eck   Author's Homepage     Send New Private Message       Edit/Delete Post
Hello film friends,

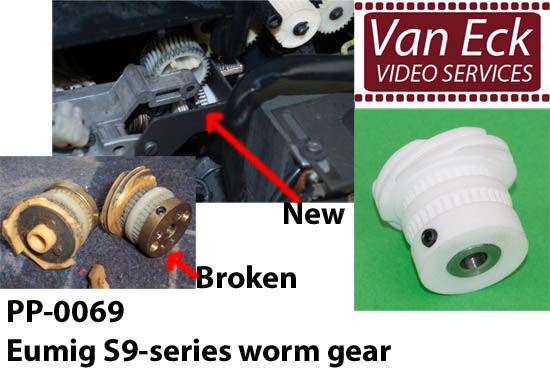

I have some very good news. The worm gear for the Eumig S9-series is ready. We have completed the first batch and testing. You can order it now from: http://shop.van-eck.net/PP-0069.html?_globalsearch=pp-0069

-

--------------------
Edwin van Eck
Van Eck Video Services

 |  IP: Logged
