Topic: dual-8mm Elmo K-100SM film projector repair manual/instructions

Steven Dotsch
Junior
Posts: 4
From: London, UK
Registered: Nov 2011

posted November 06, 2011 12:15 PM

In 1980, my father bought a dual-8mm Elmo K-100SM film projector. Unfortunately the projector belts are gone. I note that you sell replacements, which is great, but, while we have the instruction manual, I am trying to locate the projector's repair manual as the instruction manual does not include information on how to replace the projector belts.

Has anybody the repair manual? Or can you help/describe or add a copy of the respectve pages if you have them?

Kind regards
Steven Dotsch

| IP: Logged

Jon Addams
Jedi Master Film Handler

Posts: 638
From: New York, NY, USA
Registered: Apr 2007

posted November 06, 2011 01:13 PM

Hi Steven,

This projector needs two belts, a long one used to rotate the spindles and a short one which rotates the shutter.

The Elmo K-100SM has a diagram printed in the inside back cover showing the belting how to install the long belt (at least that has been the case of the few I've owned thru the years), the short belt is simple to install, it goes from the motor fan to the grooved wheel on the shutter shaft.

I've been searching for a service manual for several years without luck.

I hope this helps,

Jon

| IP: Logged

Steven Dotsch
Junior
Posts: 4
From: London, UK
Registered: Nov 2011

posted November 07, 2011 02:55 AM

Cheers Jon, unfortunately diagram has faded away.
Can anybody who has digitised the diagram let me know, please.

Thanks

Steven

| IP: Logged

Alan Billing
Junior
Posts: 2
From: Toronto, ON, Canada
Registered: Dec 2011

posted December 05, 2011 11:26 AM

Hello, Steven:

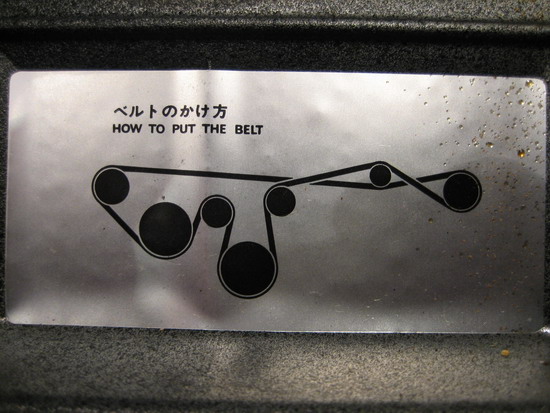

I seem to have the same problem as you with my K-100SM. But mine still has the belt routing picture on it. An image is included (I hope).

I need new belts too. Where are you getting them from?

Regards,

Alan Billing

| IP: Logged

Steven Dotsch
Junior
Posts: 4
From: London, UK
Registered: Nov 2011

posted December 06, 2011 03:44 AM

Hi Alan

That's great.

In the meantime I have found a seller of the belts, and bought via paypal. They are based in the UK, called E.S.Photographics run by Eddie Smyth

For a full list of our services and contact/address/payment details; visit www.esphotographics.com

E.S.Photographics: 96 Leverington Common, Leverington, Wisbech, CAMBS, PE13 5BW. Tel: 07894 302285.

| IP: Logged

Alan Billing
Junior
Posts: 2
From: Toronto, ON, Canada
Registered: Dec 2011

posted December 16, 2011 07:52 PM

Hello, Steven:

I hope the belt diagram helped. Many thanks for the belt source contact, I have sent an e-mail enqiry.

All the best for the holidays,

Alan

| IP: Logged
