Does anyone have a manual for the Synchronex Super 8 Sound projector?...or do you know anything about this machine? The one I picked up is in decent shape. It will need a new belt...but I got it running enough to test it. Runs film fine...but NO SOUND...not a peep. Any ideas appreciated [Smile]

[Smile]

http://www.super8data.com/database/projectors_list/projectors_synchronex/synchronex_s8_sound.htm

--------------------
Janice

"I'm having a very good day!"
Richard Dreyfuss - Let It Ride (1989).

| IP: Logged

frank arnstein
Jedi Master Film Handler

Posts: 534
From: Gold Coast. Australia
Registered: Jan 2005

posted November 05, 2012 05:31 AM

Author's Homepage

Send New Private Message

Edit/Delete Post

Hi Janice,

This projector was sold in Australia as a Titan Sound a matic.
Its a Japanese made projector and is quite a good performer.

The reason you don't hear a peep from it, is possibly because that super 8 sound machine of yours has no internal speaker.

It originally came with a hard side cover that contained the speaker and cabling, which plugs into the back. You will see a DIN socket for the speaker plug. Did you also get the side cover with the projector?

You will have some fun getting the rear cover off to get to the belt. good luck on it...

dogtor [Wink]

[Wink]

[Wink]

--------------------
At Projector Heaven the Focus is always on Detail.

____
[o:/o]<|=- dogtor@projectorheaven.com.au
//``\\
-----------------------------------------------

| IP: Logged

Janice Glesser
Film Goddess

Posts: 3468
From: Sunnyvale, CA USA
Registered: Sep 2011

posted November 05, 2012 09:47 AM

Send New Private Message

Edit/Delete Post

Ahhh....Frank...I can always count on you to come to my rescue. You are right about getting the back off. Took awhile to figure it out. I had to take off the legs and the handle...what a pain. The machine did come with the front cover. It contains the

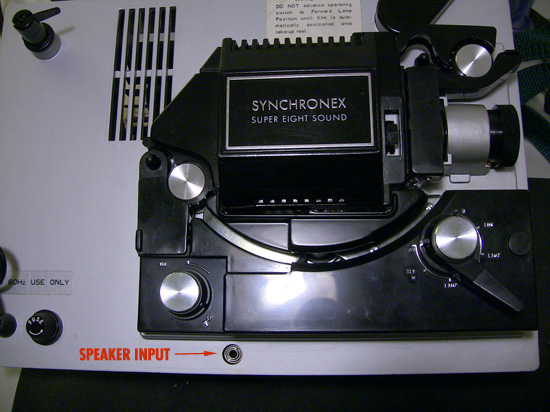

external speaker. It connects to the projector via a mini plug to the front of the projector. Tested...No sound. Do you have any suggestions on troubleshooting. Finding and changing the belt looks challenging too [Confused]

[Confused]

--------------------
Janice

"I'm having a very good day!"
Richard Dreyfuss - Let It Ride (1989).

| IP: Logged

frank arnstein
Jedi Master Film Handler

Posts: 534
From: Gold Coast. Australia
Registered: Jan 2005

posted November 05, 2012 02:00 PM

Author's Homepage

Send New Private Message

Edit/Delete Post

Hi Janice

Find the fuse to the amplifier and see if thats OK.
Try another speaker in the socket, sometimes they are blown and a new one fixes it.
Try operating the record button numerous times to clear any oxides from the switch contacts. See if you can get any sound at all from the speaker.

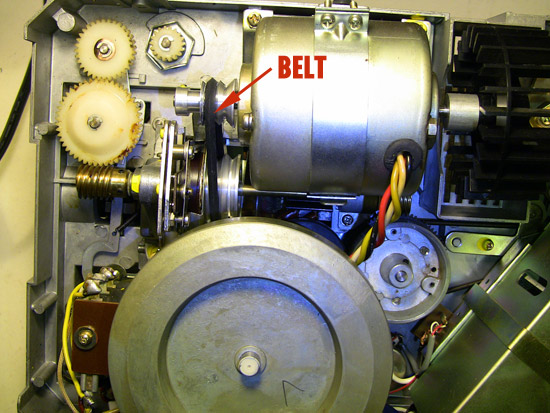

If you post a pic of the rear, I will try to recall how to swap the belt.

How did you like removing the handle clips on top.???
hehehe.. [Smile]

[Smile]

dogtor

[Razz]

[ November 06, 2012, 05:28 AM: Message edited by: frank arnstein ]

--------------------
At Projector Heaven the Focus is always on Detail.

____
[o:/o]<|=- dogtor@projectorheaven.com.au
//``\\
-----------------------------------------------

| IP: Logged

Janice Glesser
Film Goddess

Posts: 3468
From: Sunnyvale, CA USA
Registered: Sep 2011

posted November 06, 2012 07:44 PM

Send New Private Message

Edit/Delete Post

As far as removing the handle Frank....I think Houdini would have found it difficult to break into this thing [Smile]

[Smile]

Here's what I've tried so far...
- I tested the fuse that is on the front panel with a volt meter. I did get a reading so it appears to be good. That's the only fuse I see on the machine.

- I plugged in my earphones into the projector...nothing...then some small portable speakers...nothing...not even static.

- I plugged the projector speaker into a portable DVD player. I did get some sound...but it was very very faint.

- There is no record switch...just a volume dial. Turning it doesn't seem to help.

I haven't taken the front section off yet to look at the film path. Film runs very nicely through the machine though. The picture is extremely steady and the 20mm lens gives a very large sharp image. I think once I get a new belt installed it will be great for running silent film....but hopefully I'll be able to identify what's causing the sound problem and it's something I can fix.

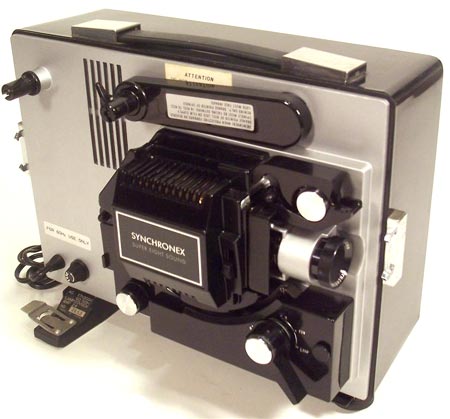

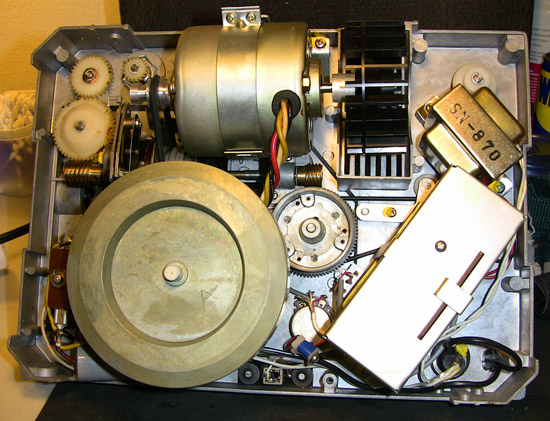

Here are a few pics to refresh your memory. Let me know if you need more.

--------------------
Janice

"I'm having a very good day!"
Richard Dreyfuss - Let It Ride (1989).

| IP: Logged

Pasquale DAlessio
Film God

Posts: 3523
From: Bristol,RI, USA
Registered: May 2010

posted November 06, 2012 09:33 PM

Send New Private Message

Edit/Delete Post

I didn't know Houdini worked on projectors? You learn something new everyday. [Wink]

[Wink]

| IP: Logged

frank arnstein
Jedi Master Film Handler

Posts: 534
From: Gold Coast. Australia
Registered: Jan 2005

posted November 06, 2012 10:19 PM

Author's Homepage

Send New Private Message

Edit/Delete Post

Hi Janice,

First loosen then remove the motor assembly and swing it aside to give access to the rear shutter-shaft bearing.

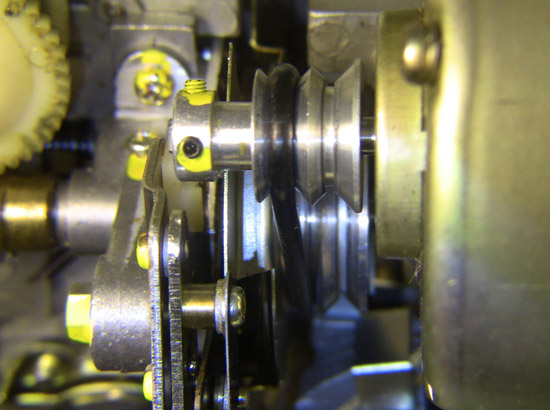

Remove the 2 philips screws to allow the rear of the shaft to come away just enough to slide the belts off and on.

With the no-sound issue, remove the front lower covers to investigate the sound head operation. From recollection, the mechanical operation of the sound head may need readjusting.
You wont see this operation till the selector knob and covers are off. Make sure the pressure pad is in place correctly.

There is a chromed lower film guide which is usually glued in place. On mine, the guide had come away and it wouldn't thread the film onto the sound head so there was no sound.
Check all that on yours.

good luck and let us know what you find...

dogtor [Razz]

[Razz]

--------------------
At Projector Heaven the Focus is always on Detail.

____
[o:/o]<|=- dogtor@projectorheaven.com.au
//``\\
-----------------------------------------------

| IP: Logged

Janice Glesser
Film Goddess

Posts: 3468
From: Sunnyvale, CA USA
Registered: Sep 2011

posted June 30, 2013 02:34 PM

Send New Private Message

Edit/Delete Post

It's been awhile since I've had time to work on this projector... but, I'm back at it with some success.

1. With the help of Dogtor Frank...I was able to replace the belt with an o-ring that although a bit tight seems to work.

2. I got the sound to work. I think it was the socket not making a good contact with the plug. I cleaned the wire and the sound is very load and crisp now.

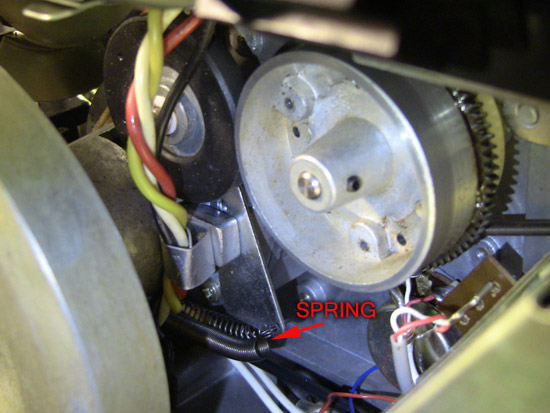

3. In testing I noticed the fly wheel was not always turning. The fly wheel design is a bit convoluted. There is a gear that turns a metal wheel... that turns a rubber wheel...that turns the fly wheel [Roll Eyes]

[Roll Eyes]

. From what I could tell...the rubber wheel was not making good contact with the metal wheel because of a loose spring tension. I shortened the spring to increase the tension. I also took some fine sandpaper and roughed up the rubber roller to make better contact. I've done this with success on my Eumig 810D. The flywheel is spinning up nicely now.

However...there is still another problem.

After running about 300ft of film through the projector the motor starts to labor and will eventually stop. It appears the motor is getting too hot. As soon as the motor cools down ..it starts running normal again.

Any thoughts or previous experiences would be appreciated...AND Dogtor Frank if you are out there...What do you think?

[ June 30, 2013, 06:26 PM: Message edited by: Janice Glesser ]

--------------------
Janice

"I'm having a very good day!"
Richard Dreyfuss - Let It Ride (1989).

| IP: Logged

frank arnstein
Jedi Master Film Handler

Posts: 534
From: Gold Coast. Australia
Registered: Jan 2005

posted July 01, 2013 09:08 AM

Author's Homepage

Send New Private Message

Edit/Delete Post

Hi Janice,

I would firstly replace the over-tight belt with a looser one.
That seems to be why your motor is overheating and it could soon burn out unless you reduce the friction by fitting a looser belt and drop some oil on the motor armature end bush.

I have been away and only got your message today about your Sankyo 800.
Sounds like you need to get an electrician to check it out.
Good thing Pete is getting you his voltage readings to compare with.

I think there is a small hidden glass line-fuse inside the wiring loom, somewhere behind the power socket. Its covered in black plastic tubing so you will need to cut it out when you find it. Also check the motherboard visually for burnt out printed circuitry.

Good luck with both machines.

dogtor frankarnstein.

[Smile]

[Smile]

[Wink]

--------------------
At Projector Heaven the Focus is always on Detail.

____
[o:/o]<|=- dogtor@projectorheaven.com.au
//``\\
-----------------------------------------------

| IP: Logged

Janice Glesser
Film Goddess

Posts: 3468
From: Sunnyvale, CA USA
Registered: Sep 2011

posted July 02, 2013 03:04 PM

Send New Private Message

Edit/Delete Post

Thanks Frank...I've ordered a larger belt...hopefully not too big ... I have a hard time judging sizes.

I noticed that this projector will run at 18 and 24 fps by moving the belt to the other groves. However on this machine this is no easy task since getting inside the back of the machine requires major dis-assembly in removing the handle and the leveling feet. This is not a practical thing to do on a regular basis.

Aside from the speed changing issue...if I get the motor to run cooler, this is a terrific little projector. Auto feed works smoothly...it seems very gentle on film ...the sound is loud and clear... the image is rock steady and I love the bigger picture with the 20mm lens.

--------------------
Janice

"I'm having a very good day!"
Richard Dreyfuss - Let It Ride (1989).

| IP: Logged

Norm Lehfeldt
Junior
Posts: 4
From: San Francisco, CA, USA
Registered: Sep 2015

posted October 18, 2015 07:06 PM

Send New Private Message

Edit/Delete Post

I just joined this site and came across this thread. Somewhere I have one of these projectors (and the camera and tethered audio cassette recorder that goes with it) Can find it right now but AIR, there is a phase-shifting capacitor that does bad in these machines. That's what causes the motor to wimp out. I recall replacing it with something from Radio Shack.

If this still a live issue, I'll poke around and see if I can find the thing.

| IP: Logged

Janice Glesser
Film Goddess

Posts: 3468
From: Sunnyvale, CA USA
Registered: Sep 2011

posted October 18, 2015 08:06 PM

Send New Private Message

Edit/Delete Post

Hi Norm...Wish I had known about the capacitor issue back when I had this projector. I pretty much gave up on it and moved on. However, thank you for posting. Perhaps it will be helpful for someone else in the future.

--------------------
Janice

"I'm having a very good day!"
Richard Dreyfuss - Let It Ride (1989).

| IP: Logged

Norm Lehfeldt
Junior
Posts: 4
From: San Francisco, CA, USA
Registered: Sep 2015

posted October 20, 2015 06:09 PM

Send New Private Message

Edit/Delete Post

I figured as much, Janice, but thought it might help someone. That is a nice projector.

| IP: Logged

Norm Lehfeldt
Junior
Posts: 4
From: San Francisco, CA, USA
Registered: Sep 2015

posted October 20, 2015 06:10 PM

Send New Private Message

Edit/Delete Post

I figured as much, Janice, but thought it might help someone. That is a nice projector.

| IP: Logged

Janice Glesser
Film Goddess

Posts: 3468
From: Sunnyvale, CA USA
Registered: Sep 2011

posted October 20, 2015 07:50 PM

Send New Private Message

Edit/Delete Post

This projector wasn't a total waste. I kept the nice 20mm lens and I mounted it in a Elmo 16CL adapter. It makes for a nice BIG picture [Smile]

[Smile]

--------------------
Janice
