Topic: Bolex 18-5 super 5fps only

Martin Steen
Junior
Posts: 13
From: New Brunswick, Canada
Registered: Jan 2014

posted May 27, 2014 05:07 PM

Hi all, just picked up Bolex 18-5 super for free and the only ting that appears to be at issue is that it will only play at 5fps. All belts look fine as does the chain.
At 5ps she runs smooth. At 18 there is a clicking noise, not loud just there, same in reverse.
Anyone had similar problems or know were to check first.
This one came with the SOM Berthiot 17-28mm f/1.3 zoom lens so I'd like to be able to use it.
On a side note, why are all the name plates always missing !!!
thanks in advance
Martin

| IP: Logged

Thomas Dafnides
Expert Film Handler

Posts: 247
From: St. Louis, Missouri USA
Registered: Dec 2009

posted May 27, 2014 08:49 PM

The names plates were just glued on...and dried out decades later...

| IP: Logged

Paul Adsett
Film God

Posts: 5003
From: USA
Registered: Jun 2003

posted May 27, 2014 08:59 PM

My label also fell off, but fortunately it was not lost. I bonded it back on with epoxy, so it's there to stay.

--------------------
The best of all worlds- 8mm, super 8mm, 9.5mm, and HD Digital Projection,
Elmo GS1200 f1.0 2-blade
Eumig S938 Stereo f1.0 Ektar
Panasonic PT-AE4000U digital pj

| IP: Logged

Martin Steen
Junior
Posts: 13
From: New Brunswick, Canada
Registered: Jan 2014

posted May 28, 2014 10:45 AM

Thanks Paul and Thomas, now if only someone could give me some insight as to what is ailing the projector I'd be well on my way.

Thanks again

| IP: Logged

Bryan Chernick
Jedi Master Film Handler

Posts: 654
From: Bothell, WA, USA
Registered: Mar 2010

posted June 01, 2014 12:07 AM

Based on my experience two things come to mind. It could be a problem with the switch that is keeping it at 5 fps. I've had very little success repairing those switches. The clicking noise could be a bent shutter blade rubbing on something. Open the bulb cover and rotate it slowly to see if you can detect it rubbing on something.

| IP: Logged

Martin Steen
Junior
Posts: 13
From: New Brunswick, Canada
Registered: Jan 2014

posted June 01, 2014 07:12 PM

Thanks Bryan for the reply.

I've tried to upload pictures to help with the diagnosis with no success. I'll therefore try to explain.

When the switch selector is engaged at 5 fps, both the pulleys and belts engage and the shutter mechanism spins. I'm able to view a slow motion movie at this speed with no issue.

When the selector is moved to the 18 fps (or any other point on the dial), the pulleys and belts both stop, as does the shutter. The clicking sound I referred to previously is coming from the mechanism to the right of the pulleys.
You can look at this thread as it has an image of the area that I am referring to.

http://8mmforum.film-tech.com/cgi-bin/ubb/ultimatebb.cgi?ubb=get_topic;f=1;t=006494

Any assistance would be appreciated

Incidentally is there an easy way to upload an image as I keep getting a login failed message. Is there a separate login and password for uploads?

| IP: Logged

Jon Addams
Jedi Master Film Handler

Posts: 638
From: New York, NY, USA
Registered: Apr 2007

posted June 01, 2014 07:49 PM

Hello Martin,

Four years ago I had the same question about uploading photos and I received an email with instructions from the always extremely helpful Doug (our forum moderator) - here is a copy of that email which I hope you find helpful.

The instructions are the same today as they were 4 years ago [Wink]

"When you click on the "Post Reply" button, you're taken to the page where you type your reply in the message box. Underneath that box, on the left side is a link that reads "Click here to upload an image." If you click on that, you're taken to the Image Upload page. Scroll down and you'll see a place to enter your username and password. After doing that, click on the "Browse" button, which lets you choose the photo you want to upload.

Remember, the photo can't be any larger than 550 pixels wide and muss be less than 200K file size. After you've chosen the photo, click the "Submit" button. If everything works properly, you'll see the "Success! Your Photo has been uploaded!" page. Copy the link for your photo and paste it into your response.

The photo should show up in your post!"

Good luck,

Jon

[ June 01, 2014, 10:31 PM: Message edited by: Jon Addams ]

| IP: Logged

Martin Steen
Junior
Posts: 13
From: New Brunswick, Canada
Registered: Jan 2014

posted June 01, 2014 07:54 PM

thanks Jon, here are the pictures.

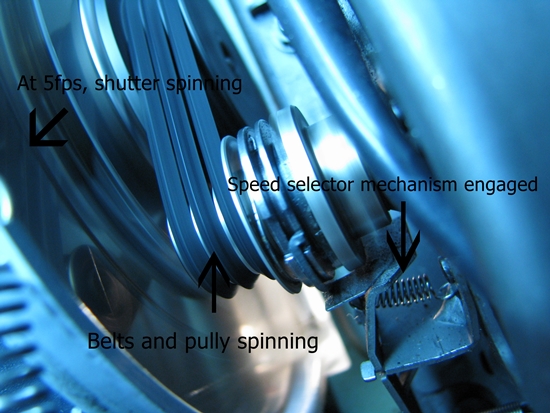

When the switch selector is engaged at 5 fps, both the pulleys and belts engage and the shutter mechanism spins. I'm able to view a slow motion movie at this speed with no issue.

When the selector is moved to the 18 fps (or any other point on the dial), the pulleys and belts both stop, as does the shutter. The clicking sound I referred to previously is coming from the mechanism to the right of the pulleys.

Any help would be appreciated

Martin
