I have two super 8 projectors (Bauer and Silma) with the same problem: the loop reformer is blocked!

They are very similar internally and infact the internal mechanism of the loop reformer, which is my problem here, is exactly the same.

In both projectors it is completely blocked on the right and it doesn't work and move at all!
If I try to move manually the roller towards the natural position (on the left) it's very hard and even impossible to move it!
So it remains all in the right position but in this case the loop reformer doesn't work at all!

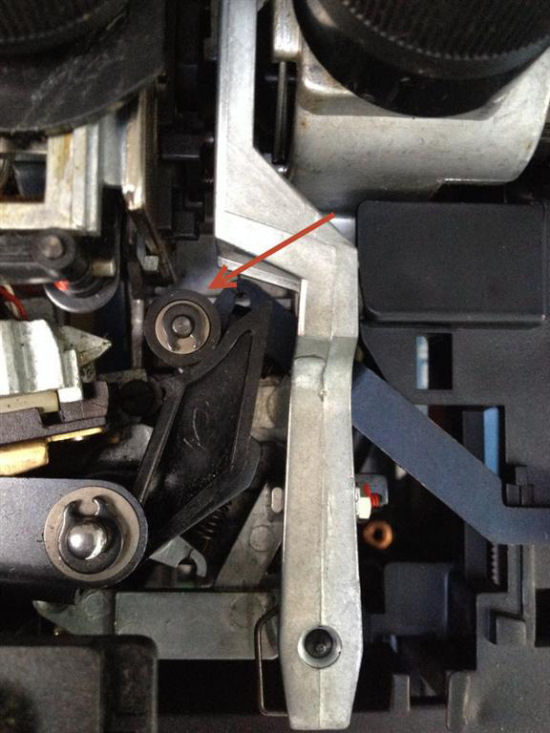

I attach a photo here below

Of course this creates a problem also to the film when it tries to enter in the sound heads...

Any help to have the mechanism again free to rotate as it should?

Thanks
Flavio

| IP: Logged

Jean-Marc Toussaint
Film God

Posts: 2392
From: France
Registered: Oct 2004

posted December 12, 2014 11:31 AM

Author's Homepage

Email Jean-Marc Toussaint

Send New Private Message

Edit/Delete Post

Flavio, did you try removing the film gate (the white metal part) to see if something was in the way ? Unplug the projector, rotate the control knob to the rewind position, then remove the film gate by pressing on the spring that is at the bottom left of the gate (bottom of your picture).

--------------------
The Grindcave Cinema Website

| IP: Logged

Flavio Stabile
Jedi Master Film Handler

Posts: 707
From: Roma, Italia
Registered: Feb 2005

posted December 12, 2014 11:55 AM

Send New Private Message

Edit/Delete Post

Hi Jean_Marc,

yes I already tried to remove the film gate easily, but I didn't find anything that could block the mechanism...

Indeed if I force and pull the mechanism through its rotation axes it moves, but it is very hard!

I can't believe that it's a problem of grease only for it, because any other mechanism around it is very free to move.

Flavio

| IP: Logged

Jean-Marc Toussaint
Film God

Posts: 2392
From: France
Registered: Oct 2004

posted December 12, 2014 12:41 PM

Author's Homepage

Email Jean-Marc Toussaint

Send New Private Message

Edit/Delete Post

As you certainly know, the Bauer T1XX series were manufactured by Silma. The Bauer T180, for instance, is the same machine as the Silma S233.
Anyways...
Any resistance from the loop lever (the loop restorer command that's located at the front of the projector) ?

--------------------
The Grindcave Cinema Website

| IP: Logged

Flavio Stabile
Jedi Master Film Handler

Posts: 707
From: Roma, Italia
Registered: Feb 2005

posted December 12, 2014 01:16 PM

Send New Private Message

Edit/Delete Post

Indeed i didn't know that SILMA produced BAUER models... I could expect the countrary...

Anyway, the loop lever can freely go down, but of course, it doesn't press anything because the loop mechanism is already down, at end run...

The same happens on both projectors! That's really crazy for me!

| IP: Logged

Andrew Woodcock
Film God

Posts: 7477
From: Manchester Uk
Registered: Aug 2012

posted December 12, 2014 01:34 PM

Edit/Delete Post

Cannot answer what your problem may be Flavio as I have never had an issue with this mechanism on the T610.(very similar)

All I can say is it is a very simple lever mechanism (if like the T610 as it appears to be) with a simple mechanical spring to return it into position if depressed so it really should be very simple to get to the bottom off the problem.

--------------------
"C'mon Baggy..Get with the beat"

| IP: Logged

Flavio Stabile
Jedi Master Film Handler

Posts: 707
From: Roma, Italia
Registered: Feb 2005

posted December 12, 2014 02:21 PM

Send New Private Message

Edit/Delete Post

hi Andrew,

just a question... when you rotate the main knob to move to the first position to thread the film and then to the second positon to light on the lamp, can you see any movement of this mechanism?
I mean, does it move from left to right and then returning back in the left position in order to be pulled by the loop lever to reform the loop in case of need?

Flavio

| IP: Logged

Andrew Woodcock
Film God

Posts: 7477
From: Manchester Uk
Registered: Aug 2012

posted December 12, 2014 02:35 PM

Edit/Delete Post

Off memory Flavio, the mechanical switch mechanism and linkages definitely moves the roller and bottom shoe first together while threading and then apart when projecting in normal "lamp on" position.

--------------------
"C'mon Baggy..Get with the beat"

| IP: Logged

Flavio Stabile
Jedi Master Film Handler

Posts: 707
From: Roma, Italia
Registered: Feb 2005

posted December 12, 2014 02:47 PM

Send New Private Message

Edit/Delete Post

So there should be something that completely block the roller because it doesn't move at all when rotating the main knob in forward or rear position...

I can't understand what is! And again ... In both projectors!

Just for information... The Silma is Delta 4, which I use for standard 8, and the Bauer is the T190 ML whose optical reproduction is absolutely fantastic!
I never heard an optical reproduction like this even in any of my Elmo Gs 1200 or ST 1200, believe me!

| IP: Logged

Andrew Woodcock
Film God

Posts: 7477
From: Manchester Uk
Registered: Aug 2012

posted December 12, 2014 02:54 PM

Edit/Delete Post

I have the T190 ML myself Flavio and yes,it does have fine reproduction of the optical track but sadly no top sprocket or else it would be my number 1 choice for optical prints alongside the Spondon. As for your other machine, all I can think is that one of your linkages has become detached on a pivot point which would make sense of what you are experiencing or possibly a worn cam from the main switch.

--------------------
"C'mon Baggy..Get with the beat"

| IP: Logged

Heinrich Kronschlaeger
Film Handler

Posts: 39
From: Linz, Austria
Registered: Jan 2004

posted December 13, 2014 03:14 AM

Email Heinrich Kronschlaeger

Send New Private Message

Edit/Delete Post

Flavio wrote:"Indeed if I force and pull the mechanism through its rotation axes it moves, but it is very hard!
I can't believe that it's a problem of grease only for it, because any other mechanism around it is very free to move."

This is indeed a problem of grease only. It is a very common and known issue with Bauer T*** projectors. I had the same fault with a T502, a T510 and a T520 and I was able to fix the problem in a simple way.
Add very fine oil (sewing machine oil is not good) to the rotating axis and move the part many, many times back and forth. Turn the switch on forward and back to 0. The part will move easier and easier, but that can take much time.
Kind regards
Henry

| IP: Logged

Andrew Woodcock
Film God

Posts: 7477
From: Manchester Uk
Registered: Aug 2012

posted December 13, 2014 06:00 AM

Edit/Delete Post

oh well all good then if it is just a case of adding some lubrication.I shall take note more on my T610 now I know this area can be problematic. So far though, I have never had any issue like this thankfully. Good luck with your machine Flavio.

--------------------
"C'mon Baggy..Get with the beat"

| IP: Logged

Flavio Stabile
Jedi Master Film Handler

Posts: 707
From: Roma, Italia
Registered: Feb 2005

posted December 13, 2014 08:54 AM

Send New Private Message

Edit/Delete Post

Hi Henry,

Following your suggestion, I first tried to unblock the mechanism and used a lubrificant called Svitol ( from Arexons) and Indeed I'm now able to move easier the part, even if it is not completely free.
It should return natural position by itself, while instead now I have to pull it manuallly...

It's clear now that the problem is really the grease...

You suggest to use 'fine OIL" and not the sewing machine OIL. Which one should I use exaclty?

Thanks
Flavio

| IP: Logged

Heinrich Kronschlaeger
Film Handler

Posts: 39
From: Linz, Austria
Registered: Jan 2004

posted December 13, 2014 12:52 PM

Email Heinrich Kronschlaeger

Send New Private Message

Edit/Delete Post

Hi Flavio,
I used CRAMOLIN Sprühöl ( SPRÜHÖL 200ml spray can - highly effective thin liquid lubricant - ITW Cramolin - 1111411 - Displaces moisture and water )
Henry

| IP: Logged

Flavio Stabile
Jedi Master Film Handler

Posts: 707
From: Roma, Italia
Registered: Feb 2005

posted December 13, 2014 01:02 PM

Send New Private Message

Edit/Delete Post

Hi Henry,

thanks for the information...

i've just discovered that even if the effect on both projectors is the same, the cause is not!

Infact, on the Bauer the problem is related to the grease and i worked in this direction as suggested by you.

On the Silma, the mechanism is capable of going a bit further on the left (really freely), but it cannot return at all in its original position on the right. I mean that here there is no problem of grease, but there should be something that is clearly blocking the return of the roller back.

[Mad]

[Mad]

| IP: Logged

Flavio Stabile
Jedi Master Film Handler

Posts: 707
From: Roma, Italia
Registered: Feb 2005

posted December 14, 2014 11:30 PM

Send New Private Message

Edit/Delete Post

Just an update....

The Bauer is now fixed thanks to the suggestion of Henry!!! [Smile]

[Smile]

So far I used only the Svitol to unblock, and now I should add some oil.

The Silma is still not functioning and I'm getting crazy because I really can't understand why the roller can't move back on the left position....

Any other suggestion?

| IP: Logged

Andrew Woodcock
Film God

Posts: 7477
From: Manchester Uk
Registered: Aug 2012

posted December 15, 2014 05:09 AM

Edit/Delete Post

Well done Henry & Flavio! Also thanks Henry for this top tip!

As for your Silma Flavio, is there perhaps a broken or snapped mechanical spring stopping the correct return of the roller or perhaps a damaged pivot point on one of the links?

--------------------
"C'mon Baggy..Get with the beat"

| IP: Logged

Flavio Stabile
Jedi Master Film Handler

Posts: 707
From: Roma, Italia
Registered: Feb 2005

posted December 15, 2014 08:48 AM

Send New Private Message

Edit/Delete Post

Hi Andrew,

I agree with you... the point is that I suspect I have to disassemble some parts in order to see what's happened but I don't know form where to start....

I guess that a service manual is not available for these small projectors, don't I?

[Roll Eyes]

[Roll Eyes]

| IP: Logged

Andrew Woodcock
Film God

Posts: 7477
From: Manchester Uk
Registered: Aug 2012

posted December 15, 2014 08:50 AM

Edit/Delete Post

Yes it will be Flavio for most, certainly is for the T610 from Old Timer Cameras once again.

--------------------
