Topic: Eumig parts required

Tom Photiou
Film God

Posts: 4837
From: Plymouth U.K
Registered: Dec 2003

posted October 24, 2015 02:27 PM

Hi all,
I am looking for two pairs of the little plastic rear rollers on the 810D and 801. These are the ones where the film comes out the back to feed around the take up reel. As you know each roller is in two halves.

| IP: Logged

Tom Photiou
Film God

Posts: 4837
From: Plymouth U.K
Registered: Dec 2003

posted October 25, 2015 12:22 PM

Any idea's chaps n girls? [Smile]

| IP: Logged

Dominique De Bast
Film God

Posts: 4486
From: Brussels, Belgium
Registered: Jun 2013

posted October 25, 2015 01:58 PM

You can buy them from Bolex in Switzerland. It's not cheap ;-)

--------------------
Dominique

| IP: Logged

Tom Photiou
Film God

Posts: 4837
From: Plymouth U.K
Registered: Dec 2003

posted October 25, 2015 02:01 PM

Thanks Dominique [Wink]

| IP: Logged

Barry Attwood
Phenomenal Film Handler

Posts: 1411
From: Enfield, U.K.
Registered: Aug 2003

posted October 26, 2015 03:10 AM

Tom have you tried phoning John White, he has many Eumig parts.

| IP: Logged

Steven J Kirk
Jedi Master Film Handler

Posts: 873
From: Southern England
Registered: Apr 2008

posted October 26, 2015 06:17 AM

Thanks, Dominique, that is a new one for me. Bolex:

http://www.bolex.ch/NEW/index.php

--------------------
VistaVision
Motion Picture High-Fidelity

| IP: Logged

Tom Photiou
Film God

Posts: 4837
From: Plymouth U.K
Registered: Dec 2003

posted October 26, 2015 07:23 AM

Good point Barry, i will do that.
Thank you [Wink]

| IP: Logged

Paul Adsett
Film God

Posts: 5003
From: USA
Registered: Jun 2003

posted October 26, 2015 09:24 AM

quote:
You can buy them from Bolex in Switzerland. It's not cheap

These must have cost about 10 cents a piece to make, how come they are expensive?

--------------------
The best of all worlds- 8mm, super 8mm, 9.5mm, and HD Digital Projection,
Elmo GS1200 f1.0 2-blade
Eumig S938 Stereo f1.0 Ektar
Panasonic PT-AE4000U digital pj

| IP: Logged

Steve Klare
Film Guy

Posts: 7016
From: Long Island, NY, USA
Registered: Jun 2003

posted October 26, 2015 10:11 AM

-supply and demand!

You have a sole source part that seems dedicated to escaping into the wild!

This may be the single most downright evil projector part in all creation! I've popped that little cover off and even with the machine laying on its side somehow they defy gravity and pop off the little rods they are mounted on.

Once they reach the floor they just seem to evaporate!

Making them dark brown was a stroke of genius for camouflage purposes too. I bet if they were red or white you'd have a fighting chance of recovering them.

Of course you really can't blame the poor new Eumig owner that asks the natural question "What's behind this little cover?"

-Pandora's Box!, that's what!

I've had pretty decent luck making copies of these nasty little things. McMaster Carr sells Delrin rod that is about the right size. I put it on a drill bit that is the same diameter the hole should be. I chuck this in my drill press and use small files to shape it, then a modeling saw to cut the finished part off.

It takes about three tries to produce a usable roller, and they are light brown!

--------------------
All I ask is a wide screen and a projector to light her by...

| IP: Logged

Barry Fritz
Phenomenal Film Handler

Posts: 1061
From: Burnsville, MN, USA
Registered: Dec 2009

posted October 26, 2015 10:22 AM

Could this be a project for Edwin van Eck?

| IP: Logged

Steve Klare
Film Guy

Posts: 7016
From: Long Island, NY, USA
Registered: Jun 2003

posted October 26, 2015 11:17 AM

Possibly:

It would be nice if someone made them as a single roller rather than paired halves. There is no reason one side of the film needs to go faster or slower than the other.

Besides, if you doubled the mass of the thing the extra inertia might make its unrestrained behavior a lot less...skittery!

-and I want it da-glo orange or green! [Wink]

--------------------
All I ask is a wide screen and a projector to light her by...

| IP: Logged

Paul Browning
Phenomenal Film Handler

Posts: 1006
From: West Midlands United Kingdom
Registered: Aug 2011

posted October 26, 2015 02:08 PM

Have you got a pattern part Tom, I could make the part for you, I have a small table top model makers lathe, I have just looked on you tube, are they two different sizes ?.

| IP: Logged

Tom Photiou
Film God

Posts: 4837
From: Plymouth U.K
Registered: Dec 2003

posted October 26, 2015 02:54 PM

Paul, I think they are both the same,

| IP: Logged

Paul Browning
Phenomenal Film Handler

Posts: 1006
From: West Midlands United Kingdom
Registered: Aug 2011

posted October 26, 2015 03:06 PM

What's happened to them tom, have they just worn out or got flats on them because they have stopped spinning in the film path.

| IP: Logged

Tom Photiou
Film God

Posts: 4837
From: Plymouth U.K
Registered: Dec 2003

posted October 26, 2015 03:18 PM

No i have just purchased on my Brothers behalf a really good Eumig 810DLUX HQS, i noticed that there is only one half of the roller at the rear.
I took the machine apart for a thorough clean up and this appears to be the only thing wrong so i was hoping to get a few pairs as we do have 4 of these machines, an 822 sonomatic, this 810D, an 807 and a 710D and i believe they all use the same rollers on this rear end. (3 sets inside each cover) [Wink]

| IP: Logged

Paul Browning
Phenomenal Film Handler

Posts: 1006
From: West Midlands United Kingdom
Registered: Aug 2011

posted October 26, 2015 03:45 PM

Oh right, well if you have a spare set I can have a look at and get some dimensions from and then I will send them back to you. Do you want them split or one piece items, why there split is anyone's guess. Once I've had a look, you can decide then if you want them made from alloy or plastic, have you found out what they will cost from bolex ?.

| IP: Logged

Steve Klare
Film Guy

Posts: 7016
From: Long Island, NY, USA
Registered: Jun 2003

posted October 26, 2015 03:58 PM

I'm guessing they are split because it was easier to cast them this way: as a double cone they'd have to be done in a two piece mold that would leave a casting line down each side they'd then have to smooth or risk having a ridge scrape the film twice each rotation.

--------------------
All I ask is a wide screen and a projector to light her by...

| IP: Logged

Tom Photiou
Film God

Posts: 4837
From: Plymouth U.K
Registered: Dec 2003

posted October 26, 2015 04:20 PM

Paul that would be great, i can send a pair to you no problem,i'm guessing two halves would be the way to go as these projectors are known to be so kind to film and these items must be a part of the reason. [Wink]

| IP: Logged

Paul Browning
Phenomenal Film Handler

Posts: 1006
From: West Midlands United Kingdom
Registered: Aug 2011

posted October 26, 2015 04:52 PM

I'll pm you the address details Tom.

| IP: Logged

Dominique De Bast
Film God

Posts: 4486
From: Brussels, Belgium
Registered: Jun 2013

posted October 26, 2015 05:50 PM

Paul Adsett, you have obviousely never been to Switzerland. Everything is expensive, there ;-)

--------------------
Dominique

| IP: Logged

Tom Photiou
Film God

Posts: 4837
From: Plymouth U.K
Registered: Dec 2003

posted October 26, 2015 06:04 PM

thanks Paul,and to everyone who has replied. [Wink]

| IP: Logged

Edwin van Eck
Master Film Handler

Posts: 312
From: Tilburg, Netherlands
Registered: Feb 2015

posted January 15, 2018 07:43 AM

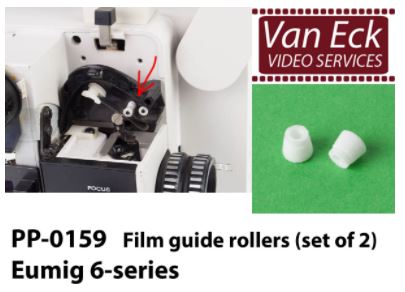

Completed today the rollers for the Eumig mark 6 series.

https://shop.van-eck.net/PP-0159.html?_globalsearch=pp-0159

The rollers for the Eumig 824 are also ready: https://shop.van-eck.net/PP-0197.html?_globalsearch=824

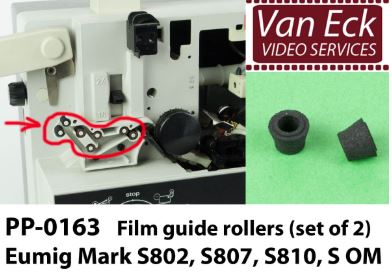

Soon also rollers for the other projectors in the Eumig 7 and 8-series.

--------------------
Edwin van Eck
Van Eck Video Services

| IP: Logged
