Topic: How to get the bulb housing off on a goko a 203 editor?

Kenneth DePriest Jr
Film Handler

Posts: 64
From: severn MD
Registered: Aug 2012

posted April 28, 2015 09:20 AM

JUst got it, it looks just like a certain Vernon editor ( the one eith the on off switch in the lower right corner....this looks like the Elmo 912 but the plastic vented piece where the bulb is wont budge, I have the original box but no manual can't find one on line.

thanks!

| IP: Logged

Joe Taffis
Phenomenal Film Handler

Posts: 1592
From: United States
Registered: Jun 2003

posted April 28, 2015 09:35 AM

Kenneth,
If it's like the ELMO 912, you pull the housing straight towards yourself to remove it. I could e-mail you the manual for the Elmo 912. PM me if you need it....

--------------------
Joe Taffis

| IP: Logged

Janice Glesser
Film Goddess

Posts: 3468
From: Sunnyvale, CA USA
Registered: Sep 2011

posted April 28, 2015 02:07 PM

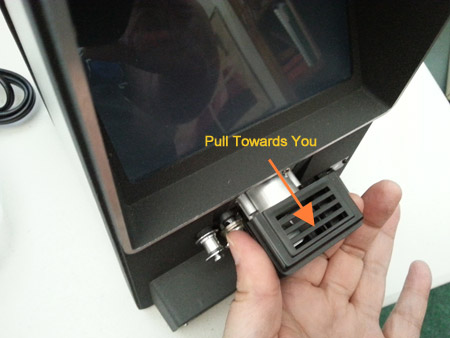

This style editor/viewers was sold under several brand names and made in Japan by Sansei Koki (Goko, Argus, Sun-Star, JC Penney, Elmo...) Joe has described how to remove the plastic lens housing. Here's a photo. It should just slide off. Try rocking it from side to side as you pull towards you. If it is stuck you might try prying it with a small screwdriver.

[ April 28, 2015, 04:53 PM: Message edited by: Janice Glesser ]

--------------------
Janice

"I'm having a very good day!"
Richard Dreyfuss - Let It Ride (1989).
