Topic: Elmo 16 CL viewing

Vidar Olavesen
Film God

Posts: 2232
From: Sarpsborg, Norway
Registered: Nov 2012

posted April 14, 2013 03:08 PM

Is it not possible to run a movie backward on this? I mean, just wanted to go a little back, but it starts rewinding :-)

Thanks

| IP: Logged

Janice Glesser
Film Goddess

Posts: 3468
From: Sunnyvale, CA USA
Registered: Sep 2011

posted April 14, 2013 05:11 PM

No reverse on the 16-CL...but because of the slot loading ... you can stop it and back it up by hand.

--------------------
Janice

"I'm having a very good day!"
Richard Dreyfuss - Let It Ride (1989).

| IP: Logged

Vidar Olavesen
Film God

Posts: 2232
From: Sarpsborg, Norway
Registered: Nov 2012

posted April 14, 2013 05:43 PM

Yes, a big plus to to able to do that ... I do like this more than my Bauer P7, seems more stable in the sound.

Thank you

| IP: Logged

Lee Bombard
Expert Film Handler

Posts: 139
From: Santa Clarita, CA, USA
Registered: May 2013

posted June 20, 2013 12:50 PM

Did the 16CL come stock with a zoom or fixed lens?

| IP: Logged

Vidar Olavesen
Film God

Posts: 2232
From: Sarpsborg, Norway
Registered: Nov 2012

posted June 20, 2013 01:10 PM

Mine came with a fixed lens ... Bought an adaptor, so now I have a zoom lens on it ... Nice machine and the slot loading is absolutely fabulous. Love it

| IP: Logged

Lee Bombard
Expert Film Handler

Posts: 139
From: Santa Clarita, CA, USA
Registered: May 2013

posted June 20, 2013 01:20 PM

Thanks Vidar.
I'm new to 16mm. What kind of expense would an adaptor and a zoom lens be?

| IP: Logged

Vidar Olavesen
Film God

Posts: 2232
From: Sarpsborg, Norway
Registered: Nov 2012

posted June 20, 2013 01:55 PM

I don't recall what I paid, but I think Larry Urbanski has it ...

http://www.urbanskifilm.com/projectors.html

135 dollars is, if I am not mistaken, both adaptor and lens. Ask Larry, he had two choices for me when I asked for it.

Good luck

| IP: Logged

Maurice Leakey
Film God

Posts: 5895
From: Bristol. United Kingdom
Registered: Oct 2007

posted June 21, 2013 10:10 AM

The 16-CL converter is called "Elmo Zoom Converter - 16". It is marked as "X 0.8 ~ 1.25" and also "Elmo Japan".

--------------------
Maurice

| IP: Logged

Winbert Hutahaean
Film God

Posts: 5468
From: Nouméa, New Caledonia
Registered: Jun 2003

posted August 15, 2016 11:10 PM

Sorry to revive all thread.

But any explanation why Elmo sold 16CL without a variable zoom lens like its Elmo Super 8mm projectors line ups?

--------------------
Winbert

| IP: Logged

Elyas Tesfaye
Jedi Master Film Handler

Posts: 520
From: Winnipeg, Manitoba, Canada
Registered: Nov 2012

posted August 18, 2016 06:03 AM

Hey Vidar,

I absolutely agree about the slot load being convenient, sure love it on my EIKI SSL-Os [Smile]

!!!

Best,
ET

| IP: Logged

Janice Glesser
Film Goddess

Posts: 3468
From: Sunnyvale, CA USA
Registered: Sep 2011

posted August 18, 2016 09:42 AM

It wasn't just Elmo. Just about all 16 millimeter projectors came with a fixed 50 millimeter lens. A variable zoom lens was an optional accessory.

--------------------
Janice

"I'm having a very good day!"
Richard Dreyfuss - Let It Ride (1989).

| IP: Logged

Winbert Hutahaean
Film God

Posts: 5468
From: Nouméa, New Caledonia
Registered: Jun 2003

posted August 18, 2016 12:48 PM

quote:
A variable zoom lens was an optional accessory.

Is there a reason behind this?

--------------------
Winbert

| IP: Logged

Andrew Woodcock
Film God

Posts: 7477
From: Manchester Uk
Registered: Aug 2012

posted August 18, 2016 01:31 PM

Yes Winbert.As Janice has already said, nearly all but the most expensive portable 16mm projectors only came with a fixed focal length (usually 50mm) standard lens, as standard.

Zoom lenses were an optional extra.

The Bauer P8 for example, is one such projector that would have been supplied with a zoom lens straight out of the box.

--------------------
"C'mon Baggy..Get with the beat"

| IP: Logged

Terry Sills
Phenomenal Film Handler

Posts: 1423
From: Weymouth,Dorset,England
Registered: Oct 2012

posted August 18, 2016 01:31 PM

Simply cost. Zooms are always more expensive.

| IP: Logged

Andrew Woodcock
Film God

Posts: 7477
From: Manchester Uk
Registered: Aug 2012

posted August 18, 2016 01:34 PM

Indeed!

--------------------
"C'mon Baggy..Get with the beat"

| IP: Logged

Winbert Hutahaean
Film God

Posts: 5468
From: Nouméa, New Caledonia
Registered: Jun 2003

posted August 18, 2016 08:20 PM

quote:
Simply cost. Zooms are always more expensive.

Having been in super 8mm collecting for years, this is amazed me. Every 8mm projectors I knew came with variable zoom lens and the projector's price is just so so. We can an expensive 1.0 lens or just the common 1.3, depend on your budget.

Is it different in lens type, quality, the way of making for 16mm variable zoom lens?

--------------------
Winbert

| IP: Logged

Janice Glesser
Film Goddess

Posts: 3468
From: Sunnyvale, CA USA
Registered: Sep 2011

posted August 18, 2016 10:20 PM

Winbert...Here is an inexpensive way to add a variable lens to the Elmo 16CL.

The lens I used was from an Bell & Howell MX33. B&H made several models of this projector. Most don't work now so should be easy to find a machine for almost nothing.

Next... order an Elmo 16CL lens adapter from Shapeways. It was designed by one of our own Forum members, Julian Baquero.

http://www.shapeways.com/product/QTGC5QN28/bell-ho well-lens-adapter-to-elmo-16mm-projector?optionId=43026256&li=user-profile

There is a small thin plastic tab that protrudes from the black barrel of the lens. There is an opening on the adapter to accomodate this. However the black tab sticks out about an 1/8th of an inch preventing insertion into the projector lens mount. I just sanded it down to be even with the edge of the adapter...you could also just clip it off.

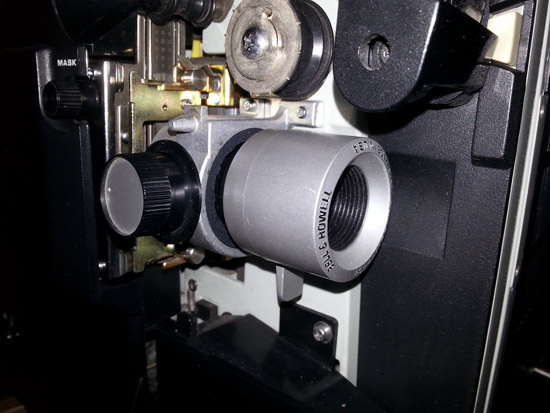

Here is the lens in the projector. Granted its optics are not as high quality as an original Elmo ... but it isn't bad either and a very frugal solution.

--------------------
Janice

"I'm having a very good day!"
Richard Dreyfuss - Let It Ride (1989).

| IP: Logged

Terry Sills
Phenomenal Film Handler

Posts: 1423
From: Weymouth,Dorset,England
Registered: Oct 2012

posted August 19, 2016 02:10 AM

Winbert
If you compare 16mm zooms to 8mm you will see that the 16mm zooms are obviously heavy precision made lenses. Most 8mm zooms are made of plastic and not of the same quality. However it is not always the case. There are some 8mm zooms of high quality - like Schneider Kreuscnach in particular - but they fetch high prices theses days because of the superior image they give.

| IP: Logged

Andrew Woodcock
Film God

Posts: 7477
From: Manchester Uk
Registered: Aug 2012

posted August 19, 2016 03:23 AM

Indeed!

The Xenovaron is a plastic gem!

--------------------
"C'mon Baggy..Get with the beat"

| IP: Logged

Janice Glesser
Film Goddess

Posts: 3468
From: Sunnyvale, CA USA
Registered: Sep 2011

posted August 22, 2016 03:41 PM

I'm a bit surprised at no comments about the DIY zoom lens solution I proposed above - positive or negative [Confused]

Is this just common knowledge or what? I think if you are in a small space and need to make the picture bigger on a low budget ...this is a viable alternative. What's your opinion?

--------------------
Janice

"I'm having a very good day!"
Richard Dreyfuss - Let It Ride (1989).

| IP: Logged

Greg Perry
Film Handler

Posts: 86
From: midwest
Registered: Dec 2015

posted August 22, 2016 11:35 PM

Janice,

I think your low-cost solution is brilliant! I will be on the hunt for a B&H projector lens myself. At the very least, it is a good temporary solution till a more precision (and hence costly) lens can be acquired.

Thanks for sharing this idea, and for your many other contributions to the forum (PDF's of manuals etc). I always seem to learn something worthwhile from your adventurous efforts!

| IP: Logged

Janice Glesser
Film Goddess

Posts: 3468
From: Sunnyvale, CA USA
Registered: Sep 2011

posted August 23, 2016 03:22 AM

Thank you Greg. It's good to hear your feedback. I'm going on vacation for a couple of weeks, but when I get back I'll try to put together a lens comparison video. I have a standard Elmo 50mm...an Elmo 35mm...a generic 25mm in 16CL adapter sleeve...and the B&H Zoom lens in the 16CL adapter. Should be interesting [Smile]

--------------------
Janice

"I'm having a very good day!"
Richard Dreyfuss - Let It Ride (1989).

| IP: Logged

James Peterson
Film Handler

Posts: 64
From: Williamsburg, VA, USA
Registered: Jun 2013

posted September 03, 2016 08:05 PM

Hi Janice, I didn't know that a Super 8 lens would work with a 16mm projector! Ha, I learn something every day.

My Elmo 16-CL was bought with the original 50mm lens (darn good f1.2 too!! and a strange Elmo "Telecine" 20mm lens that is an unusual f1.4!) The picture is waaaaaaay big from like 8ft lol. The lens is weird because it is very narrow--the stock Elmo mount is exactly the diameter of the whole lens! Looks like a long D battery.

I guess you could option up when you bought an Elmo?

Different approach than Bell and Howell as their 25mm(or is it 28? I'm too lazy to walk down to the basement now..lol) is the same diameter as the 50mm and has a tiny glass inside and is only an f1.9.

--------------------
James "Pete" Peterson II

Far too many machines--I'm sick

| IP: Logged

Mitchell Dvoskin
Expert Film Handler

Posts: 128
From: West Milford, NJ
Registered: Jun 2008

posted September 12, 2016 04:00 PM

8mm projectors were intended for home use, where there is a wide variety of distances and screen sizes, hence the zoom lens.

16mm was primarily intended for classroom use, where the 50mm lens would work almost perfectly from the back of the room to a screen in the front. Zoom lenses, and other focal lengths were available for those who needed them at additional cost.

The 20mm Elmo lens was intended to be used with the Elmo rear screen mirror attachment, for rear screen projection. It will work for front screen projection, but it is touchy to focus.

| IP: Logged
