Topic: Dual Optical Track

Melvin England
Jedi Master Film Handler

Posts: 707
From: Hull, East Yorkshire, UK
Registered: Feb 2016

posted August 28, 2017 01:10 PM

Send New Private Message

Edit/Delete Post

I have just been visually examining one of my 16mm optical films and noticed it actually has TWO tracks running side by side. This may be an obvious question, but does this mean it is a stereo print, or is it just to improve the hi fi quality of the mono?

Thinking about it......... is there a stereo 16mm projector on the market?

.

--------------------
"My name is for my friends!"

| IP: Logged

Maurice Leakey
Film God

Posts: 5895
From: Bristol. United Kingdom
Registered: Oct 2007

posted August 28, 2017 01:54 PM

Email Maurice Leakey

Send New Private Message

Edit/Delete Post

Melvin
The soundtrack is an RCA dual bilateral variable area track, it is mono.
I have never heard of a 16mm stereo projector.

--------------------
Maurice

| IP: Logged

Melvin England
Jedi Master Film Handler

Posts: 707
From: Hull, East Yorkshire, UK
Registered: Feb 2016

posted August 28, 2017 03:14 PM

Send New Private Message

Edit/Delete Post

Maurice,thank you for that. Could you possibly elaborate a little more,please? "An RCA dual bilateral variable area track." What does that mean exactly?

--------------------
"My name is for my friends!"

| IP: Logged

Maurice Leakey
Film God

Posts: 5895
From: Bristol. United Kingdom
Registered: Oct 2007

posted August 29, 2017 02:24 AM

Email Maurice Leakey

Send New Private Message

Edit/Delete Post

Melvin
That is what it's called. I can't really go into any more than that, but here is a link to a site which you may find interesting. It mentions this sound track.
http://www.widescreenmuseum.com/sound/soundsamples.htm

--------------------
Maurice

| IP: Logged

Fabrizio Mosca
Master Film Handler

Posts: 346
From: Milano, Italy
Registered: Jan 2004

posted August 29, 2017 03:06 AM

Email Fabrizio Mosca

Send New Private Message

Edit/Delete Post

16mm stereo films were available in Italy from SanPaoloFilm (some of their later releases, if I remember right Jesus Christ Superstar was one of them) and in their catalogue they advertised also stereo projectors from Eiki and Cinemec, but I never come across any of those projectors.

| IP: Logged

Dave Groves
Jedi Master Film Handler

Posts: 508
From: Southend on Sea, Essex, UK
Registered: Feb 2015

posted August 29, 2017 03:49 AM

Send New Private Message

Edit/Delete Post

This topic has come up on a number of occasions in the past but this is the first time I've heard actual prints and projectors being made available. Fabrizio, do you have any other info or pictures? I recall a firm did experiments with stereo but was under the impression that it was abandoned. John Whittle has a wealth of knowledge on this subject.

--------------------
Dave

| IP: Logged

Douglas Meltzer
Moderator

Posts: 4554
From: New York, NY, USA
Registered: Jun 2003

posted August 29, 2017 09:29 AM

Email Douglas Meltzer

Send New Private Message

Edit/Delete Post

Here's a thread about dual tracks from back in the day.

Doug

--------------------
I think there's room for just one more film.....

| IP: Logged

Fabrizio Mosca
Master Film Handler

Posts: 346
From: Milano, Italy
Registered: Jan 2004

posted August 29, 2017 02:22 PM

Email Fabrizio Mosca

Send New Private Message

Edit/Delete Post

Dave, yes, I have some pictures taken from an Italian fellow collector of a film he has (Romancing the stone) and from the SanPaoloFilm catalogue that advertized the projectors, but I have problems in uploading them on the forum (it says password problems).

| IP: Logged

Dave Groves
Jedi Master Film Handler

Posts: 508
From: Southend on Sea, Essex, UK
Registered: Feb 2015

posted August 29, 2017 03:32 PM

Send New Private Message

Edit/Delete Post

Fabrizio, if you can manage to upload the material I'd be most interested.

--------------------
Dave

| IP: Logged

Melvin England
Jedi Master Film Handler

Posts: 707
From: Hull, East Yorkshire, UK
Registered: Feb 2016

posted August 29, 2017 03:34 PM

Send New Private Message

Edit/Delete Post

Maurice and Doug - Thanks for the extra information regarding these various optical tracks. I am learning more about our hobby since being on this forum, than in the last 30 years !

Fabrizio - Thank you for bringing to ALL our attention the fact that stereo 16mm films and machines do exist. I can just imagine the look of surprise on Dave Groves face when he read about it!

--------------------
"My name is for my friends!"

| IP: Logged

Ian John
Film Handler

Posts: 54
From: South Wales United Kingdom
Registered: Dec 2005

posted August 29, 2017 08:04 PM

Email Ian John

Send New Private Message

Edit/Delete Post

Fabrizio, I just done a Google search for photo's of any 16mm stereo sound projector, interesting photos, as for stereo? Here is what came back.....

https://www.google.co.uk/search?q=photo+of+a+16mm+stereo+sound+projector?&tbm=isch&tbo=u&source=univ&sa=X&ved=0ahUKEwi84cGm3v3VAhWmOsAKHWdGBlEQsAQIJQ&biw=1280&bih=744

| IP: Logged

Maurice Leakey
Film God

Posts: 5895
From: Bristol. United Kingdom
Registered: Oct 2007

posted August 30, 2017 02:29 AM

Email Maurice Leakey

Send New Private Message

Edit/Delete Post

Inconclusive as regards stereo. But some old favourites on display!

--------------------
Maurice

| IP: Logged

Fabrizio Mosca
Master Film Handler

Posts: 346
From: Milano, Italy
Registered: Jan 2004

posted August 30, 2017 06:14 AM

Email Fabrizio Mosca

Send New Private Message

Edit/Delete Post

I finally made it (after discovering that the username is case sensitive)!
The following pictures have been taken from an Italian fellow collector some years ago (Gian, I hope you don't mind that I posted here [Wink]

[Wink]

)

The first two are the advertising in the SanPaoloFilm catalogue:

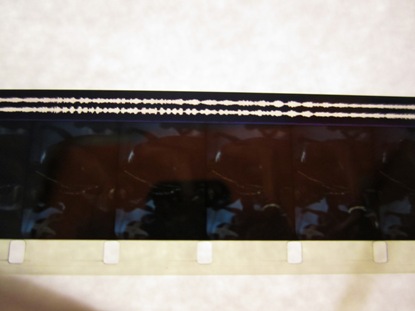

while this one is of the soundtrack (notice the difference between the two optical tracks):

I haven't seen any stereo projector up to now (Eiki are not so popular in Italy) and I think that there are very few around, considering that the film may also be screened without particular problems on the majority of projectors.

| IP: Logged

Dave Groves
Jedi Master Film Handler

Posts: 508
From: Southend on Sea, Essex, UK
Registered: Feb 2015

posted August 30, 2017 08:13 AM

Send New Private Message

Edit/Delete Post

Well, I've been running 16mm for over 50 years and I've read about Stereo experiments with 16mm theatres in mind, but it's the first time I've actually come across a picture of the object in question and a well known make to boot. Were these generally available or just a few test machines made for the Italian market? Did they make prints available (What?) and what year was this? I really can't believe I slept through all this? What a shame it never caught on? Possibly the cost? Thanks for this Fabrizio. Now where's my Italian phrasebook.

--------------------
Dave

| IP: Logged

Fabrizio Mosca
Master Film Handler

Posts: 346
From: Milano, Italy
Registered: Jan 2004

posted August 30, 2017 09:21 AM

Email Fabrizio Mosca

Send New Private Message

Edit/Delete Post

SanPaoloFilms was a firm that rented 16mm films for schools, religious entities and also for private use, and they were the official distributors for some films in Italy in 16mm. The titles ranged from religios ones to fiction and also for general entertainment (some of them I remember: 2001, Raiders, Goonies, Cocoon, Jesus Christ Superstar, Octopussy, Moonraker, Blade Runner, CE3K). They are not so easy to be found nowadays and prices may vary according to the quality and conditions, but usually they are over 300€, in some cases much over that amount.
Unfortunately it's quite difficult to find a pristine 16mm SPF print, as the latest ones were sent immediately to the rental offices and sometimes this led to green lines and spots on the film starting from the first run on the projectors.

I think they started to print stereo prints at the beginning of the '80s and only some titles were available in stereo (they were advertized as stereo in their list). As soon as I can, I will check in the catalogue of a friend of mine what titles were advertized as stereo.

Regarding the projectors I don't know how many were sold or produced. In 15 years collecting 16mm I've never come accross a 16mm stereo projector.

| IP: Logged

Maurice Leakey
Film God

Posts: 5895
From: Bristol. United Kingdom
Registered: Oct 2007

posted August 30, 2017 10:38 AM

Email Maurice Leakey

Send New Private Message

Edit/Delete Post

Perhaps Sampaolofilm were also responsible for the conversion of the Eiki projectors. It's most interesting to see an actual 16mm stereo soundtrack.
They seemed to have films from many distributors.
http://cinema16mm.blogspot.co.uk/2011/09/sampaolo-film-8788.html

--------------------
Maurice

| IP: Logged

Dave Groves
Jedi Master Film Handler

Posts: 508
From: Southend on Sea, Essex, UK
Registered: Feb 2015

posted August 30, 2017 03:27 PM

Send New Private Message

Edit/Delete Post

According to a comment on the site Sanpaolo closed in 1991. Wonder what happened to any films and equipment.

--------------------
Dave

| IP: Logged

Steven J Kirk
Jedi Master Film Handler

Posts: 873
From: Southern England
Registered: Apr 2008

posted August 30, 2017 05:09 PM

Email Steven J Kirk

Send New Private Message

Edit/Delete Post

I can absolutely confirm that 16mm optical stereo exists. I have an Elmo LX 2200 sitting in my front room right now that has stereo optical. I have yet to obtain a print but I have heard that GREASE and ROMANCING THE STONE 16mm optical stereo prints exist as two examples.

If you look at the ex-Sinatra estate machine currently on eBay US and look at the picture of the control panel you can clearly see the settings for stereo and left and right VUs.

http://www.ebay.com/itm/Elmo-16MM-2-KW-Xenon-Projector-LX-2200-Optical-Magnetic-Sound-Frank-Sinatra-Jr-/302311124731?hash=item466325aefb:g:6SgAAOSwVm5Y99t4

--------------------
VistaVision
Motion Picture High-Fidelity

| IP: Logged

Andrew Woodcock
Film God

Posts: 7477
From: Manchester Uk
Registered: Aug 2012

posted August 30, 2017 05:53 PM

Edit/Delete Post

An amazing machine Steven, for someone like Frank Sinatra, who had all of the room and hospitality to accommodate such a machine adequately and correctly.

I wonder how many semibreve's of New York, New York it took Frank in Vegas, to buy this beauty,.. not many i'm guessing! [Wink]

[Wink]

--------------------
"C'mon Baggy..Get with the beat"

| IP: Logged

Mike Blasko
Junior
Posts: 19
From: Cleveland, OH, USA
Registered: Apr 2017

posted August 30, 2017 10:58 PM

Email Mike Blasko

Send New Private Message

Edit/Delete Post

Steve Osborn from Reel Image in the U.S. can get new Stereo prints struck. I ordered a stereo short from him and in fact the print was bi-lateral. The LX-2200 is the easiest commercially available machine to reproduce stereo.

I understand some later Eiki 6000+ series have dual stereo pickups, alas mine did not. All others were custom jobs as I understand it.

| IP: Logged

Fabrizio Mosca
Master Film Handler

Posts: 346
From: Milano, Italy
Registered: Jan 2004

posted August 31, 2017 01:46 AM

Email Fabrizio Mosca

Send New Private Message

Edit/Delete Post

Dave, SPF started to sell the prints to the dealers/rental offices and to some collectors when they dismissed the film section (SanPaolo still exists as company, but deals with books and maybe dvds).

Regarding machines, I'm not sure they were distributors, as the advertising refers to other import companies (Eiki to Decima, Cinemec/Cinelabor were already in Italy).

| IP: Logged

Dave Groves
Jedi Master Film Handler

Posts: 508
From: Southend on Sea, Essex, UK
Registered: Feb 2015

posted August 31, 2017 03:54 AM

Send New Private Message

Edit/Delete Post

A question comes to mind. Why did Elmo produce such machines when stereo prints barely existed, or did buyers have access to prints from specialised almost one off sources. I see there's another machine for sale on Ebay at $5000+. I'd have to go back to work to afford it (and what would my wife say?).

--------------------
Dave

| IP: Logged

Paul Adsett
Film God

Posts: 5003
From: USA
Registered: Jun 2003

posted August 31, 2017 10:58 AM

Send New Private Message

Edit/Delete Post

16mm optical stereo must be great, but it still would not approach the frequency response of super 8mm magnetic stereo.

--------------------
The best of all worlds- 8mm, super 8mm, 9.5mm, and HD Digital Projection,
Elmo GS1200 f1.0 2-blade
Eumig S938 Stereo f1.0 Ektar
Panasonic PT-AE4000U digital pj

| IP: Logged

Andrew Woodcock
Film God

Posts: 7477
From: Manchester Uk
Registered: Aug 2012

posted August 31, 2017 12:29 PM

Edit/Delete Post

Spot on Paul.

--------------------
"C'mon Baggy..Get with the beat"

| IP: Logged

Steven J Kirk
Jedi Master Film Handler

Posts: 873
From: Southern England
Registered: Apr 2008

posted August 31, 2017 02:31 PM

Email Steven J Kirk

Send New Private Message

Edit/Delete Post

At one point AMC in the US experimented with 16mm theatres and used the Elmo LX. It is the period 1995 to 2002 time period in my guesstimate. Some of this info I have gleaned from this forum, also the film-tech pro forum and elsewhere. This, if you have been collecting 16mm theatrical trailers, is where you can find a bunch of titles in very good quality. Presumably there were feature prints but they may have been destroyed, the trailers survived. Any info on this period from first hand sources would be welcome. I'm trying to put this period together in my mind.

--------------------
VistaVision
Motion Picture High-Fidelity

| IP: Logged
