8mm Forum: Worm Gear Grease

»	8mm Forum » 16mm Forum » Worm Gear Grease

UBBFriend: Email this page to someone!

Author

Topic: Worm Gear Grease

Tom Photiou
Film God

Posts: 4837
From: Plymouth U.K
Registered: Dec 2003

posted May 18, 2018 03:14 PM

Just an odd observation i noticed with my own Eiki.

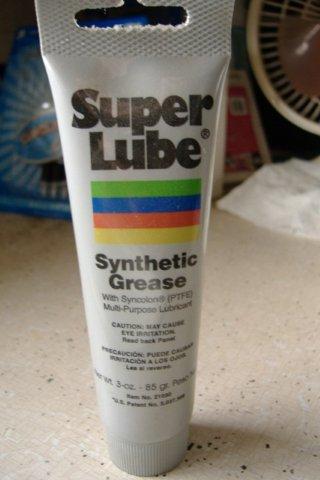

Currently, i use super lube but i also purchased molycote 33.

What i have noticed is this, i have used my Elf for around 20 features, when i took a look inside the other day the worm gear looks almost dry as if the grease has vanished. using my finger and a brush i put another application on as this is one part of the projector that obviously needs to be well greased. The service book states to check approx every 500 hours of use so to me this is a bit odd.
Theres no point in over greasing otherwise it just get thrown around the inside and makes a mess.
I have not as yet tried the molycote 33 on it so i dont know if this sticks to the parts any better. Whats your experience with this please?

| IP: Logged

Tom Photiou
Film God

Posts: 4837
From: Plymouth U.K
Registered: Dec 2003

posted May 19, 2018 08:37 AM

[ May 20, 2018, 02:51 AM: Message edited by: Tom Photiou ]

| IP: Logged

Richard C Patchett
Master Film Handler

Posts: 424
From: Flint Mi 48506
Registered: Dec 2007

posted May 19, 2018 11:10 AM

Greetings Tom
I have been using this for many years
In servicing projectors with no problems in its use.
Great stuff it lasts
I get a few back that i serviced and repaired
i got back one after 3 years and the grease was still there
Hope this helps
RC

--------------------
RC’s Classic Collection
16 mm Parts & Service
Elmo, Eiki, Bell & Howell +
http://www.rcsclassic16mm.com/

| IP: Logged

Tom Photiou
Film God

Posts: 4837
From: Plymouth U.K
Registered: Dec 2003

posted May 19, 2018 11:15 AM

Richard, Thank you, i have now seen your reply [Wink]

Richard, thank you also.could i be under greasing? If i put more on it just gets thrown around. I shall pop up an image sunday evening. [Wink]

[ October 04, 2018, 04:31 PM: Message edited by: Tom Photiou ]

| IP: Logged

Mark Mander
Phenomenal Film Handler

Posts: 1236
From: Dunstable ,Bedfordshire.
Registered: Jan 2005

posted May 19, 2018 11:35 AM

I just use multi purpose grease after cleaning up any new projector I buy,I just use a cotton bud to apply it and never put too much on as it will fly off everywhere as you say. I definitely would like to try the synthetic grease though if it does a better job,I've seen hardened grease over the years and how it can make a machine perform noisily but not what I've applied so far,Mark

--------------------
Elmo GS1200 1.0 lens
Elmo ST1200HD 1.1 lens
Sankyo 800 1.0 lens
Elmo 16CL
Elf NT1

| IP: Logged

David Hardy
Jedi Master Film Handler

Posts: 955
From: Johnshaven Village , Montrose, Scotland
Registered: Jan 2015

posted May 19, 2018 12:12 PM

Tom if my memory is correct i am sure Bill Parsons used Molycote 33 grease too on projector gears and other parts. [Smile]

--------------------
" My equipment's more important than your rats. "

| IP: Logged

Tom Photiou
Film God

Posts: 4837
From: Plymouth U.K
Registered: Dec 2003

posted May 19, 2018 12:26 PM

That is correct David [Wink]

| IP: Logged

Simon McConway
Phenomenal Film Handler

Posts: 1085
From: Doncaster, UK
Registered: Jun 2004

posted May 19, 2018 12:33 PM

I use Molykote DX. This is only on 16mm machines, as directed by the late Hugh Bell from Sound & Screen Service. But it does last ages once applied.

| IP: Logged

Tom Photiou
Film God

Posts: 4837
From: Plymouth U.K
Registered: Dec 2003

posted May 19, 2018 12:57 PM

Thank you Simon. [Wink]

| IP: Logged

Adrian Winchester
Film God

Posts: 2941
From: Croydon, London, UK
Registered: Aug 2004

posted May 19, 2018 08:53 PM

I've just checked the lubrication guide on the Eiki SSL/ESL Service manual and it shows these six different lubricants:
Silicone Grease
Molybdenum Disfulfide Grease
Silicone Oil #10
Silicone Oil #100
Silicone Oil #1000
Petroleum Oil

I don't suppose the few remaining service/repair experts would use quite so many now. I'm sure some of us would find it extremely useful to know what readily available products experts such as Richard would use today, on the parts for which the above lubricants are proposed. I presume the above-mentioned greases would be fine in relation to the top two of the above list?

--------------------
Adrian Winchester

| IP: Logged
