Topic: Bausch & Lomb Epidiascope - questions

Clinton Hunt
Jedi Master Film Handler

Posts: 845
From: Waharoa,North Island,New Zealand
Registered: May 2010

posted May 01, 2018 09:23 PM

Hey all,

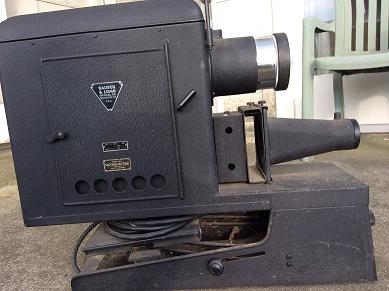

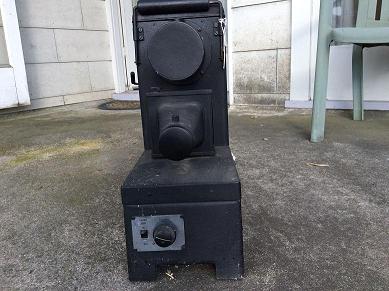

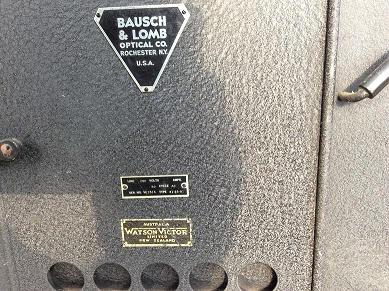

I have this Epidiascope model 809 that projects Magic Lantern Slides and also enlarges printed material for projection,like the O.H.P.'s do.
I think it's from the 1940's but not sure and can't find any information on it.It goes really well and has a nice bright sharp picture.
Does anyone know much about them?

Here's 2 demo videos ...
https://www.youtube.com/watch?v=riSiFavrA2g

https://www.youtube.com/watch?v=9ESDByUfnD4

[ May 01, 2018, 10:31 PM: Message edited by: Clinton Hunt ]

--------------------
Cheers from me in New Zealand :-)

| IP: Logged

Maurice Leakey
Film God

Posts: 5895
From: Bristol. United Kingdom
Registered: Oct 2007

posted May 02, 2018 02:46 AM

Epidiascopes were popular for use in the Forces and schools during the war as they could show slides and reproduce documents or still photographs.

They were eventually superseded by conventional slide and film strip projectors, and the back projection instruments.

I have a 1966-67 copy of Wallace Heaton's Blue Book in which they have a Ross Epidiascope which is similar to yours with the following description:-

"Covers opaque field of 6 x 6in. Set on runners with forward and backward travel of 8.5in., giving coverage of 14.5 x 6in. in stages. Diascope attachment takes 4 x 3.5in. slides. 17in. epl lens. 10.5in. diascope lens. Uses 1,000 watt mains voltage lamp, fan cooled. Price £125 0s 0d."

Extras were:-
1,000 lamp (state voltage) £2 15s 0d
35mm filmstrip attachment £34 0s 0d
2 x 2in. slide carrier for above £1 5s 0d

--------------------
Maurice
