Topic: Pathe baby take up

Michael Wright
Expert Film Handler

Posts: 184
From: Chorley, Lancashire, England
Registered: Dec 2008

posted January 21, 2019 07:19 AM

Just testing a new baby I've bought. Film doesn't want to coil up as it should. Any ideas?

| IP: Logged

Janice Glesser
Film Goddess

Posts: 3468
From: Sunnyvale, CA USA
Registered: Sep 2011

posted January 21, 2019 11:39 AM

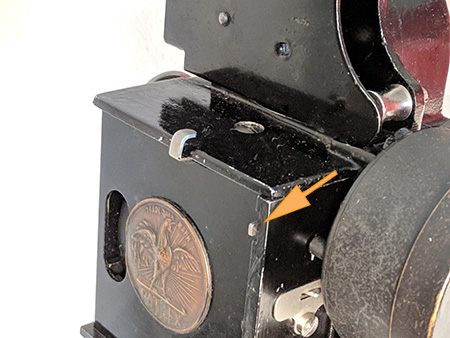

Hi Michael...I had an issue with the take-up chamber when I first got my Pathe Baby. Turned out the take-up hub had become frozen. I resolved it by taking the hub apart and cleaning and lubricating it.

Read towards the end of this thread:
http://8mmforum.film-tech.com/cgi-bin/ubb/ultimatebb.cgi?ubb=get_topic;f=9;t=000214

--------------------
Janice

"I'm having a very good day!"
Richard Dreyfuss - Let It Ride (1989).

| IP: Logged

Michael Wright
Expert Film Handler

Posts: 184
From: Chorley, Lancashire, England
Registered: Dec 2008

posted January 25, 2019 08:26 AM

Thanks Janice, will check that. I've also noticed that the sprocket hole is always visible at the top of? the screen, can this be adjusted?

| IP: Logged

Janice Glesser
Film Goddess

Posts: 3468
From: Sunnyvale, CA USA
Registered: Sep 2011

posted January 25, 2019 04:30 PM

Try adjusting the framer lever.

[ January 31, 2019, 02:47 AM: Message edited by: Janice Glesser ]

--------------------
Janice

"I'm having a very good day!"
Richard Dreyfuss - Let It Ride (1989).

| IP: Logged

Michael Wright
Expert Film Handler

Posts: 184
From: Chorley, Lancashire, England
Registered: Dec 2008

posted January 26, 2019 06:07 AM

Thanks again Janice. I didn't know what that lever was for!
