Author Topic: My new Eumig Mark S 810D HQS projector
Alex Reus
Junior
Posts: 30
From: Hartsdale, NY
Registered: Feb 2012


 - posted March 13, 2012 05:17 PM      Profile for Alex Reus   Email Alex Reus   Send New Private Message       Edit/Delete Post
I was so glad when my Eumig was delivered yesterday. This gal is so clean and like new. She looks like new even the microphone came in its original sealed package and the take-up reel had the cardboard insert still left on. But with that said I was disappointed when i saw that the regular 8mm film sprockets and the take-up spindle sleeve were missing. Not to mention the sound head which I assume sits behind the sound change-over switch, LOL. The sound head must have went bad early on in its life and the previous owners never repaired it, I guess. Other than that the Eumig sound great when you turn her on but I have yet to run film through it, since it only arrived last night.

I'm wondering if a sound head would be difficult to find and expensive?

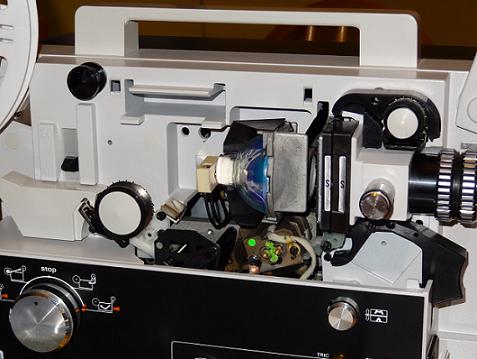

Here is a pic with the Lamphouse cover removed.

 -

 -

 |  IP: Logged

Allan Broadfield
Master Film Handler

Posts: 452
From: Bromley, Kent
Registered: Nov 2010


 - posted March 13, 2012 05:20 PM      Profile for Allan Broadfield   Author's Homepage   Email Allan Broadfield   Send New Private Message       Edit/Delete Post
Excellent! I got my 810D out the other day after some years in the cupboard, and after a clean up it ran very well.

 |  IP: Logged

Winbert Hutahaean
Film God

Posts: 5468
From: Nouméa, New Caledonia
Registered: Jun 2003


 - posted March 13, 2012 06:44 PM      Profile for Winbert Hutahaean   Email Winbert Hutahaean   Send New Private Message       Edit/Delete Post
Only if this projector still has the original 1.1 lens (as this is HQS series) then you have something worth because this lens is rare. I experience Eumig lens is sharper from Elmo.

Otherwise without the sound head and reg 8mm converter it is pretty useless.

My 2 cents though

--------------------
Winbert

 |  IP: Logged

Alex Reus
Junior
Posts: 30
From: Hartsdale, NY
Registered: Feb 2012


 - posted March 14, 2012 07:31 AM      Profile for Alex Reus   Email Alex Reus   Send New Private Message       Edit/Delete Post
Sure its missing the bits that makes this projector desirable but for now it runs super8 film smoothly. I just need to keep my eyes open for a sound head or another 810 for parts. Lets see what the budget will allow in the future.

 |  IP: Logged

Winbert Hutahaean
Film God

Posts: 5468
From: Nouméa, New Caledonia
Registered: Jun 2003


 - posted March 14, 2012 08:09 AM      Profile for Winbert Hutahaean   Email Winbert Hutahaean   Send New Private Message       Edit/Delete Post
So what lens is in there now? 1.1 or 1.2 or 1.4?

--------------------
Winbert

 |  IP: Logged

Alex Reus
Junior
Posts: 30
From: Hartsdale, NY
Registered: Feb 2012


 - posted March 14, 2012 08:26 AM      Profile for Alex Reus   Email Alex Reus   Send New Private Message       Edit/Delete Post
Eupronet 1.3 [Frown]

 |  IP: Logged

Steve Klare
Film Guy

Posts: 7016
From: Long Island, NY, USA
Registered: Jun 2003


 - posted March 14, 2012 08:40 AM      Profile for Steve Klare   Email Steve Klare   Send New Private Message       Edit/Delete Post
There are a lot of machines like this that have been taken out by the infamous worn drive disk. If you can grab one of those cheap it could provide a lot of transplant parts including a replacement sound head.

The head is right underneath the lamp. It's the part that has the white sleeved wire coming out of it and the green dots.

--------------------
All I ask is a wide screen and a projector to light her by...

 |  IP: Logged

Christian Schatz
Film Handler

Posts: 57
From: Germany
Registered: Feb 2012


 - posted March 14, 2012 08:47 AM      Profile for Christian Schatz   Email Christian Schatz   Send New Private Message       Edit/Delete Post
Nice projector! Here in Germany a company called "Quelle" build the same projectors with the licence of Eumig - under the name "Revue Lux". They were cheaper than the original Eumig projectors but had the same technic.

These are my two REVUE Lux 4004 Ton. They are identical with the EUMIG 7xx Series.

 -

For my claims they are good enough. But the lenses on this model are not good: 1.6/17-30mm. So i'm looking for better ones ... and a better light bulb with more than 75W. They can handle 100W.

--------------------
KINOTON FP30D w/ 1kW Xenon & FP30 w/ 1.6kW Xenon
BAUER SONOLUX II w/ 36V/400W Halogen
CARL ZEISS TK35/52 w/ 36V/400W Halogen
ELMO ST-1200D M&O 24V/250W Mod with Schneider Lens 1.1 / 11-25

 |  IP: Logged

Lee Mannering
Film God

Posts: 3216
From: The Projection Box
Registered: Nov 2006


 - posted March 14, 2012 10:01 AM      Profile for Lee Mannering     Send New Private Message       Edit/Delete Post
The model in back of your picture used to be sold by Dixons in the UK as well.

 |  IP: Logged

Winbert Hutahaean
Film God

Posts: 5468
From: Nouméa, New Caledonia
Registered: Jun 2003


 - posted March 14, 2012 10:12 AM      Profile for Winbert Hutahaean   Email Winbert Hutahaean   Send New Private Message       Edit/Delete Post
Alex, sorry to say but I think your machine had been butchered by someone.

Anyway, your Eumig 810DLux HQS is the high-end machine in Eumig line up, especially for dual gauge projector.

If it is Supragon Zoom f: 1.1 \ F: 12.5-25 mm then the latest I knew was sold over $217. That was the last price I found on Ebay (March 2011).

If it is Supragon Zoom f: 1.2 \ F: 12.5-25 mm may be it will be a bit less.

But if it is f 1.0, read this old post:

Eumig 1.0 lens!

It was EURO 150 only for the lens!

--------------------
Winbert

 |  IP: Logged

Christian Schatz
Film Handler

Posts: 57
From: Germany
Registered: Feb 2012


 - posted March 14, 2012 10:28 AM      Profile for Christian Schatz   Email Christian Schatz   Send New Private Message       Edit/Delete Post
Is it a 810D or a 810D LUX? Not all HQS Series had a 1.1 or 1.2 lens. Only the LUX model, i think.

This is from a 810D LUX HQS Manual:

"The high class exceptionally fast f/l.2 "Suprogon" zoom lens with its 12.5-25 mm focal length range plus
the ideal design of the lighting system yields about 35% more light flux on a 44% larger screen area than H.Q.S. models
with the standard 15-30 mm f/1.3 lens at the same projection distance."

-Download to PDF Manual-

--------------------
KINOTON FP30D w/ 1kW Xenon & FP30 w/ 1.6kW Xenon
BAUER SONOLUX II w/ 36V/400W Halogen
CARL ZEISS TK35/52 w/ 36V/400W Halogen
ELMO ST-1200D M&O 24V/250W Mod with Schneider Lens 1.1 / 11-25

 |  IP: Logged

Winbert Hutahaean
Film God

Posts: 5468
From: Nouméa, New Caledonia
Registered: Jun 2003


 - posted March 14, 2012 10:46 AM      Profile for Winbert Hutahaean   Email Winbert Hutahaean   Send New Private Message       Edit/Delete Post
Yes Chris you are right. Only Lux model did come with that high quality lens. I don't know which machine that Alex has now since his photo is in low resolution.

Maybe Alex can confirm?

--------------------
Winbert

 |  IP: Logged

Alex Reus
Junior
Posts: 30
From: Hartsdale, NY
Registered: Feb 2012


 - posted March 14, 2012 06:23 PM      Profile for Alex Reus   Email Alex Reus   Send New Private Message       Edit/Delete Post
Wow I have been confused so since I got this projector. Since this projector is missing the sound change-over switch I assumed [Eek!] the sound head was also missing but Steve pointed out that it,s under the lamp, well sure enough it's their. Then I slowly read the model name on the projector, a Mark S810 High Quality Sound (super Single). This is not a D model. This only does Super 8mm so no switch over to 8mm and yes it has the 1.3 lens.
MAn do I feel [Embarrassed] .

Winbert please begin rolling your eyes in disgust.

The good news it's all in one piece and in wonderful condition.
[Smile]

 |  IP: Logged

Adrian Winchester
Film God

Posts: 2941
From: Croydon, London, UK
Registered: Aug 2004


 - posted March 14, 2012 08:30 PM      Profile for Adrian Winchester   Email Adrian Winchester   Send New Private Message       Edit/Delete Post
Congratulations on your find - It's very rare to see one of these in 'like new' condition, and it didn't seem to make sense that a pristine projector should have some key parts missing!

--------------------
Adrian Winchester

 |  IP: Logged

Alex Reus
Junior
Posts: 30
From: Hartsdale, NY
Registered: Feb 2012


 - posted March 15, 2012 09:42 AM      Profile for Alex Reus   Email Alex Reus   Send New Private Message       Edit/Delete Post
Thanks Adrian it's a great machine.

I played my first sound super 8 last night,which I bought for the family to see, Sleeping Beauty Once upon a dream. The film is only 7 min. long but it has good color and the sound from the Eumig was very good. This is fun!

 |  IP: Logged

Vincent Zabbia
Master Film Handler

Posts: 372
From: Montrose, NY
Registered: Feb 2011


 - posted March 15, 2012 03:43 PM      Profile for Vincent Zabbia   Author's Homepage   Email Vincent Zabbia   Send New Private Message       Edit/Delete Post
hi Alex. I used to live in Hartsdale..Near the County Center.. Do you remember Crazy Eddies? I own the Eumig 810D LUX. I bought it brand new and it did come with the 1.2 lens...Great projector. Very Sharp image, Better than any of my Elmo projectors. Only wish it had a brighter bulb and larger reel capicity...

--------------------
Vincent Zabbia

 |  IP: Logged

Alex Reus
Junior
Posts: 30
From: Hartsdale, NY
Registered: Feb 2012


 - posted March 15, 2012 04:18 PM      Profile for Alex Reus   Email Alex Reus   Send New Private Message       Edit/Delete Post
I sure do remember Crazy Eddies and those comercials. I live only a few blocks from their. Wonderful to hear that the Eumig has worked for you all these years.

A pleasure to talk to you.

 |  IP: Logged

Steve Klare
Film Guy

Posts: 7016
From: Long Island, NY, USA
Registered: Jun 2003


 - posted March 15, 2012 04:32 PM      Profile for Steve Klare   Email Steve Klare   Send New Private Message       Edit/Delete Post
I went to the Crazy Eddies in Carle Place. You could get a good price there but you needed to show up ready to haggle. Their list prices weren't always as innnnnsaaaane as you'd expect!

They never dealt in cameras or projectors because in those days those were "photo" items and you bought them in "The Camera Department", not "Consumer Electronics" at Crazy Eddies.

If they were still with us you would buy your camera or projector there because it's all "Consumer Electronics" now.

(How I'd love to walk into a store that smells of Kodak chemicals these days!)

--------------------
All I ask is a wide screen and a projector to light her by...

 |  IP: Logged

Christian Schatz
Film Handler

Posts: 57
From: Germany
Registered: Feb 2012


 - posted April 10, 2012 12:32 PM      Profile for Christian Schatz   Email Christian Schatz   Send New Private Message       Edit/Delete Post
I just won an last minute auction on Ebay! I'm very happy hehe. [Big Grin]

EUMIG Mark S 810D LUX HQS --> 20€ incl. shipping.

Because it was a last minute auction and nothing was written in the
description, at the moment i can not say if it's the Supragon 1.1
12.5-25 or 1.2 lens. But on the picture i can see that's one of them.
Description says only: lamp ok, motor runs, dusty. Let's hope that
it's the 1.1 AND that the Std8 sprockets & film guide is inside the
lamp-cover.

--------------------
KINOTON FP30D w/ 1kW Xenon & FP30 w/ 1.6kW Xenon
BAUER SONOLUX II w/ 36V/400W Halogen
CARL ZEISS TK35/52 w/ 36V/400W Halogen
ELMO ST-1200D M&O 24V/250W Mod with Schneider Lens 1.1 / 11-25

 |  IP: Logged

Alex Reus
Junior
Posts: 30
From: Hartsdale, NY
Registered: Feb 2012


 - posted April 10, 2012 01:16 PM      Profile for Alex Reus   Email Alex Reus   Send New Private Message       Edit/Delete Post
Congratulations...it's a great projector

 |  IP: Logged

Thor Andre Karlsen
Film Handler

Posts: 50
From: Fredrikstad, Norway
Registered: Apr 2012


 - posted April 10, 2012 02:30 PM      Profile for Thor Andre Karlsen   Email Thor Andre Karlsen   Send New Private Message       Edit/Delete Post
Alex wouldn't your 810 run std 8mm just fine if you got sprockets and film guide from somewhere? my Bolex SM80 wont since the counter sits over the rear sprocket, I fund out after thinking about finding that for my SM80.

 |  IP: Logged

Winbert Hutahaean
Film God

Posts: 5468
From: Nouméa, New Caledonia
Registered: Jun 2003


 - posted April 10, 2012 04:42 PM      Profile for Winbert Hutahaean   Email Winbert Hutahaean   Send New Private Message       Edit/Delete Post
quote:
20€ incl. shipping.
How much is the shipping cost in Europe for heavy stuff like a projector ....?? [Confused]

If Chris is not doing a typing error...then you basically get a FREE projector!

Just for the lens you already get more than $75!

--------------------
Winbert

 |  IP: Logged

Christian Schatz
Film Handler

Posts: 57
From: Germany
Registered: Feb 2012


 - posted April 11, 2012 04:15 AM      Profile for Christian Schatz   Email Christian Schatz   Send New Private Message       Edit/Delete Post
Hello,

shipping for the Eumig is 6,50€. Most S8 projectors can be
shipped in Germany between 5 and 15€ according to the weight
and express company. And yes, basically i will get a free
projector. That's why i'm so happy! [Big Grin] Even when the projector
is dead, not working, i think it'll be one of the best deals i ever
made. [Wink]

Here is it: Ebay Auction

--------------------
KINOTON FP30D w/ 1kW Xenon & FP30 w/ 1.6kW Xenon
BAUER SONOLUX II w/ 36V/400W Halogen
CARL ZEISS TK35/52 w/ 36V/400W Halogen
ELMO ST-1200D M&O 24V/250W Mod with Schneider Lens 1.1 / 11-25

 |  IP: Logged

Alex Reus
Junior
Posts: 30
From: Hartsdale, NY
Registered: Feb 2012


 - posted April 13, 2012 10:39 PM      Profile for Alex Reus   Email Alex Reus   Send New Private Message       Edit/Delete Post
Thor

"Alex wouldn't your 810 run std 8mm just fine if you got sprockets and film guide from somewhere?"

The small and large sprokets along with the film gate can be changed but the spindles cannot and the the 810 are missing the sound changeover switch.

 |  IP: Logged

frank arnstein
Jedi Master Film Handler

Posts: 534
From: Gold Coast. Australia
Registered: Jan 2005


 - posted April 14, 2012 06:26 AM      Profile for frank arnstein   Author's Homepage   Email frank arnstein   Send New Private Message       Edit/Delete Post
Alex and Thor,

The Super 8 Eumigs have a 2 fingered claw that will only fit Super 8 film. The Dual 8 Eumigs have a 1 fingered claw with a very thin pin that can play both Super 8 and Standard 8.

So its not just a matter of sprockets and film gate change over, even if you could overcome the Super 8mm spindles issue. The attempted use of this projector on Standard 8mm film would result in damage to the film by the claw.

You could fit a 1 pin claw from a dual machine and then it would be Ok to play both guages.

Eumig 800 series dedicated Super 8 projectors are very good for playing old super 8 film because the pulldown load on the film is spread over 2 frames so it's much kinder on delicate old film. Make sure its always Super 8mm film that you put through it.

dogtor frankarnstein [Wink]

--------------------
At Projector Heaven the Focus is always on Detail.

____
[o:/o]<|=- dogtor@projectorheaven.com.au
//``\\
-----------------------------------------------

 |  IP: Logged
