Author Topic: Attn Leon Norris or anybody else TRV Problem
Jim Schrader
Phenomenal Film Handler

Posts: 1628
From: Savage, MN, USA
Registered: Jun 2003


 - posted August 20, 2019 10:50 AM      Profile for Jim Schrader   Author's Homepage     Send New Private Message       Edit/Delete Post
Leon, the motor hums very quietly no difference in sound variation, keep in mind this was rebuilt earlier this year.

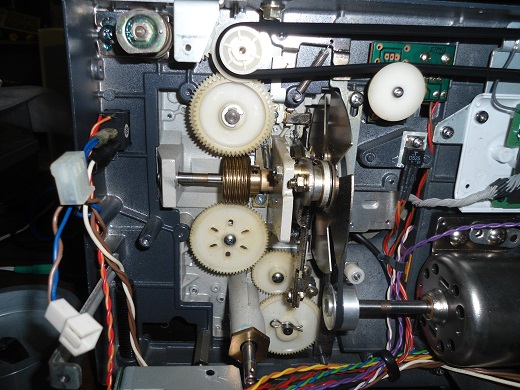

Phil, not seeing what you described as a half moon blade here is behind the transformer if you see it please open it up in paint circle it and repost it or email me. Someone else told me to check the gears bbehind there too all look good.
 -

--------------------
jim schrader
"Let's see “do I have that title already?"

 |  IP: Logged

Phil Murat
Jedi Master Film Handler

Posts: 671
From: Villeneuve St Georges, France
Registered: Dec 2015


 - posted August 20, 2019 11:52 PM      Profile for Phil Murat   Email Phil Murat   Send New Private Message       Edit/Delete Post
You are right Jim , there's no (abvious) sensor observed in this area.

-Could you report how many wires are coming to Main Motor (and wires colors too) ?

-Concerning the small rocker arm (Which is swingging in Video Nr3), is this rocker arm linked to an electrical device ?

 |  IP: Logged

Jim Schrader
Phenomenal Film Handler

Posts: 1628
From: Savage, MN, USA
Registered: Jun 2003


 - posted August 21, 2019 07:27 AM      Profile for Jim Schrader   Author's Homepage     Send New Private Message       Edit/Delete Post
Phil the "swinging arm" is not linked to anything electrical its just attached to a small spring that gives it flexibility.

--------------------
jim schrader
"Let's see “do I have that title already?"

 |  IP: Logged

Phil Murat
Jedi Master Film Handler

Posts: 671
From: Villeneuve St Georges, France
Registered: Dec 2015


 - posted August 23, 2019 02:00 AM      Profile for Phil Murat   Email Phil Murat   Send New Private Message       Edit/Delete Post
Jim, according to Van Eck description, this machine is showing an "electronically governed DC magnetic motor".

We know now that there is no sensor on the claw shaft.
Logically, you could find something fitted at the end of the motor :

- an Infra red sensor (with a coding wheel)
or
- a Tacho generator
(In any cases , logically you could also find 4 wires coming to the motor.)

Did you replace motor belt ?

If yes, did you install a genuine belt ?
If yes, is it a reinforced micro "V" belt (like elmo GS1200) ?

Here is Van Eck explanations concerning "GS1200" typical Belt grade :

"New belt, replacing your broken or stretched belt:
The motor belt is a quality belt for Elmo GS-1200 (all versions). Brand product of current production. Given specifically for Elmo GS-1200 projectors from us in order, highest durability. Belt of rugged polyurethane with embedded special fiberglass-tension cords. We recommend the use of this particular form of V-belts, because here only the geometry to 100% corresponds to what Elmo has provided for these devices."

In summary, this means that installing this belt grade will improve speed steadiness too.

 |  IP: Logged

Jim Schrader
Phenomenal Film Handler

Posts: 1628
From: Savage, MN, USA
Registered: Jun 2003


 - posted August 23, 2019 06:42 AM      Profile for Jim Schrader   Author's Homepage     Send New Private Message       Edit/Delete Post
Phil this is what was on there when I changed it to the square belt still have to get back on the color of wires and how many.

[ August 23, 2019, 10:55 AM: Message edited by: Jim Schrader ]

--------------------
jim schrader
"Let's see “do I have that title already?"

 |  IP: Logged

Phil Murat
Jedi Master Film Handler

Posts: 671
From: Villeneuve St Georges, France
Registered: Dec 2015


 - posted August 23, 2019 08:49 AM      Profile for Phil Murat   Email Phil Murat   Send New Private Message       Edit/Delete Post
Ah, Ok Jim, I understand a tipical "V" belt was installed on this machine.If you kept it, l suggest you to re install it if it is serviceable yet (normaly this kind of belt is extra long life) and make new tests.

Let us know

 |  IP: Logged

Leon Norris
Jedi Master Film Handler

Posts: 958
From: Elkins Park, PA, USA
Registered: Jun 2012


 - posted August 23, 2019 10:11 AM      Profile for Leon Norris   Email Leon Norris   Send New Private Message       Edit/Delete Post
Try replacing the v belt! Like the GS1200 belt! That belt does not stretch! Do that and test it!

 |  IP: Logged

Phil Murat
Jedi Master Film Handler

Posts: 671
From: Villeneuve St Georges, France
Registered: Dec 2015


 - posted August 23, 2019 10:31 AM      Profile for Phil Murat   Email Phil Murat   Send New Private Message       Edit/Delete Post
hello Leon,

Do you know what are Elmo machines fitted with plyurthane "V" belt at the origin ?
These belts insure a very good transmission for a long !

May be the Gs 1200 ref can fit with other ones ....

 |  IP: Logged

Jim Schrader
Phenomenal Film Handler

Posts: 1628
From: Savage, MN, USA
Registered: Jun 2003


 - posted August 23, 2019 10:56 AM      Profile for Jim Schrader   Author's Homepage     Send New Private Message       Edit/Delete Post
I did keep it will put it back on not sure how old it is.

--------------------
jim schrader
"Let's see “do I have that title already?"

 |  IP: Logged

Mathew James
Jedi Master Film Handler

Posts: 740
From: Hamilton, Ontario, Canada
Registered: Dec 2014


 - posted August 23, 2019 12:08 PM      Profile for Mathew James   Email Mathew James   Send New Private Message       Edit/Delete Post
i recently watch a video, and forget where i saw it now.... and the fella restored his belts by boiling them in water in the microwave. It was a belt for a cassette deck that was stretched, it gave me the idea that one might be able to do the same for super 8 belts that are not gone to black goop but are simply stretched.
...don't try this yet jim until we learn more, but i thought i'd throw the idea out there in case anyone knows what i mean...

btw- i think this is a belt problem as well. i have seen this if i don't use the square belt on one of my elmos...

--------------------
--
Cheers,
Matt 📽

 |  IP: Logged

Jim Schrader
Phenomenal Film Handler

Posts: 1628
From: Savage, MN, USA
Registered: Jun 2003


 - posted August 23, 2019 08:17 PM      Profile for Jim Schrader   Author's Homepage     Send New Private Message       Edit/Delete Post
All the trouble began with the v belt on thatS why I changed it out so changing it back wouldnt help I think.

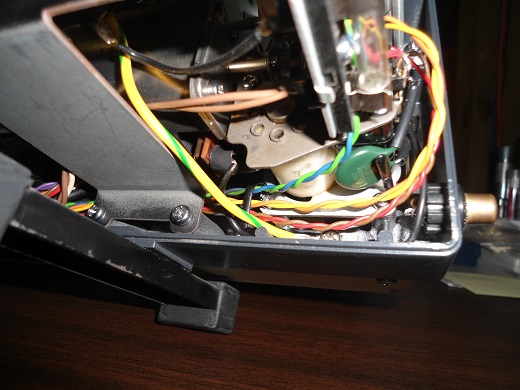

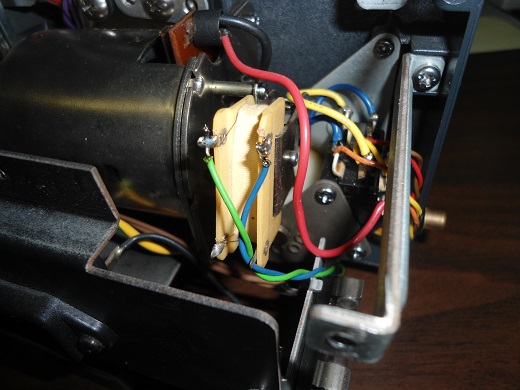

Phil here is some pictures of the wires going to the motor
 -
 -

--------------------
jim schrader
"Let's see “do I have that title already?"

 |  IP: Logged

Phil Murat
Jedi Master Film Handler

Posts: 671
From: Villeneuve St Georges, France
Registered: Dec 2015


 - posted August 24, 2019 05:41 AM      Profile for Phil Murat   Email Phil Murat   Send New Private Message       Edit/Delete Post
Thanks Jim for your pictures.

At a first sight , I only see 2 wires (RED/Black) comming from motor.
May be there are others hidden, I don't know.

I suggest you to perform cleaning of speed potentiometer and toggle switch (16 / 25), connectors as necessary, installed on a small circuit behind upper belt.

Try to use a very powerfull contact cleaner (Cleaner & Lube fluid, spray gun).

You can soak and actuate them in a same time.
As the small circuit is removed, take the opportunity to make a closed inspection of its solderings and tracks (magnifier x10).

It should be interesting to get a schematic & WD for this machine.

Let us know

 |  IP: Logged

Leon Norris
Jedi Master Film Handler

Posts: 958
From: Elkins Park, PA, USA
Registered: Jun 2012


 - posted August 24, 2019 09:30 AM      Profile for Leon Norris   Email Leon Norris   Send New Private Message       Edit/Delete Post
Jim, take off the motor generator and clean it! It will act up if dirty or going bad! The motor generator is on the motor! It has two wires soldered to it! Clean with contact cleaner!

 |  IP: Logged

Jim Schrader
Phenomenal Film Handler

Posts: 1628
From: Savage, MN, USA
Registered: Jun 2003


 - posted August 25, 2019 08:44 AM      Profile for Jim Schrader   Author's Homepage     Send New Private Message       Edit/Delete Post
Leon, where about is the motor generator what color wires go to it from the pictures?
Phil, is the speed potentiometer and toggle switch (16 / 25), connectors in the area i circled?
 -

--------------------
jim schrader
"Let's see “do I have that title already?"

 |  IP: Logged

Phil Murat
Jedi Master Film Handler

Posts: 671
From: Villeneuve St Georges, France
Registered: Dec 2015


 - posted August 25, 2019 08:53 AM      Profile for Phil Murat   Email Phil Murat   Send New Private Message       Edit/Delete Post
Yes Jim, normaly this is the "speed adjustment" knob board.

 |  IP: Logged

Leon Norris
Jedi Master Film Handler

Posts: 958
From: Elkins Park, PA, USA
Registered: Jun 2012


 - posted August 25, 2019 09:10 AM      Profile for Leon Norris   Email Leon Norris   Send New Private Message       Edit/Delete Post
Jim its on the rear end of the motor! The front end has the pulley on it! Has two wires soldered to it!

 |  IP: Logged

Jim Schrader
Phenomenal Film Handler

Posts: 1628
From: Savage, MN, USA
Registered: Jun 2003


 - posted September 05, 2019 12:10 PM      Profile for Jim Schrader   Author's Homepage     Send New Private Message       Edit/Delete Post
Phil took parts off to clean but don’t have a magnifying to check connections just eyed them.

--------------------
jim schrader
"Let's see “do I have that title already?"

 |  IP: Logged

Leon Norris
Jedi Master Film Handler

Posts: 958
From: Elkins Park, PA, USA
Registered: Jun 2012


 - posted September 05, 2019 12:46 PM      Profile for Leon Norris   Email Leon Norris   Send New Private Message       Edit/Delete Post
Jim, did you check the motor generator? Let me know!

 |  IP: Logged

Jim Schrader
Phenomenal Film Handler

Posts: 1628
From: Savage, MN, USA
Registered: Jun 2003


 - posted September 05, 2019 01:42 PM      Profile for Jim Schrader   Author's Homepage     Send New Private Message       Edit/Delete Post
Leon Not yet, will check it soon and no film yet.

--------------------
jim schrader
"Let's see “do I have that title already?"

 |  IP: Logged

Leon Norris
Jedi Master Film Handler

Posts: 958
From: Elkins Park, PA, USA
Registered: Jun 2012


 - posted September 05, 2019 02:02 PM      Profile for Leon Norris   Email Leon Norris   Send New Private Message       Edit/Delete Post
Keep me updated Jim!

 |  IP: Logged

Janice Glesser
Film Goddess

Posts: 3468
From: Sunnyvale, CA USA
Registered: Sep 2011


 - posted September 05, 2019 06:17 PM      Profile for Janice Glesser     Send New Private Message       Edit/Delete Post
Just an observation guys....Why is this thread in the General Yak Forum? It is definitely related to 8mm projector repair so I suggest it should belong in the 8mm Forum.

[ September 05, 2019, 08:12 PM: Message edited by: Janice Glesser ]

--------------------
Janice

"I'm having a very good day!"
Richard Dreyfuss - Let It Ride (1989).

 |  IP: Logged

Douglas Meltzer
Moderator

Posts: 4554
From: New York, NY, USA
Registered: Jun 2003


 - posted September 09, 2019 03:03 PM      Profile for Douglas Meltzer   Email Douglas Meltzer   Send New Private Message       Edit/Delete Post
Janice,

I agree. The thread has been moved.

Doug

--------------------
I think there's room for just one more film.....

 |  IP: Logged
