Jim. Paul said you have to take the chassis out to adjust the screw.

| IP: Logged

Paul Repar
Junior
Posts: 14
From: Chicago,Illinois
Registered: Apr 2006

posted September 20, 2019 08:32 AM

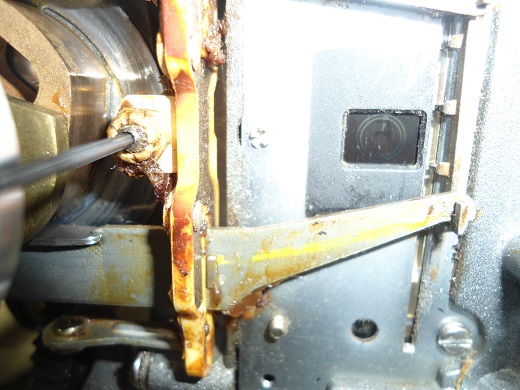

Jim,Exactly how you have it in the photo,the little notch out above the hole in your photo on the shutter blade,there is likely a fire shroud covering easier access to that adjustment screw,if you remove that,you will have access using the bristol spline blade to make the adjustment,there is photos of this procedure on "how to" in some of the B&H service manuals,but yes you can do it with the chassis in or chassis out,its trial and error sometimes.

| IP: Logged

Jim Schrader
Phenomenal Film Handler

Posts: 1628
From: Savage, MN, USA
Registered: Jun 2003

posted September 22, 2019 08:20 PM

Paul, I took out the chassis to do the adjustments I lined up the claw on the downward stroke and adjusted the claw so it poked through the gate more but I cannot get it to sync up very well, on the upstroke seems to grab the film and push it up so I backed off the set screw now it doesn’t seem to grab the sprockets I tried adjusting the framer too but no luck.

--------------------
jim schrader
"Let's see “do I have that title already?"

| IP: Logged

Paul Repar
Junior
Posts: 14
From: Chicago,Illinois
Registered: Apr 2006

posted September 23, 2019 07:52 PM

Jim,I think you may have over compensated that adjustment too much,It will take a few tries to adjust the 3 claw,that adjustment needs to be turned slightly to get the claw just right to grab the perfs,so try to go back where you started and give it a slight turn.Its best to use the service manual to get the right height of the 3 claw in the channel of the gate.Invest in a multi feeler gauge to measure the clearance.After this use your countdown leader and check the frame alignment by turning your pulley wheel,if it pulls the perfs by tripping the loop restorer your timing is still off.It will take a few tries but you will get it.

| IP: Logged

Jim Schrader
Phenomenal Film Handler

Posts: 1628
From: Savage, MN, USA
Registered: Jun 2003

posted September 28, 2019 10:11 AM

Paul I noticed you measured something at .015 was that for the loop restorer? what am I measuring I do already have one of these as I use them to measure points in my distributor on my old car. also i have heard one can use a Bell & Howell tool part number S-552-1-N1 would this be necessary to have? thanks f or all your input and help so far.

--------------------
jim schrader
"Let's see “do I have that title already?"

| IP: Logged

Paul Repar
Junior
Posts: 14
From: Chicago,Illinois
Registered: Apr 2006

posted September 29, 2019 06:15 AM

Jim,Measuring the loop restorer "L" bracket distance of .015 spacing between the bracket end and the loop restorer cam that is on the right side of the worm gear.The feeler gauge helps in the spacing which is critical,if spacing is not proper,the "L" bracket will clip the loop restorer cam causing you to lose the film loop,which means this needs to be adjusted,if you download a service manual this will be explained in depth.

| IP: Logged

Richard C Patchett
Master Film Handler

Posts: 424
From: Flint Mi 48506
Registered: Dec 2007

posted September 29, 2019 09:41 AM

Greetings Jim
If you do happen to replace the worm
Be sure that you also replace the
015533 Lower Sprocket Gear 1575/1580/2580
This gear usually cracks over time
You can tell if the film bunches up, just before the sound drum. with or without a new worm
save time and replace it
RC
Thanks Maurice for the referral

--------------------
RC’s Classic Collection
16 mm Parts & Service
Elmo, Eiki, Bell & Howell +
http://www.rcsclassic16mm.com/

| IP: Logged

Maurice Leakey
Film God

Posts: 5895
From: Bristol. United Kingdom
Registered: Oct 2007

posted September 29, 2019 11:04 AM

Richard's comments remind me what my engineer said some time ago. I have two Bell & Howell Slot-Loaders, a 1680B and a 1680G.

He said that the internal mechanism differs between the auto-thread models and the slot-loaders. In the former, the worm drives direct to the two gears, each connecting to the two sprockets. Whereas in the slot-loader, the spacing is different, hence the need for an extra small gear. When changing a worm he always changes this small gear.

I assume that this is what Richard is referring to.

--------------------
Maurice

| IP: Logged

Jim Schrader
Phenomenal Film Handler

Posts: 1628
From: Savage, MN, USA
Registered: Jun 2003

posted September 29, 2019 01:14 PM

Ok I did order that as well and reinstalled the chassis and ran the unit that’s when I discovered the claw was not in time It ran real smooth other wise just gotta get the timing in place, thanks

[ September 29, 2019, 09:11 PM: Message edited by: Jim Schrader ]

--------------------
jim schrader
"Let's see “do I have that title already?"

| IP: Logged
