Eumig Mark S 710d speed control unresponsive

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • Maurice Leakey
    replied
    Stuart
    On Amazon, a set.
    Not too sure of their size.
    us pro 1822 4 Piece 9" NI-FE Finish Circlip Plier Set in Zip Case : Amazon.co.uk: DIY & Tools

    Leave a comment:


  • Stuart Budd
    replied
    Thanks Joseph. Any ideas on where to get one for the tiny clips. All I can find are tools for larger clips.

    Leave a comment:


  • Joseph Banfield
    replied
    To answer your question: For easy removal circlips require a special tool. They look like a pair of pliers with points at the ends. You insert the points into the end of a circlip and squeeze, which spreads the clip slightly and simply pull the pliers toward you and the clip comes off.

    Leave a comment:


  • Stuart Budd
    replied

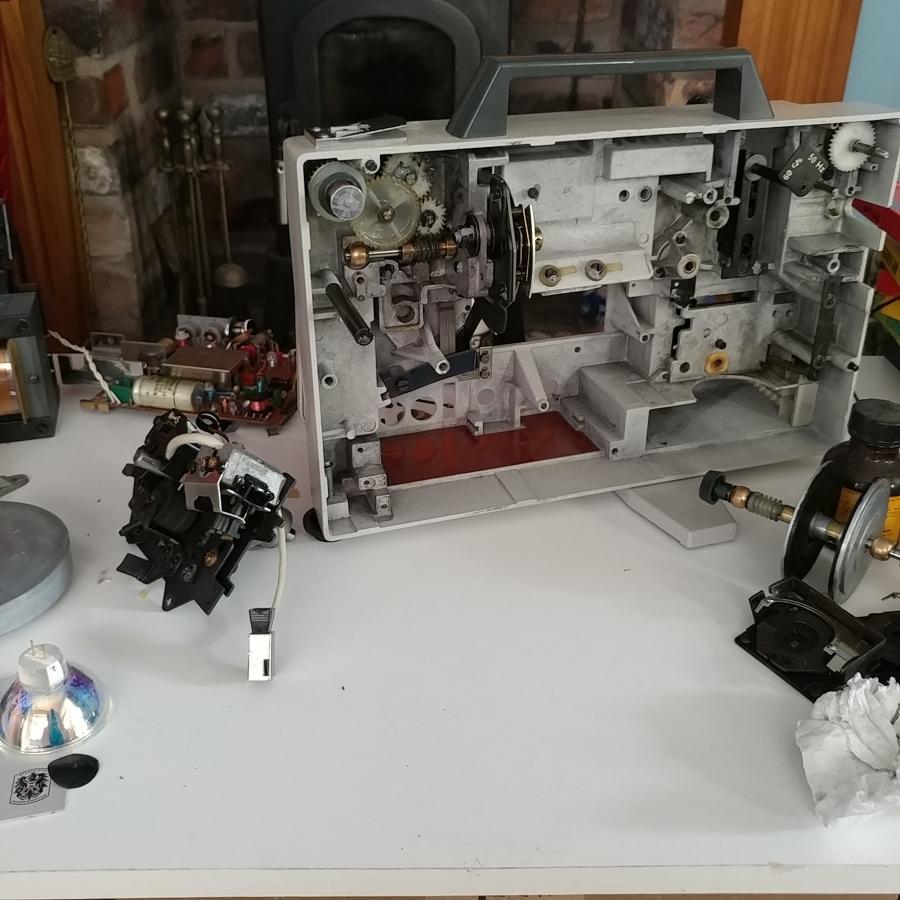

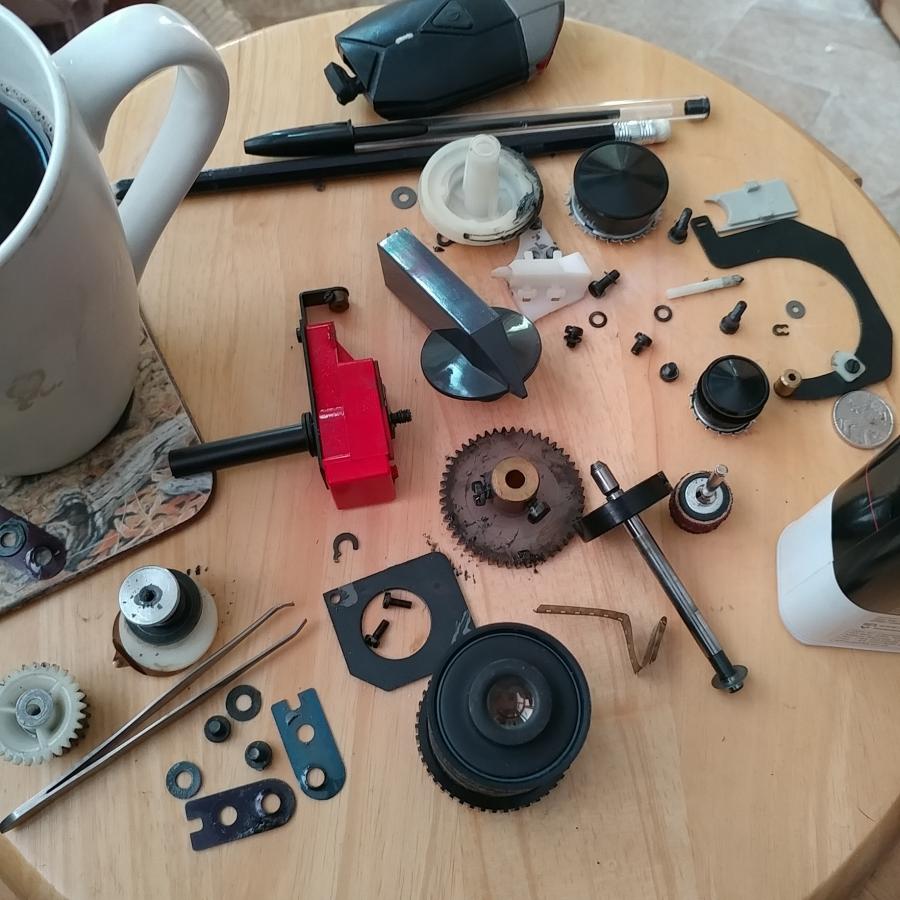

    As an update. Further down the rabbit hole. Got back from work last night and thought far too dirty to put back like that and a trapped piece of film, pic 1, so carried on with the screw driver. Circlips are a pain, any advice there would be helpful. Blew off all the big debris, now just hand cleaning and assembly (easy peasy ). Glad it's cleaner though as wouldn't have wanted to put a film through it. Claw, shutter assembly left in situ and just compressed air cleaned.
    First two picks before. Second after and the begining as assembly! No rush .
    Click image for larger version

Name:	20210813_012020~2.jpg
Views:	277
Size:	111.8 KB
ID:	40401Click image for larger version

Name:	20210813_001355~2.jpg
Views:	256
Size:	96.2 KB
ID:	40402Click image for larger version

Name:	20210813_110607.jpg
Views:	259
Size:	92.3 KB
ID:	40403Click image for larger version

Name:	20210813_110516.jpg
Views:	260
Size:	101.6 KB
ID:	40404Good thing is, managed to separeate the electronic from the mechanics.
    Don't think I'll get another sound projector. The P8's are fine and my old Ricoh for Super8 (well both).

    Leave a comment:


  • Stuart Budd
    replied
    Hi Joseph, luckily those bits are one of the feet. However, in transport the transport screws were not in transport mode. So I guess it would have had a bump or two. Lee, I've gone with silicone grease.

    Leave a comment:


  • Joseph Banfield
    replied

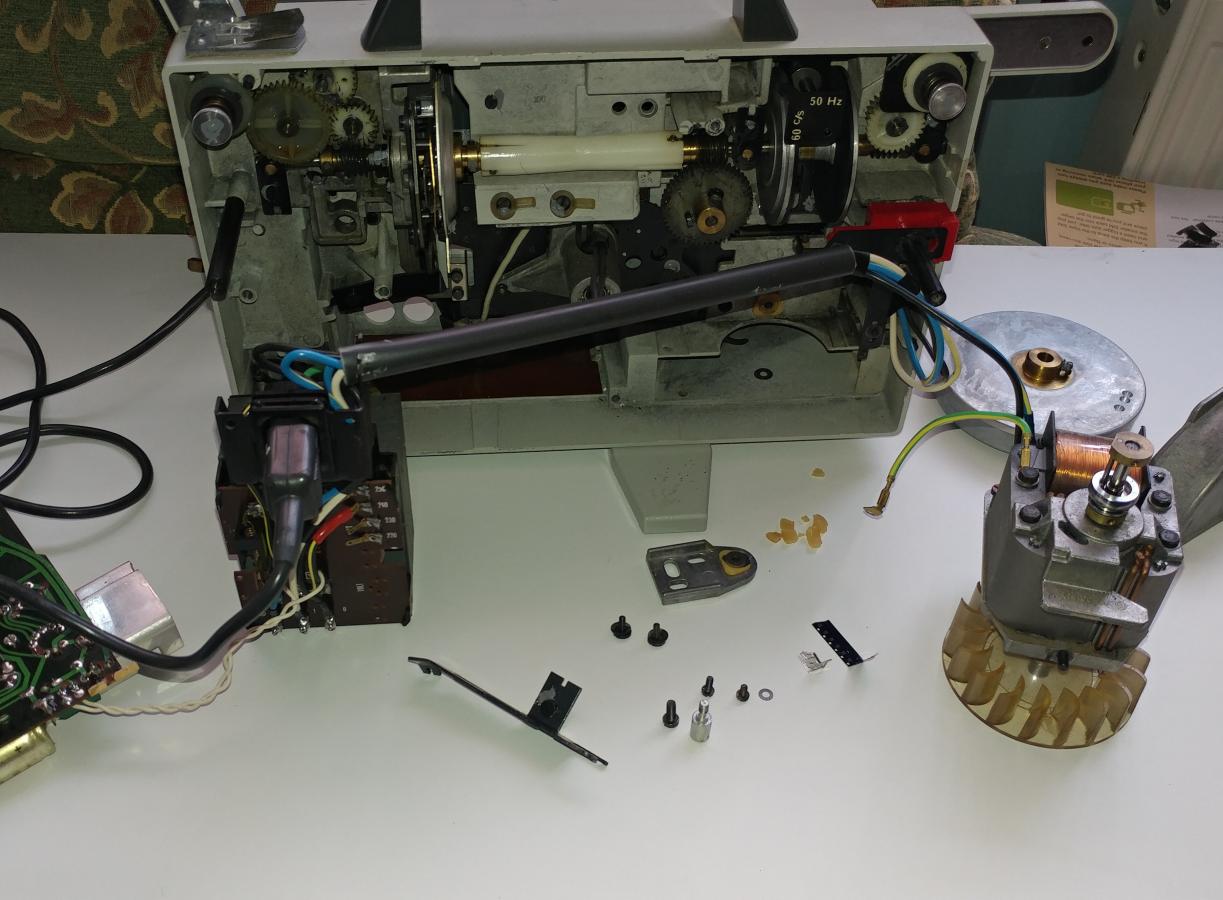

    Yea, my thoughts as to your problem seems pretty clear from your photo. You have disintegrated motor mounts...that's what all the yellow crumbly stuff is in your photo. It looks like someone has tried some quick fix to the front motor mount. This more than anything is going to give you drive issues. You can buy brand new motor mounts at Van-eck that they 3D print and are not brittle. Until you replace those you're not likely to get the machine running reliably.

    Leave a comment:


  • Lee Mannering
    replied
    One thing with Eumig machine the rubber coated drives wheel's can be repaired in 5 minutes with belt dressing.

    Spray it on a lint free cloth and rub on both drives. Leave it overnight. All done

    Oh and you need never buy a drive belt :-)

    Leave a comment:


  • Stuart Budd
    replied
    Good to know Brian. Projectors need to be used. The image above is as far as I'm going on this occssion as want to run film through it. I'll leave the drive shaft until I've seen film succesfully ran through. The claw and shutter are probably a bit technical! I'll have it back together over the weekend. Just got Family Plot on a 400ft reel to watch. Looking forwad to that.

    Leave a comment:


  • Brian Fretwell
    replied
    Sometimes (mainly when it is cold) my 710D and 810D projectors start slowly. I think it may be old lubrication thickening and getting more liquid when the machine warms up. They are perfectly OK in summer months.

    Leave a comment:


  • Stuart Budd
    replied
    Thanks for the reply Maurice.

    After a little reading and a video or two on Youtube I set about it with a screwdriver

    I wish I had left it until your reply as it would have been ideal to see if it would wake up. The seller had tested it and I did give it a small warm up. But like you say. May have needed more.

    Eumig Mark S 710d
    fingers crossed.

    Leave a comment:


  • Maurice Leakey
    replied
    Stuart

    Your projector could now be 49 years old and if it has been not used for some time it is just possible that the motor needs to run (unconnected) until it warms up.

    Then, the control should be turned to forward and the whole mech might then take a further ten minutes or so to get going.

    And, of course, the black drive disks may need a little roughening up.

    Unfortunately, the Eumig drive system is not one of the best ideas in the world.

    Leave a comment:


  • Stuart Budd
    started a topic Eumig Mark S 710d speed control unresponsive

    Eumig Mark S 710d speed control unresponsive

    Hello, as per title. New to me S 710d with 18 24 switch that's none functioning at the low position and needs a bit of assistance in the up position. Any thoughts? At work at the min but thought I'd pose this question on my break. I've put no film throught it yet and speed switched only when the control knob is virtical, off with fans going.

    [Edit] just read about the drive disks needing a bit of belt dressing or de-smoothing. I'll give those ago.
