Author Topic: Looping a super 8 film??
Ed Naujokas
Junior
Posts: 1
From: Tooting, London, UK
Registered: Jun 2010

- posted June 10, 2010 06:01 AM      Profile for Ed Naujokas   Email Ed Naujokas   Send New Private Message       Edit/Delete Post
Hi there,
I am trying to find a way to endlessly loop my super 8 film through a projector? Ive got a bolex 18-3TC Multispeed projector and its a standard 3mins 30 roll of super 8 film. Ive been trying to search on the internet but cant seem to find anything about it, there must be a way to loop it? Any thoughts or suggestions would be greatly appreciated! I read about a special super 8 loop cartridge but cant seem to find anywhere to buy one?

thanks!
Ed

 |  IP: Logged
Christian Bjorgen
Jedi Master Film Handler

Posts: 996
From: Kvinnherad, Norway
Registered: Oct 2009

- posted June 10, 2010 07:02 AM      Profile for Christian Bjorgen   Author's Homepage     Send New Private Message       Edit/Delete Post
-

--------------------

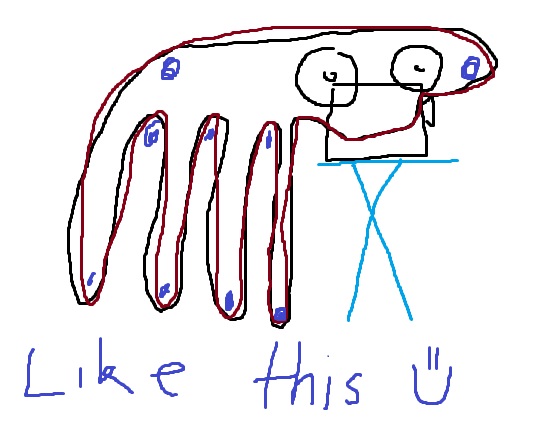

Well who’s on first? Yeah. Go ahead and tell me. Who. The guy on first. Who. The guy playin’ first base. Who. The guy on first. Who is on first! What are you askin’ me for? I’m askin’ you!

 |  IP: Logged
Steve Klare
Film Guy

Posts: 7016
From: Long Island, NY, USA
Registered: Jun 2003

- posted June 10, 2010 08:24 AM      Profile for Steve Klare   Email Steve Klare   Send New Private Message       Edit/Delete Post
Elmo made continuous play units which mounted to their projectors and allowed films to be looped.

I'm not sure how common they are or if other manufacturers also made them. It just seems like a specialty item that wouldn't have sold a huge amount.

--------------------
All I ask is a wide screen and a projector to light her by...

 |  IP: Logged
Jean-Marc Toussaint
Film God

Posts: 2392
From: France
Registered: Oct 2004

- posted June 10, 2010 11:08 AM      Profile for Jean-Marc Toussaint   Author's Homepage   Email Jean-Marc Toussaint   Send New Private Message       Edit/Delete Post
Euro Cine Services in France make custom looping devices but they cost a lot.
Christian's idea is great if you know your way around tools and can locate a bunch of rollers. I think you need to add at least two spring-mounted rollers. Let's hope the top sprocket of the projector will have enough torque to drag the 15 meters of film through all the rollers.

--------------------
The Grindcave Cinema Website

 |  IP: Logged
Steve Klare
Film Guy

Posts: 7016
From: Long Island, NY, USA
Registered: Jun 2003

- posted June 10, 2010 11:18 AM      Profile for Steve Klare   Email Steve Klare   Send New Private Message       Edit/Delete Post
Very True,

-and also let's hope the extra film tension at that sprocket doesn't cause extra wear on leading edges of the holes and start elongating them after multiple passes.

--------------------
All I ask is a wide screen and a projector to light her by...

 |  IP: Logged
Ricky Daniels
Jedi Master Film Handler

Posts: 587
From: London & Kent UK
Registered: Jul 2003

- posted June 11, 2010 05:57 AM      Profile for Ricky Daniels     Send New Private Message       Edit/Delete Post
Ed,

Make yourself a 'loop-box', I used to use them all the time in film dubbing theaters.

No need for rollers, etc, a 'loop-box' is basically like a super 8mm film box with one edge removed and this edge forms the top edge opening with the opposite edge as the base, obviously with some supports to hold the box upright! The film falls into the 'loop-box' and forms layers on top of itself.

For example for 8mm film take 2 sheets of clear rigid perspex of the same size e.g. 1m x 1m and take 3x 1m x 12mm x 12mm battens and place these around 3 of the edges but sandwiched between the perspex (imagine a square U shape), either glue or drill and bolt these in place. Add supports to hold the 'loop-box' upright with the 12mm wide opening at the top and place the 'loop-box' behind the projector with the opening in-line with the film path.

Film exiting the projector drops into the 1m x 12mm wide opening and the film layers itself within the 'loop-box'. Film exiting the 'loop-box' comes from the furthest edge from the projector, across the top of the projector feed arm and into the projector. You may need an empty reel on the feed arm to guide the film into the film projector.

Good luck.

Rick

 |  IP: Logged
Randall McGehee
Junior
Posts: 17
From: Troup, TX, USA
Registered: Jul 2017

- posted July 31, 2017 03:52 PM      Profile for Randall McGehee   Author's Homepage   Email Randall McGehee   Send New Private Message       Edit/Delete Post
Ok well I need Christian or Ricky to draw a picture of how this Loop-Box would be constructed! Or maybe a picture of one in action!

--------------------
Randall

 |  IP: Logged
Paul Browning
Phenomenal Film Handler

Posts: 1006
From: West Midlands United Kingdom
Registered: Aug 2011

- posted August 01, 2017 01:10 AM      Profile for Paul Browning   Email Paul Browning   Send New Private Message       Edit/Delete Post
Noris made one, very simple unit, Elmo's is a clip on unit, hard to find and they get snapped up straight away for big money. Is it not the same as the 8 track continuous loop system that just folds back on its self.

 |  IP: Logged
Brian Fretwell
Phenomenal Film Handler

Posts: 1785
From: London, UK
Registered: Jun 2014

- posted August 01, 2017 04:42 PM      Profile for Brian Fretwell   Email Brian Fretwell   Send New Private Message       Edit/Delete Post
Technicolor made a special projector (or 2) that took 50ft loop cartridges, but I doubt they could be adapted for the Bolex. If the could it wouldn't be easy.

 |  IP: Logged
Bryan Chernick
Jedi Master Film Handler

Posts: 654
From: Bothell, WA, USA
Registered: Mar 2010

- posted August 03, 2017 11:33 PM      Profile for Bryan Chernick   Email Bryan Chernick   Send New Private Message       Edit/Delete Post
You could get a Videotronic projector. I have the Regular 8mm version, the Super 8 ones are much easier to find. I have put my own film into the cartridge on mine but I think it's harder to do in the Super 8 version.

Videotronic Super 8

 |  IP: Logged
Clinton Hunt
Jedi Master Film Handler

Posts: 845
From: Waharoa,North Island,New Zealand
Registered: May 2010

- posted August 04, 2017 02:38 AM      Profile for Clinton Hunt   Author's Homepage     Send New Private Message       Edit/Delete Post
I have the Videotronic super 8mm repeater projector and I tried to work out how to load a film or even repair my broken cartridge!!!
Still don't know :-(

--------------------
Cheers from me in New Zealand :-)

 |  IP: Logged
Gregory Oliver
Junior
Posts: 28
From: Mansfield, TX, USA
Registered: Feb 2017

- posted August 04, 2017 09:59 AM      Profile for Gregory Oliver   Author's Homepage     Send New Private Message       Edit/Delete Post
I had some Yelco projectors that came out of an adult bookstore/arcade and the films were spooled in cartridges similar in design to 8-track audio configuration. They'd removed all of the leader and tail and spliced the ends together. Downside was the constant rubbing on the film's surface scratched the living daylights out of the image. I got rid of the projectors, but still may have a cartridge or two laying around.

 |  IP: Logged
Bryan Chernick
Jedi Master Film Handler

Posts: 654
From: Bothell, WA, USA
Registered: Mar 2010

- posted August 04, 2017 10:33 PM      Profile for Bryan Chernick   Email Bryan Chernick   Send New Private Message       Edit/Delete Post
quote:
I have the Videotronic super 8mm repeater projector and I tried to work out how to load a film or even repair my broken cartridge!!!
Still don't know :-(
I don't know how the Super 8 version works but I just spliced my film onto the end of the film that comes out of the cartridge the spooled the other film onto a rewind. When the end of my film came out the other end I spliced the ends together. It may be harder to do it with the Super 8 based on how the cartridge is designed.

 |  IP: Logged
Renzo Dal Bo
Film Handler

Posts: 70
From: Mogliano Veneto, Italy
Registered: Dec 2016

- posted August 05, 2017 05:39 AM      Profile for Renzo Dal Bo   Email Renzo Dal Bo   Send New Private Message       Edit/Delete Post
Hi,
There is a swiss company that nowadays build a continuous loop projection device to play 8mm or Super 8 film in an endless loop that can be used with every projectors.
Look at their site: www.looper8.ch
You can download their catalog, the user manual and a lot of detailed photos about this tool, useful to understand how it works.
Elmo built two different devices for endless loop film: the EF-50 for 50ft films and the EF-400 externally motorized for longer films.
Instead Noris built the "Noris Infinator" similar to the smaller Elmo's tool.

 |  IP: Logged
Bryan Chernick
Jedi Master Film Handler

Posts: 654
From: Bothell, WA, USA
Registered: Mar 2010

- posted August 05, 2017 12:28 PM      Profile for Bryan Chernick   Email Bryan Chernick   Send New Private Message       Edit/Delete Post
Renzo, that Looper 8 looks very similar to how my Regular 8 Videotronic projector works. The film sits flat and is wound in from the outside and pulled out from the center. On the Videotronic the film lays on a rotating tray, it looks like the Looper 8 has rollers that would allow the film to rotate freely without needing it to rotate.

If you use any of these types of devices it's recommended to keep the film well lubricated because it slides against itself while it's being pulled to the center of the reel.

Thanks for sharing that!

 |  IP: Logged
Gregory Oliver
Junior
Posts: 28
From: Mansfield, TX, USA
Registered: Feb 2017

- posted August 18, 2017 10:10 AM      Profile for Gregory Oliver   Author's Homepage     Send New Private Message       Edit/Delete Post

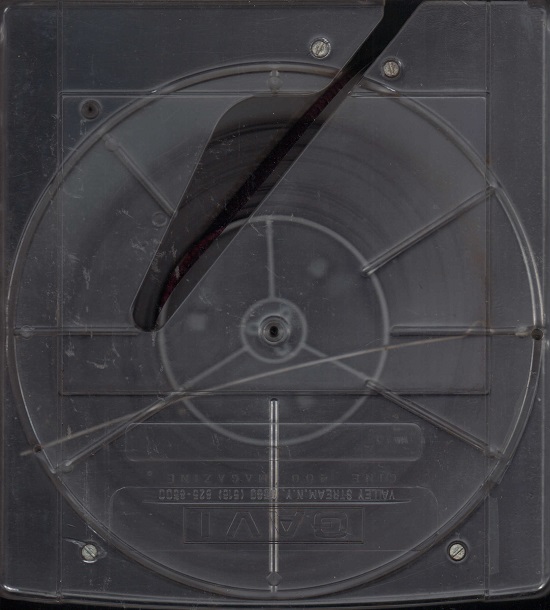

I found one of the cartridges from the Yelco projector, a regular 8mm film spliced end to end for continuous play.
-

 |  IP: Logged
