Topic: Keystone Regal K-109--Spring under Pressure Plate

John Barbour
Junior
Posts: 18
From: Lexington, KY, USA
Registered: Jun 2013

posted June 17, 2013 09:04 AM

Hi folks!

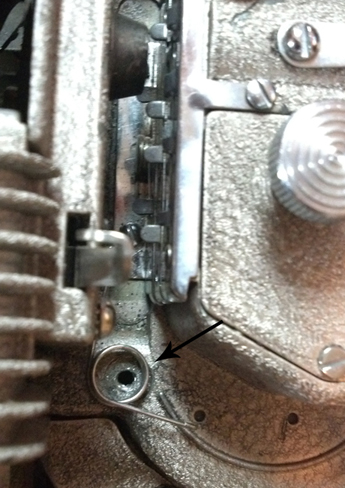

I got a little carried away while cleaning my Keystone K109 projector. I removed the screw that holds the pressure plate in order to better clean that area, and now I can't figure out how that little tension spring thingy fits back in place. Here's a photo of the spring in its approximately correct place:

That's the easy part. But I'm not sure where the ends go. Do they wrap around the posts of the bracket that holds the pressure plate? Do they connect to the body of the projector? Multiple attempts at fitting this back into place hasn't made the plate fit as it did before I took it off.

Any suggestions? In better news, that pressure plate is super clean.

| IP: Logged

Janice Glesser
Film Goddess

Posts: 3468
From: Sunnyvale, CA USA
Registered: Sep 2011

posted June 17, 2013 04:41 PM

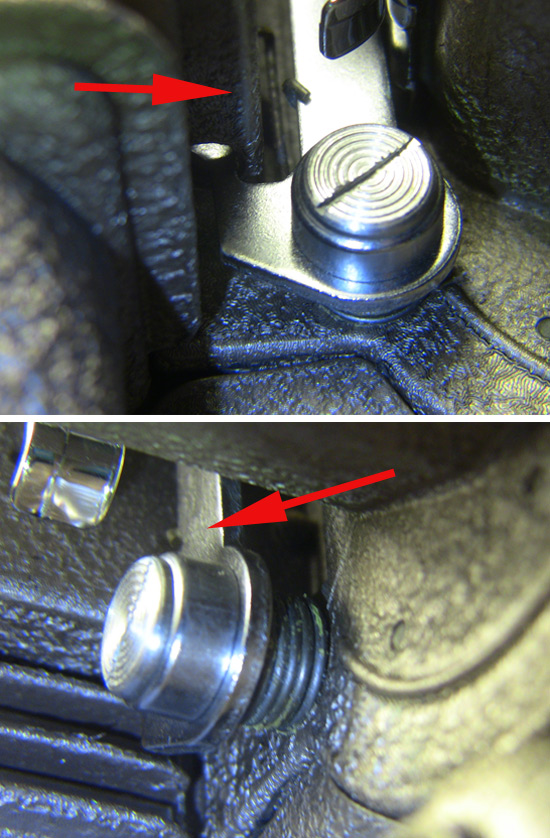

Hi John and welcome to the forum! I took a couple of pics of my K-109 so you can see how the spring fits. You will notice the end of the spring faces upwards and fits around the vertical bar behind the pressure plate.

--------------------
Janice

"I'm having a very good day!"
Richard Dreyfuss - Let It Ride (1989).

| IP: Logged

John Barbour
Junior
Posts: 18
From: Lexington, KY, USA
Registered: Jun 2013

posted June 17, 2013 07:25 PM

Janice,

Last night, what I thought was going to be a quick clean-up of an already-relatively-clean projector before I ran film through it for the first time turned into a frustrating couple of hours where I tried what (I now see was) almost every possible placement of those spring ends.

Just now, thanks to you and this forum, it literally took one minute to put the spring in place.

I'm hooked!

I'm in the process of viewing and digitizing a huge stack of 8 and 16mm films, mostly home movies from various estates. I'll definitely be around. Thanks so much.

| IP: Logged

Janice Glesser
Film Goddess

Posts: 3468
From: Sunnyvale, CA USA
Registered: Sep 2011

posted June 17, 2013 10:07 PM

Fantasic John. Glad to assist.

--------------------
Janice

"I'm having a very good day!"
Richard Dreyfuss - Let It Ride (1989).

| IP: Logged
