Topic: Elmo SP-F projector slow

Clinton Hunt
Jedi Master Film Handler

Posts: 845
From: Waharoa,North Island,New Zealand
Registered: May 2010

posted December 12, 2015 11:19 PM

I won a Elmo super8mm projector model SP-F,
I plugged it in , loaded a film,the wheels turn and the lamp lights up.....but ....it run extremely slow even with the speed on max.

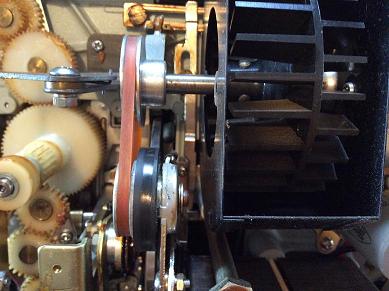

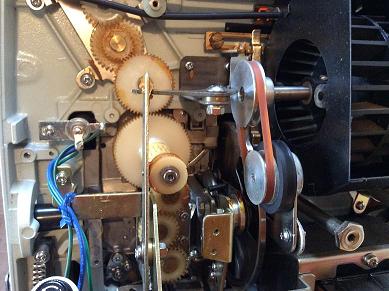

I've taken the back off and the motor appears to be running right and it's turning the next part fine too.
But when looking at the shutter part it is straining to turn,I can turn it by using my finger and that turns freely I think.
It looks like it has only one belt.
It has heaps of cogs to run this projector!
Any thoughts,maybe grease the cogs,or is there another belt I can't see that's slipping maybe?
Cheers,
Clinton

--------------------
Cheers from me in New Zealand :-)

| IP: Logged

Thijs de Kort
Film Handler

Posts: 51
From: Tilburg, Netherlands
Registered: Jun 2015

posted December 14, 2015 02:41 AM

Hello Clinton,
The SP-F has a big metal wheel around the shutter that is directly on a rubber wheel from the engine, your problem sounds like that the rubber is to old/worn for correct usage. You can try if this is the problem by opening the back then running the projector and slightly pushing the metal behind this rubber wheel. (this works only when the projector is actually running.)
/Thijs.

| IP: Logged

Steve Klare
Film Guy

Posts: 7016
From: Long Island, NY, USA
Registered: Jun 2003

posted December 14, 2015 12:05 PM

There's never any harm in making sure the lube is good:

My Great Worm-Glop Weekend!

-even if it isn't THE problem it's one less thing causing trouble.

This one is interesting: I always thought the ST-1200 was the only Elmo with the roller/shutter wheel arrangement.

--------------------
All I ask is a wide screen and a projector to light her by...

| IP: Logged

Clinton Hunt
Jedi Master Film Handler

Posts: 845
From: Waharoa,North Island,New Zealand
Registered: May 2010

posted December 15, 2015 04:20 PM

Ok ... The only visible belt was fine and then I gave the cogs a lube and the projector did run faster, and then the bulb blew! so I don't know if it is running to the right speed [Frown]

And I then put it into reverse to wind the film back off the end reel,the projector didn't like that and hardly moved!
I'm thinking it has more problems than worth my time especially since I now need to buy a new lamp!?

--------------------
Cheers from me in New Zealand :-)

| IP: Logged

Janice Glesser
Film Goddess

Posts: 3468
From: Sunnyvale, CA USA
Registered: Sep 2011

posted December 15, 2015 05:23 PM

Thanks for posting the pics Clinton. It's always nice to see the insides of projectors. I have an Elmo FP-A. It's drive system is different than the SP-F...but I'm having the same issue with the speed being very slow. In fact...the variable rheostat doesn't even change the speed. I kind of gave up on trouble-shooting this projector too. If I ever find the source of the speed problem...I'll post it. It might help you too [Smile]

--------------------
Janice

"I'm having a very good day!"
Richard Dreyfuss - Let It Ride (1989).

| IP: Logged

Clinton Hunt
Jedi Master Film Handler

Posts: 845
From: Waharoa,North Island,New Zealand
Registered: May 2010

posted December 15, 2015 05:38 PM

Thanks Janice,that'll be great,my speed control does work but that's the least of the problems [Smile]

--------------------
Cheers from me in New Zealand :-)

| IP: Logged
