Topic: Eumig Mark-S 710D - chewing up my film

Heidi Barker
Film Handler

Posts: 57
From: Preston, Lancashire, UK
Registered: Nov 2017

posted December 16, 2017 02:52 PM

Email Heidi Barker

Send New Private Message

Edit/Delete Post

Hi,
I have just picked up a Eumig Mark-S 710D - however when i put the film in the auto threading it is just chewing it up.
i have found a manual thanks to a member here uploading one and am following the instructions but am at a bit of a loss.

Is it a trip to the tip with it?

I'm not having a lot of luck with projectors at the moment [Frown]

[Frown]

| IP: Logged

Tom Photiou
Film God

Posts: 4837
From: Plymouth U.K
Registered: Dec 2003

posted December 16, 2017 03:03 PM

Send New Private Message

Edit/Delete Post

This is unusual for one of these.
The only thing i can think is to check everything is set for either super 8 or standard 8. We recieved an 810 once and when we checked it the sprocket were set for std 8 while the gates were super 8. Also we found two little bits of broken film in the path. [Wink]

[Wink]

| IP: Logged

Will Trenfield
Jedi Master Film Handler

Posts: 506
From: Shrewsbury, Shropshire, UK
Registered: Mar 2016

posted December 16, 2017 06:47 PM

Email Will Trenfield

Send New Private Message

Edit/Delete Post

I had one of those but hurt my back lifting it and sold it on recently. As Tom posted, check the film path first and follow the instructions for loading. The start of the film leader needs to be trimmed using the supplied trimmer or as explained in the instructions, otherwise you will have problems. I'd remove the front cover when you load a film to be on the safe side. When you change the gates between standard and super 8, you need to set the red spot on the inching knob at the back of the projector to the 12'o'clock position to prevent damage to the claw.

| IP: Logged

Paul Adsett
Film God

Posts: 5003
From: USA
Registered: Jun 2003

posted December 16, 2017 08:16 PM

Send New Private Message

Edit/Delete Post

Make sure you keep the threading lever depressed all the time the film is going through the machine. You can release the threading lever as soon as the film leader emerges at the take up reel.

--------------------
The best of all worlds- 8mm, super 8mm, 9.5mm, and HD Digital Projection,
Elmo GS1200 f1.0 2-blade
Eumig S938 Stereo f1.0 Ektar
Panasonic PT-AE4000U digital pj

| IP: Logged

Maurice Leakey
Film God

Posts: 5895
From: Bristol. United Kingdom
Registered: Oct 2007

posted December 17, 2017 02:03 AM

Email Maurice Leakey

Send New Private Message

Edit/Delete Post

Don't forget that this is a dual gauge model. Is it set up for the gauge of film you are trying to thread?

--------------------
Maurice

| IP: Logged

Brian Fretwell
Phenomenal Film Handler

Posts: 1785
From: London, UK
Registered: Jun 2014

posted December 17, 2017 04:02 AM

Email Brian Fretwell

Send New Private Message

Edit/Delete Post

I haven't used my 710D recently so can't remember how fussy it is but make sure the film end is trimmed properly there should be a cutter with it that takes the corners off to ease threading.

| IP: Logged

Terry Sills
Phenomenal Film Handler

Posts: 1423
From: Weymouth,Dorset,England
Registered: Oct 2012

posted December 17, 2017 04:22 AM

Send New Private Message

Edit/Delete Post

My guess is that Paul has hit on the answer. It is imperative that the loading lever is kept depressed until the film emerges at the rear of the projector. Of course the projector has to be set up with the correct sprockets and gates for the film guage being played beforehand.

| IP: Logged

Mark Todd
Film God

Posts: 3846
From: UK
Registered: Aug 2003

posted December 17, 2017 04:24 AM

Send New Private Message

Edit/Delete Post

Is the leader/film trimmed OK at the front.

A nice almost semi circle shape is usually best to help the film get through nicely. But not having cut through the sprocket hole if you will.

Best Mark.

PS sorry Brian by the time I hit the post button I had missed yours. .

| IP: Logged

Heidi Barker
Film Handler

Posts: 57
From: Preston, Lancashire, UK
Registered: Nov 2017

posted December 20, 2017 02:04 PM

Email Heidi Barker

Send New Private Message

Edit/Delete Post

Hi everyone - sorry i didn't get email notification of your replies! thanks for the suggestions - i definitely held down the threader bit but knew it didn't sound right so witched it off.
sadly i don't have the trimmer that is supplied with the projector - i may have to keep an eye out for one on eBay.
i've made sure the switch is on super 8 and changed the gate thingy (sorry i'm new to all this projection stuff) to the one that has 'S' printed on it... i'll have a try to see if i can find any bits of film in it... i couldn't really work out the way it even threads.
I had a look on you tube thinking i'd find a video but there wasn't one.
I've just bought an old copy of star wars and am frightened to put it through the machine. [Eek!]

[Eek!]

bugger - found this on eBay and it's in Australia! https://www.ebay.co.uk/itm/SUPER-8-FILM-TRIMMER-FOR-8mm-FILM/253297500810?hash=item3af9b5228a:g:8ukAAOSwnHZYjn2k think the postage is a bit steep!

| IP: Logged

Maurice Leakey
Film God

Posts: 5895
From: Bristol. United Kingdom
Registered: Oct 2007

posted December 20, 2017 02:50 PM

Email Maurice Leakey

Send New Private Message

Edit/Delete Post

Heidi
When you changed the gate for the Super 8 gate did you set the rear inching knob so that its red spot was in the 12 o'clock position?
If you did not you could have broken off the single claw by withdrawing the standard 8 gate (N) and inserting the Super 8 gate (S).
Also, have you got the correct two sprockets fitted, i.e., the ones for Super 8?
You could use a pair of scissors to make a curved cut on the leader, but do not cut through a perforation.

--------------------
Maurice

| IP: Logged

Janice Glesser
Film Goddess

Posts: 3468
From: Sunnyvale, CA USA
Registered: Sep 2011

posted December 20, 2017 03:09 PM

Send New Private Message

Edit/Delete Post

Heidi it might be difficult to locate a trimmer exactly made for the Eumig. Different projectors prefer different cuts.

For example Elmo's like a rounded half-moon shape. Where as Eumigs tend to like it straight across cut with just the outer edges trimmed. You can do this easily with scissors or nail clippers.

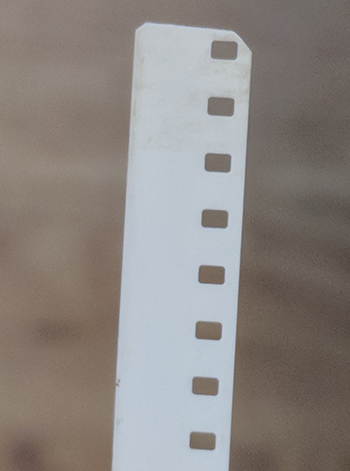

Here is a picture of a leader I trimmed with a Eumig trimmer.

This cut seems to work best in my 710D...however you can try both trimming variations to see which one works best on your projector.

--------------------
Janice

"I'm having a very good day!"
Richard Dreyfuss - Let It Ride (1989).

| IP: Logged

Will Trenfield
Jedi Master Film Handler

Posts: 506
From: Shrewsbury, Shropshire, UK
Registered: Mar 2016

posted December 20, 2017 05:30 PM

Email Will Trenfield

Send New Private Message

Edit/Delete Post

As said, the rear inching knob needs to be rotated so the red dot is at 12 o'clock before changing the gates. In this position, the claw which moves the film will be withdrawn and safely out of the way. It follows that, at another position, the claw will be fully extended and liable to damage when changing the gates. Also, when changing the sprockets, you need to engage the latches under each, particularly the front one.

| IP: Logged

Heidi Barker
Film Handler

Posts: 57
From: Preston, Lancashire, UK
Registered: Nov 2017

posted December 21, 2017 04:36 AM

Email Heidi Barker

Send New Private Message

Edit/Delete Post

Hmm I did not know about the red dot. I changed the sprockets by pushing the latches down so those should be ok. I will look this evening. Thanks for the photo of the cut on the eumig I will have to buy some leader and re attach and give it a go, I hope I've not broken it 😩

| IP: Logged

Maurice Leakey
Film God

Posts: 5895
From: Bristol. United Kingdom
Registered: Oct 2007

posted December 21, 2017 05:49 AM

Email Maurice Leakey

Send New Private Message

Edit/Delete Post

As it's a dual gauge model it only has one claw which can cater for the two different sizes of perforations.
I hope that the claw has not been broken. If it is it accounts for the film being chewed up.
Sorry for the bad news.
If you want some white leader I can recommend this eBay seller.
https://www.ebay.co.uk/itm/8mm-Film-Leader-SUPER-8-Cine-50-feet-Acetate-on-spool/142618976233?hash=item2134c0dfe9:m:mgLDVUh0gcc5fynzuw7WJRw

--------------------
Maurice

| IP: Logged

Will Trenfield
Jedi Master Film Handler

Posts: 506
From: Shrewsbury, Shropshire, UK
Registered: Mar 2016

posted December 21, 2017 12:27 PM

Email Will Trenfield

Send New Private Message

Edit/Delete Post

After the sprockets have been changed, you need to pull the latches back up to engage otherwise the film won't feed through properly.

| IP: Logged

Heidi Barker
Film Handler

Posts: 57
From: Preston, Lancashire, UK
Registered: Nov 2017

posted December 21, 2017 03:55 PM

Email Heidi Barker

Send New Private Message

Edit/Delete Post

Well, some good news - i think i can still see a claw! well, it's a little metal spike about 3-4mm long. so at least that's not broken.
Next step - buy some leader and try again! thank you for the recommendation of the seller.
I have definitely put the latches back up once i changed the sprockets and i'm using the light grey ones which say it's for the super 8 so i'm confident that that's right - hopefully it's just the leader needs the right trimmed shape!
thank you all for your help - i'll be sure to update once i've got the leader.

| IP: Logged

Paul Adsett
Film God

Posts: 5003
From: USA
Registered: Jun 2003

posted December 21, 2017 04:03 PM

Send New Private Message

Edit/Delete Post

Heidi, you don't need the leader to run your film. Justuse a pair of scissors to trim the end as shown in Janice's photo and it should thread flawlessly. If it does not, pull off the lamphouse cover and see exactly where it is jamming up. then we can fix the problem for you.

--------------------
The best of all worlds- 8mm, super 8mm, 9.5mm, and HD Digital Projection,
Elmo GS1200 f1.0 2-blade
Eumig S938 Stereo f1.0 Ektar
Panasonic PT-AE4000U digital pj

| IP: Logged

Heidi Barker
Film Handler

Posts: 57
From: Preston, Lancashire, UK
Registered: Nov 2017

posted December 21, 2017 04:47 PM

Email Heidi Barker

Send New Private Message

Edit/Delete Post

I'm scared to put the film through - it's crunched up about 8 inches of two films so far - i don't have any crappy film to try it out on so i'll have to get some leader as i'll already have to trim off what it's chewed. but i will try to film it if it goes wrong - thanks [Smile]

[Smile]

| IP: Logged

Will Trenfield
Jedi Master Film Handler

Posts: 506
From: Shrewsbury, Shropshire, UK
Registered: Mar 2016

posted December 21, 2017 05:35 PM

Email Will Trenfield

Send New Private Message

Edit/Delete Post

Where exactly is the film being chewed up, Heidi?

| IP: Logged

John Kennedy
Junior
Posts: 4
From: Blackburn, UK
Registered: Dec 2017

posted December 22, 2017 02:36 AM

Email John Kennedy

Send New Private Message

Edit/Delete Post

I have sent you a private message Heidi. I am only down the road from you and a bit of a Eumig geek....

| IP: Logged

Heidi Barker
Film Handler

Posts: 57
From: Preston, Lancashire, UK
Registered: Nov 2017

posted December 29, 2017 01:42 PM

Email Heidi Barker

Send New Private Message

Edit/Delete Post

After John very kindly came round to look at the projector, it sadly is still chewing the film. It just can't get over the first part. It's like it's not being guided over the gate. 😢

| IP: Logged

Will Trenfield
Jedi Master Film Handler

Posts: 506
From: Shrewsbury, Shropshire, UK
Registered: Mar 2016

posted December 29, 2017 05:39 PM

Email Will Trenfield

Send New Private Message

Edit/Delete Post

Sorry to read that you're having problems still. I sold mine but have a S 712D which is similar but manual loading.

From what you say, your film isn't going through the gate. Providing the correct front sprocket is fitted (black standard 8, Grey Super 8), the latch below it raised and the loading lever above it pressed down as the film is fed in then it should go through the gate ok.

There are lugs on the sprockets which engage in holes in the drive shaft. When fitting a sprocket you need to rotate it until you hear the lugs locating. It's hard to think what the problem could be if you've followed the advice above and that in other postings.

Don't take it to the tip if you can't sort it. Faulty projectors often fetch silly money on eBay.

| IP: Logged

Heidi Barker
Film Handler

Posts: 57
From: Preston, Lancashire, UK
Registered: Nov 2017

posted December 30, 2017 04:13 PM

Email Heidi Barker

Send New Private Message

Edit/Delete Post

Thanks- the lugs you are referring to; are those the two holes where you put the sprocket on? As that's the way I've put it in. - it's certainly not passing through the gate, John even tried the super 8 plates from his machine and still the same thing happens. It's very frustrating- I want to find someone who repairs them - I'd rather not have to pay nearly £200 for a working one! 😕

| IP: Logged

Robert Crewdson
Phenomenal Film Handler

Posts: 1031
From: UK
Registered: Jun 2013

posted December 30, 2017 04:38 PM

Send New Private Message

Edit/Delete Post

I found on my Eumig 810D that when I changed to Standard 8, the film wouldn't thread and was bunching up like a concertina. I got round this by cutting the plastic guide on the gate the same length as the Super 8. It probably means I couldn't show Standard 8 sound due to the different seperation between sound and picture.

| IP: Logged

Gary Sayers
Film Handler

Posts: 55
From: Worksop, UK
Registered: Aug 2016

posted December 30, 2017 05:52 PM

Send New Private Message

Edit/Delete Post

I recently had a problem with my Eumig chewing up film when trying to thread it.

It was just like I wasn't pressing the lever down (even though I was, obviously).

It took me ages of trying different things before I noticed that the bottom part, below the lever, wasn't coming up and closing. That's all it was.

Now I just have to remember to lift the bottom part manually, keeping it firmly closed, while holding down the threading lever.

It threads like a dream now. I assume it's just a spring or something that's gone (I've had it for well over 40 years now) but I can live with it.

| IP: Logged
