Topic: Elmo 1200 Beer can cover

Tom Photiou
Film God

Posts: 4837
From: Plymouth U.K
Registered: Dec 2003

posted February 25, 2019 01:40 PM

Send New Private Message

Edit/Delete Post

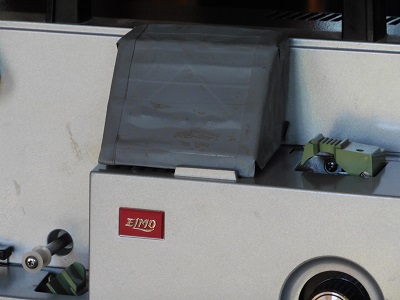

This item was sent to me the other day and was originally from a collector in an old Movie Maker magazine from years ago. People often talk about the light that floods out from the top of there projectors. I know many collectors have there own methods of blocking out this light and we all know we mustn't stop the heat from being blown out by the fan. At the end of the day they are there to do a job.

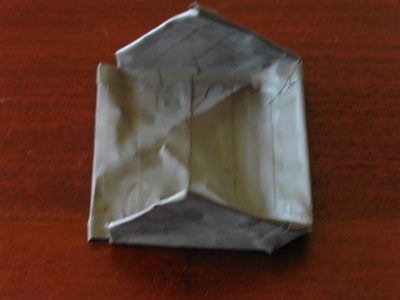

Well, this item, also sent to me from Hugh Scott, was literally made from an old beer can, clearly one side is up so the heat is able to be blown out, Hugh also tells me that he also made his own from an old beer can and it works perfect.
Recycling at it's best [Big Grin]

[Big Grin]

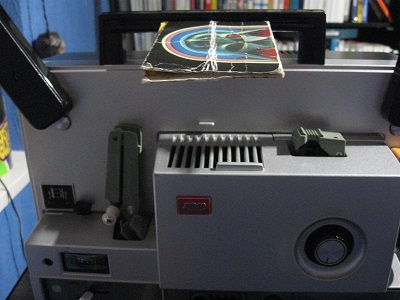

I myself simply use a post card folded in half and it fits into the groove of the handle, it still allows the heat out and as you can see, it's a dark colour card so absorbs the light and takes away all that flooded light onto the ceiling giving the image on screen a better contrast. It does make a huge difference as you see when you take it off during a show, especially night scenes.

| IP: Logged

Leon Norris
Jedi Master Film Handler

Posts: 958
From: Elkins Park, PA, USA
Registered: Jun 2012

posted February 25, 2019 01:55 PM

Email Leon Norris

Send New Private Message

Edit/Delete Post

It looks good Tom ! A nice invention! And it works! Leon.

| IP: Logged

Tom Photiou
Film God

Posts: 4837
From: Plymouth U.K
Registered: Dec 2003

posted February 25, 2019 02:55 PM

Send New Private Message

Edit/Delete Post

Mines just the simple postcard Leon, the other from a collector in an old Movie Maker magazine, as you say, it does the job and cost is Zero.

| IP: Logged

Leon Norris
Jedi Master Film Handler

Posts: 958
From: Elkins Park, PA, USA
Registered: Jun 2012

posted February 25, 2019 03:03 PM

Email Leon Norris

Send New Private Message

Edit/Delete Post

Its good to be inventive! Tom keep it up!

| IP: Logged

Graham Ritchie
Film God

Posts: 4001
From: New Zealand
Registered: Feb 2006

posted February 25, 2019 03:48 PM

Send New Private Message

Edit/Delete Post

Tom

I would imagine in Scotland this would be used instead [Big Grin]

[Big Grin]

After all it has been, and always will be Scotlands national fizzy drink. Oh! I am presently shocked to read, that a certain Americam President who just happens to own a golf course in Scotland, has banned its sale at his fancy hotel.

I bet he is popular [Roll Eyes]

[Roll Eyes]

| IP: Logged

Kev Morrison
Film Handler

Posts: 76
From: Land of the Mouse, USA
Registered: Feb 2018

posted February 25, 2019 04:06 PM

Email Kev Morrison

Send New Private Message

Edit/Delete Post

Graham,

He is.

And quite frankly, I don't believe the story. If people want that drink, why not offer it?

But, I did check into the story, and found a story from "Newsgrowl", a Left Wing website. Although it was written by a Newsgrowl staffer as a blatant hit piece against Trump, there is some basis for it, as follows:

"The reason stated by Trump Turnberry general manager Ralph Porciani was because of IRN-BRU’s famous tendency to stain anything it touches. Having just undergone a reported $200 million refurbishment, keeping IRN-BRU off the premises is now a priority.

“We can’t have it staining when to replace the ballroom carpet would be £500,000 alone,” he explained. “We have villas here with IRN-BRU stains in the carpets which I can’t let.”

Realize that as President, Trump doesn't (and cannot) get involved with the operations of any of his former businesses. It was the decision of Trump Turnberry's management, NOT Donald Trump.

But let's not let the facts get in the way of a good story...

Back to Elmo lamp shades.

| IP: Logged

Tom Photiou
Film God

Posts: 4837
From: Plymouth U.K
Registered: Dec 2003

posted February 25, 2019 04:07 PM

Send New Private Message

Edit/Delete Post

[Big Grin]

[Big Grin]

[Big Grin]

| IP: Logged

Chip Gelmini
Phenomenal Film Handler

Posts: 1733
From: Brooksville, FL
Registered: Jun 2003

posted February 25, 2019 04:36 PM

Send New Private Message

Edit/Delete Post

The other night I put my hand over the lamphouse duct And took it away several times trying to see a difference in output of light and I cannot tell a difference what I did notice obviously was that it wasn't going on the ceiling otherwise no difference either I am doing something wrong or I don't get the idea and I would never ever put anything to cover the lamp house even if I change the direction of the exhaust

| IP: Logged

Paul Adsett
Film God

Posts: 5003
From: USA
Registered: Jun 2003

posted February 25, 2019 11:16 PM

Send New Private Message

Edit/Delete Post

Let's make this clear. Blocking the light spill from the lamphouse by any method, hand, piece of cardboard, beer can duct whatever, is going to have zero effect on the light intensity coming out of the lens. The picture may look brighter, but in fact it is not. You are simply reducing light scatter onto the screen from the lamphouse cover bouning off the ceiling and walls, so the picture looks much better with higher contrast, but is actually getting exactly the same amount of light onto the screen.
A light baffle for the Elmo's is of course a great idea, as long as it does not significantly reduce air flow from the blower. I use a simple piece of cardboard tucked under the handle.

--------------------
The best of all worlds- 8mm, super 8mm, 9.5mm, and HD Digital Projection,
Elmo GS1200 f1.0 2-blade
Eumig S938 Stereo f1.0 Ektar
Panasonic PT-AE4000U digital pj

| IP: Logged

Tom Photiou
Film God

Posts: 4837
From: Plymouth U.K
Registered: Dec 2003

posted February 26, 2019 02:09 PM

Send New Private Message

Edit/Delete Post

I know it doesn't put extra light onto the screen though the lens, the point is to reduce the light scatter that does make the image look a little better in contrast, especially during dark scenes. [Wink]

[Wink]

| IP: Logged

Ricky Daniels
Jedi Master Film Handler

Posts: 587
From: London & Kent UK
Registered: Jul 2003

posted February 27, 2019 02:11 PM

Send New Private Message

Edit/Delete Post

Hey Paul,
Yup! I agree and thanks for your explanation that can also apply here!...

http://8mmforum.film-tech.com/cgi-bin/ubb/ultimatebb.cgi?ubb=get_topic;f=8;t=005119

Best,
Rick

| IP: Logged

Steve Klare
Film Guy

Posts: 7016
From: Long Island, NY, USA
Registered: Jun 2003

posted February 27, 2019 02:33 PM

Send New Private Message

Edit/Delete Post

Actually, one way to look at it is reducing the scatter puts less light on the screen. It's just now a bigger fraction of the light is picture (signal) and less of it is scattered light (noise).

Same amount of coffee diluted in less water: richer flavor!

(Great, now I want a cup of coffee!)

It's why we lower the house lights in the first place.

--------------------
All I ask is a wide screen and a projector to light her by...

| IP: Logged

Rob Young.
Phenomenal Film Handler

Posts: 1633
From: Cheshire, U.K.
Registered: Dec 2003

posted February 27, 2019 02:52 PM

Send New Private Message

Edit/Delete Post

I'm pretty sure that what Tom means here is that the ST leaks an awful lot of light out of the top of that lamp house grill.

So it can hit the ceiling and partly illuminate the room, thus reducing the overall darkness of the room and the perceived image contrast on screen.

I know my ST blasts a LOT of light upward and a light coloured ceiling certainly helps fill the room with unwanted illumination.

So preventing that light spillage whilst not preventing overheating of the lamp house simply helps keep the whole room a lot darker and thus the perceived screen image a bit brighter.

No one for a minute would pretend that light can be contained and forced back through the lens...lol. [Smile]

[Smile]

| IP: Logged

Steve Klare
Film Guy

Posts: 7016
From: Long Island, NY, USA
Registered: Jun 2003

posted February 27, 2019 02:57 PM

Send New Private Message

Edit/Delete Post

It's a plus having a longer throw: the intensity of the scattered light should fall off with the square of the distance, but the beam would fall off in intensity much more slowly if zoomed the same screen size. (Clean air in the room is a plus here! -that and the health of the viewers.)

--------------------
All I ask is a wide screen and a projector to light her by...

| IP: Logged

Rob Young.
Phenomenal Film Handler

Posts: 1633
From: Cheshire, U.K.
Registered: Dec 2003

posted February 27, 2019 03:10 PM

Send New Private Message

Edit/Delete Post

"Actually, one way to look at it is reducing the scatter puts less light on the screen. It's just now a bigger fraction of the light is picture (signal) and less of it is scattered light (noise)."

Ha! Yes, Steve, very good...it took me a couple of times to read that, but yes, absolutely right.
[Smile]

[Smile]

| IP: Logged

Steve Klare
Film Guy

Posts: 7016
From: Long Island, NY, USA
Registered: Jun 2003

posted February 27, 2019 03:13 PM

Send New Private Message

Edit/Delete Post

Thanks!

Optics has always been a weak point for me, but if I can convert it to electrical terms I do better.

I once tried to understand my wife in terms of amplifiers.

-the feedback was terrible!

--------------------
All I ask is a wide screen and a projector to light her by...

| IP: Logged

Lee Mannering
Film God

Posts: 3216
From: The Projection Box
Registered: Nov 2006

posted February 27, 2019 05:23 PM

Send New Private Message

Edit/Delete Post

And these days they are near zero sugar
.
In Glasgow full sugar Bru is fetching quite a price. Don't mess with the Scots Bru we Brits

| IP: Logged

Graham Ritchie
Film God

Posts: 4001
From: New Zealand
Registered: Feb 2006

posted February 27, 2019 05:28 PM

Send New Private Message

Edit/Delete Post

Well said Lee [Wink]

[Wink]

[Smile]

| IP: Logged

Tom Photiou
Film God

Posts: 4837
From: Plymouth U.K
Registered: Dec 2003

posted February 28, 2019 03:37 AM

Send New Private Message

Edit/Delete Post

[Big Grin]

[Big Grin]

Just to reiterate, The baffle has a slot at the top to allow air flow, the blower on the ST1200 is not very powerful, as the dichroic lamps don’t require the cooling that lamps do on older machines, the heat dissipates through the rear of the lamp, thus the blower is not as powerful as the older projectors needed for low light but much heat. I Know Hugh has used this little doohickey for 30 years or more to no ill effect, indeed, FAR safer than some people who wish to remove a very necessary component for film safety, the HEAT SHIELD, the baffle only reduces ambient light, ‘light scatter’ that reduces contrast, it DOES NOT INCREASE light output, much like watching a film in daylight, as opposed to night viewing, pretty obvious really.
I must stress, the idea came from a British “Movie Maker” reader, who has made film shows far more enjoyable. Its thanks to this idea that you now can at least make something akin to the original that gives some professionalism to shows, rather than a bit of card stuck in the handle as i do. I know it works but it doesn't look quite the same [Wink]

[Wink]

| IP: Logged

Rob Young.
Phenomenal Film Handler

Posts: 1633
From: Cheshire, U.K.
Registered: Dec 2003

posted February 28, 2019 03:08 PM

Send New Private Message

Edit/Delete Post

Tom, many years ago we had a flat which was fortunately large enough to have a separate small room as a cinema.

But the white ceiling sloped down quite low toward the projectors at the back and as a result a LOT of light spilt upwards from the ST and bounced all over the room.

I remember using on of those weights with an adjustable arm and a small crocodile clip (it was made for holding things you intended to solder!) which stood nicely on top of the back cover of the Elmo. Then a neat piece of black cardboard held in place above the lamp house allowed for plenty of heat to escape, but trapped any excess light.

Needs must! [Smile]

[Smile]

Funny how we've all found our own unique solutions to the same problems. [Big Grin]

[Big Grin]

| IP: Logged

Tom Photiou
Film God

Posts: 4837
From: Plymouth U.K
Registered: Dec 2003

posted February 28, 2019 03:59 PM

Send New Private Message

Edit/Delete Post

Exactly Rob. Obviously if you have a huge room there will be less scatter, here in the UK we dont all live in mansions but those HDs do chuck out a huge amount of light. In fact my Eiki SL2 is a great design as very little light escapes from it due to a better desigh on its top vents. [Wink]

[Wink]

| IP: Logged

Paul Adsett
Film God

Posts: 5003
From: USA
Registered: Jun 2003

posted February 28, 2019 06:45 PM

Send New Private Message

Edit/Delete Post

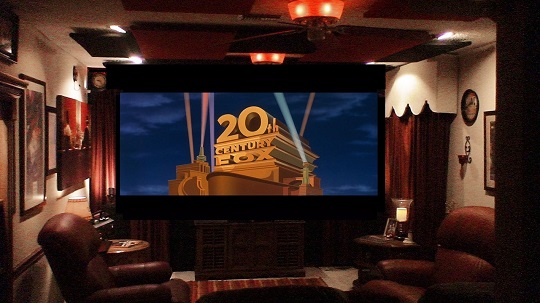

There are many things you can do to minimize light scatter in any room. I have hung wooden panels covered with black and burgundy colored felt from my ceiling. It does a fantastic job of preventing scattered light from the ceiling reflecting back on to the screen. The picture quality difference, contrast and perceived brightness is amazing, for both super 8 and digital projection:

--------------------
The best of all worlds- 8mm, super 8mm, 9.5mm, and HD Digital Projection,
Elmo GS1200 f1.0 2-blade
Eumig S938 Stereo f1.0 Ektar
Panasonic PT-AE4000U digital pj

| IP: Logged

Rob Young.
Phenomenal Film Handler

Posts: 1633
From: Cheshire, U.K.
Registered: Dec 2003

posted March 01, 2019 05:38 AM

Send New Private Message

Edit/Delete Post

Purposeful and looks beautiful too, Paul. [Smile]

[Smile]

| IP: Logged

Paul Adsett
Film God

Posts: 5003
From: USA
Registered: Jun 2003

posted March 01, 2019 09:26 AM

Send New Private Message

Edit/Delete Post

Thanks for your kind comment Rob. Yes, I do love these ceiling panels. In addition to looking good and blocking light reflection they also have some acoustic benefit in attenuating sound reflection off the ceiling. I think they are another example, along with screen masking, of getting a huge return on picture quality for very little expenditure.

--------------------
The best of all worlds- 8mm, super 8mm, 9.5mm, and HD Digital Projection,
Elmo GS1200 f1.0 2-blade
Eumig S938 Stereo f1.0 Ektar
Panasonic PT-AE4000U digital pj
