Topic: Elf not holding focus

Den Brown
Master Film Handler

Posts: 271
From: London, UK
Registered: Apr 2007

posted January 27, 2010 04:41 PM

Email Den Brown

Send New Private Message

Edit/Delete Post

My Elf NT2 is not holding focus. Goes soft every one or two hundred feet after re-focusing.

Is the focus knob slipping somehow? Not keeping the set position in the lens barrel thread?

Should this thread be lubricated for a tighter fit or completely dry?

| IP: Logged

David Erskine
Expert Film Handler

Posts: 230
From: Letchworth Garden City, Herts
Registered: Aug 2008

posted January 27, 2010 05:21 PM

Email David Erskine

Send New Private Message

Edit/Delete Post

You probably need to replace the little rubber thingy on the focussing knob spindle - try that! I use either a)brake fluid piping or b)aquarium tubing or c)[which I haven't tried yet] a chap today suggested using electric cable of the right thickness with the wire withdrawn! Cheers, David E
P.S The proper answer is the proper Elf spare part - but where from?

--------------------
I've NEVER let failure go to MY head!

| IP: Logged

Hugh McCullough
Expert Film Handler

Posts: 156
From: Old Coulsdon. Surrey. UK
Registered: Oct 2006

posted January 27, 2010 06:31 PM

Author's Homepage

Send New Private Message

Edit/Delete Post

I have tried both the aquarium air tubing, and the brake fluid tubing ideas that David mentions.
Both seem to work without any trouble.

I tried the electrical cable idea and found that when the wires were taken out the rubber/plastic insulation tends to form into a triangle shape. This makes it very hard to get focus in the first place let alone keep it.

--------------------
EIKI Ex 6100 xenon machine.

| IP: Logged

Adrian Winchester
Film God

Posts: 2941
From: Croydon, London, UK
Registered: Aug 2004

posted January 28, 2010 11:44 AM

Send New Private Message

Edit/Delete Post

After many years of trying to find the perfect replacement tubing for Elf/Eiki focus knobs, I followed up a tip from someone and obtained a stock of a particular type of windscreen wiper tubing! It's excellent and will probably last far longer than the awful stuff that Eiki persisted in using. I can look up the info for anyone that wants it - or anyone can save time and money by sending me £1 + a SAE. I'll then send enough for at least 5 projectors. Money refunded if not delighted! Email me via here for my address.

[ January 29, 2010, 08:50 AM: Message edited by: Adrian Winchester ]

--------------------
Adrian Winchester

| IP: Logged

Paul Spinks
Master Film Handler

Posts: 453
From: Barking, Essex, UK
Registered: Mar 2006

posted January 28, 2010 11:58 PM

Email Paul Spinks

Send New Private Message

Edit/Delete Post

I used plastic fuel lines for model aircraft, however I have been told that PTFE tape wound round the focus knob is also quite effective.

| IP: Logged

frank arnstein
Jedi Master Film Handler

Posts: 534
From: Gold Coast. Australia
Registered: Jan 2005

posted January 29, 2010 05:01 AM

Author's Homepage

Send New Private Message

Edit/Delete Post

I agree with Adrian on Windscreen washer rubber tubing.
Available at most Auto Parts dealers. Theres a few different sizes so make sure it will fit Ok. I have used this tubing for a long time with no problems. I super Glue the rubber to the adjustment spindle to ensure it doesn;t slip when turning the knob.

Dogtor Frankarnstein [Razz]

[Razz]

--------------------
At Projector Heaven the Focus is always on Detail.

____
[o:/o]<|=- dogtor@projectorheaven.com.au
//``\\
-----------------------------------------------

| IP: Logged

Michael O'Regan
Film God

Posts: 3085
From: Essex, UK
Registered: Oct 2007

posted January 29, 2010 01:22 PM

Email Michael O'Regan

Send New Private Message

Edit/Delete Post

Yeah, I use windscreen washer tubing - it's ideal. Available in the UK from any Halfords branch - just ask for their cine dept.
[Wink]

[Wink]

[ January 29, 2010, 02:33 PM: Message edited by: Michael O'Regan ]

| IP: Logged

Den Brown
Master Film Handler

Posts: 271
From: London, UK
Registered: Apr 2007

posted January 29, 2010 06:22 PM

Email Den Brown

Send New Private Message

Edit/Delete Post

Adrian,

How do I e-mail you? It is not possible to send you a message via PM.

| IP: Logged

Adrian Winchester
Film God

Posts: 2941
From: Croydon, London, UK
Registered: Aug 2004

posted January 30, 2010 07:19 AM

Send New Private Message

Edit/Delete Post

Den,
Just saw your message. Must have been a temporary problem, and I've just unsuccessfully tried to send you a PM!

You can email me via: adrianw_8-16 at tiscali dot co dot uk

--------------------
Adrian Winchester

| IP: Logged

Edwin van Eck
Master Film Handler

Posts: 312
From: Tilburg, Netherlands
Registered: Feb 2015

posted March 14, 2016 06:25 AM

Author's Homepage

Send New Private Message

Edit/Delete Post

Hi,

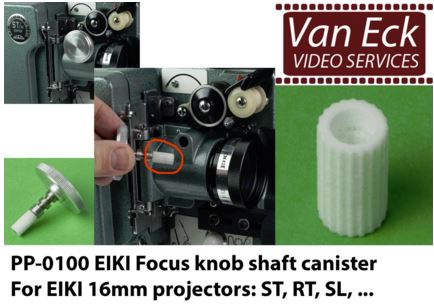

We have this part now ready (using 3D printing techniques):

EIKI focus knob shaft canister SL ST RT - PP-0100 (new)

EIKI focus knob shaft canister - PP-0100 (new)

On most EIKI 16mm projectors the original canister is broken and need replacement.

Fits among others the following projectors:
- EIKI SL series
- EIKI ST series
- EIKI RT series

This part clamps firmly onto the focus knob shaft.

Manufactured with 3D printing techniques.

Weight: 1 gram.
Size: 15 x 8 mm

Design by 3dformadesign.nl
Made in the Netherlands

Link to webshop: http://shop.van-eck.net/PP-0100.html?_globalsearch=pp-0100

--------------------
Edwin van Eck
Van Eck Video Services

| IP: Logged

Lee Mannering
Film God

Posts: 3216
From: The Projection Box
Registered: Nov 2006

posted March 14, 2016 09:30 AM

Send New Private Message

Edit/Delete Post

Den You can still also buy the complete focus knob new to replace, but I have been using coaxial cable outer for years (TV aerial cable) usually about 40pence per mtr.
Happy days!

| IP: Logged

Clinton Hunt
Jedi Master Film Handler

Posts: 845
From: Waharoa,North Island,New Zealand
Registered: May 2010

posted March 14, 2016 07:30 PM

Author's Homepage

Send New Private Message

Edit/Delete Post

It was suggested to me to use masking tape by wrapping it very tightly around the part until it was the right thickness. And it worked.
It was the first and only time I've had to do that and it was a little bit scary but I told myself that I can do it....and I could [Smile]

[Smile]

--------------------
Cheers from me in New Zealand :-)

| IP: Logged

Lee Mannering
Film God

Posts: 3216
From: The Projection Box
Registered: Nov 2006

posted March 15, 2016 05:19 PM

Send New Private Message

Edit/Delete Post

Well done

[Smile]

My crowning Elf moment was to discover they will run on discarded RAF fighter jet belts. I'm only waiting for it to lift off now!

| IP: Logged

Jose Artiles
Master Film Handler

Posts: 357
From: Spain
Registered: Oct 2005

posted March 22, 2016 07:02 AM

Email Jose Artiles

Send New Private Message

Edit/Delete Post

Edwin you have a private message.

--------------------
As Steven Spielberg says....
Nothing beats old school projection. Digital is just an imitation.

| IP: Logged

Jose Artiles
Master Film Handler

Posts: 357
From: Spain
Registered: Oct 2005

posted March 28, 2016 06:45 PM

Email Jose Artiles

Send New Private Message

Edit/Delete Post

Well,after test the part on my own eiki RT-1 i must say its a wonderful part that do the job excellent.After 2:30 hours of continuosly projection of the film "Braveheart" the film stay in focus all the way without need of adjustment,buy this part and all your focus troubles on the eiki will disappear.

--------------------
As Steven Spielberg says....
Nothing beats old school projection. Digital is just an imitation.
