Author Topic: Sankyo 1000 Jitters
Janice Glesser
Film Goddess

Posts: 3468
From: Sunnyvale, CA USA
Registered: Sep 2011


 - posted November 19, 2011 06:36 PM      Profile for Janice Glesser     Send New Private Message       Edit/Delete Post
Now that I have my picture quality greatly improved after removing the glass heat shield on my Sankyo 1000 http://8mmforum.film-tech.com/cgi-bin/ubb/ultimatebb.cgi?ubb=get_topic;f=1;t=006637 I need to see if there's a way to stop or at least minimize on the frame jumping/jittering. Initially I thought it was just the films themselves...but when I run the film in reverse....guess what?...no jitters. Any advise on what is causing this?.. Is it fixable?...Something I can do?

--------------------
Janice

"I'm having a very good day!"
Richard Dreyfuss - Let It Ride (1989).

 |  IP: Logged

frank arnstein
Jedi Master Film Handler

Posts: 534
From: Gold Coast. Australia
Registered: Jan 2005


 - posted November 19, 2011 11:52 PM      Profile for frank arnstein   Author's Homepage   Email frank arnstein   Send New Private Message       Edit/Delete Post
Hi Janice

I didn't need to think too long about this one because it is also quite common on old Sankyos.

This is a completely sprocketless projector, reliant on the claw to move film through the projector. However it still needs 2 loops to work properly or else the film will jitter whenever there is sudden change of tension in the film from the take up reel. That slight tug will be felt all the way back to the claw and aperture, where the picture will jump when the tension is felt. The pressure plate tension is not enough to insulate the film from this jerking or jittering.
So the cause must be eliminated or the symptom will remain.

The lower loop former is the source of the problem. I have tried without luck to post a pic with the tin cover removed to show the internal parts at work. Will send it to Pat to post here for me.

The loop former is actually driven by a large round ring of rubber. This ring is compressed by tension in the film and it will respond by collapsing smoothly. If the tension changes again, it will spring back to its original shape and that pushes out the lower loop former to where it was parked before.
The problem lies in the rubber ring loosing its springiness over time and staying partially collapsed. This means its oval instead of round. This effects the amount of rebound that is available and the smooth dampening effect of the loop former is reduced to the point where the film jitters and it is felt at the aperture as a jitter.

To restore the correct function, carefully unglue the rubber from its attatched point and then turn it around 90 degrees till it resumes pushing the plunger back out easily and smoothly. If it works ok then reglue it in position. Test it with your finger for smooth rebound operation, then replace the tin cover and test it again.
If still ok, try projecting a film and see if the jitter is gone. Observe the loop former in operation when it is projecting and make sure it isn't sticking at all. It may need a tiny spray of lubricant to the sliding plastic parts.

So we will see how you go on this 2nd repair to your Sankyo. So far you have done very good.
Let us all know the result and hope it will be as good as lst time.

dogtor frankarnstein

--------------------
At Projector Heaven the Focus is always on Detail.

____
[o:/o]<|=- dogtor@projectorheaven.com.au
//``\\
-----------------------------------------------

 |  IP: Logged

Janice Glesser
Film Goddess

Posts: 3468
From: Sunnyvale, CA USA
Registered: Sep 2011


 - posted November 20, 2011 01:24 AM      Profile for Janice Glesser     Send New Private Message       Edit/Delete Post
Well Frank, you have definitely honed in on this problem too [Smile] I'm guessing by now you have figured out I'm a "picture" person...so I will need a pic to go along with what you have described. This seems a little more complicated than the glass fix ... and I'm going to take a wild guess that this isn't "the claw" you are talking about :-)

 -

--------------------
Janice

"I'm having a very good day!"
Richard Dreyfuss - Let It Ride (1989).

 |  IP: Logged

Pasquale DAlessio
Film God

Posts: 3523
From: Bristol,RI, USA
Registered: May 2010


 - posted November 20, 2011 03:11 AM      Profile for Pasquale DAlessio     Send New Private Message       Edit/Delete Post
Janice

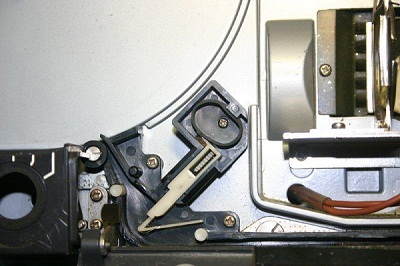

This ones for you! I'M POSTING THIS FOR DOGTOR FRANK.

IGOR

 -

YOU GO GIRL!

 |  IP: Logged

Janice Glesser
Film Goddess

Posts: 3468
From: Sunnyvale, CA USA
Registered: Sep 2011


 - posted November 20, 2011 12:00 PM      Profile for Janice Glesser     Send New Private Message       Edit/Delete Post
Thank you Pat for helping out. Frank...I'll have to study this view...at first glance I'm not sure what I'm looking at :-( I'm putting this fix on hold until after the 29th. I'm heading down to LA to visit one of my sons and celebrate Turkey Day :-)...Stand By.

--------------------
Janice

"I'm having a very good day!"
Richard Dreyfuss - Let It Ride (1989).

 |  IP: Logged

Janice Glesser
Film Goddess

Posts: 3468
From: Sunnyvale, CA USA
Registered: Sep 2011


 - posted November 20, 2011 03:00 PM      Profile for Janice Glesser     Send New Private Message       Edit/Delete Post

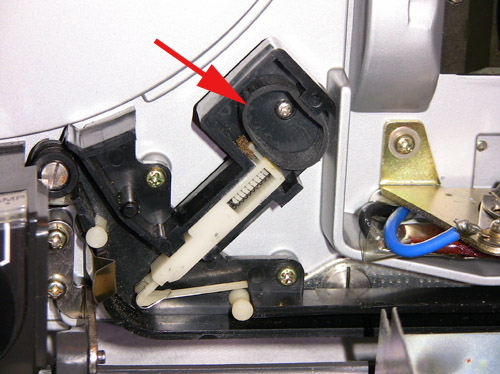

One more thing Dogtor Frank before I go...I figured out what was shown in your pic [Smile] I removed the tin plate. I just wanted to clarify if the arrow is pointing to the correct part in question that needs to be unglued?

 -

At least I'll know where to start when I get back.

--------------------
Janice

"I'm having a very good day!"
Richard Dreyfuss - Let It Ride (1989).

 |  IP: Logged

frank arnstein
Jedi Master Film Handler

Posts: 534
From: Gold Coast. Australia
Registered: Jan 2005


 - posted November 21, 2011 02:57 AM      Profile for frank arnstein   Author's Homepage   Email frank arnstein   Send New Private Message       Edit/Delete Post
Thats correct Janice.
All the action happens under the tin plate that you took off.

Next gently peel the rubber off from where its glued.
When its off you will see how its gone oval from being in the same position for 45 years.
When refitting, make sure its position provides maximum push to the peg, then reglue. Check the parts slide freely back and forth when the cover is back on. It may need a spray lube if its sticky at all.

Then test it out to see if the jitter has gone in forward projection.

We will wait till you report back with result.

dogtor frankarnstein [Wink]

P.S. How do you make those nice red pointer arrows on your pics?

--------------------
At Projector Heaven the Focus is always on Detail.

____
[o:/o]<|=- dogtor@projectorheaven.com.au
//``\\
-----------------------------------------------

 |  IP: Logged

Janice Glesser
Film Goddess

Posts: 3468
From: Sunnyvale, CA USA
Registered: Sep 2011


 - posted December 08, 2011 11:50 AM      Profile for Janice Glesser     Send New Private Message       Edit/Delete Post
Frank, I haven't forgotten about this project, but with the holidays upon us...I'm just putting it on hold. I did pick up a Sankyo 2000H which has less of a jitter problem and I was able to complete some transfers for a video montage project I was working on. I still want to get the 1000 jitters under control though. I'm thinking if that rubber ring needs to be replaced are there any DIY alternatives you can think of?

BTW...In the photo with the arrow, I used Photoshop CS5. It's a feature built-in the software.

--------------------
Janice

"I'm having a very good day!"
Richard Dreyfuss - Let It Ride (1989).

 |  IP: Logged

frank arnstein
Jedi Master Film Handler

Posts: 534
From: Gold Coast. Australia
Registered: Jan 2005


 - posted December 09, 2011 06:38 AM      Profile for frank arnstein   Author's Homepage   Email frank arnstein   Send New Private Message       Edit/Delete Post
Janice,
Unless you have bad luck removing the rubber ring it should be able to be re-used Ok. I cant think of anything else to use as a complete replacement so be careful peeling it off the glue. They can tear.
The 2000h you have bought is a younger and better machine. It still has the same loop forming device but the rubber ring would be more springy and so work better.
good luck with them...

dogtor
[Razz]

--------------------
At Projector Heaven the Focus is always on Detail.

____
[o:/o]<|=- dogtor@projectorheaven.com.au
//``\\
-----------------------------------------------

 |  IP: Logged

Janice Glesser
Film Goddess

Posts: 3468
From: Sunnyvale, CA USA
Registered: Sep 2011


 - posted February 22, 2012 01:52 PM      Profile for Janice Glesser     Send New Private Message       Edit/Delete Post
I wanted to update this thread. I was able to rotate the rubber ring and re-glue it back....If anyone else tries this... DO NOT use Super Glue [Frown] Airplane glue...or even Rubber Cement is good enough.

A couple months later I bought an old junker machine of the same model and replaced the entire lower film guide [Smile]

--------------------
Janice

"I'm having a very good day!"
Richard Dreyfuss - Let It Ride (1989).

 |  IP: Logged

Janice Glesser
Film Goddess

Posts: 3468
From: Sunnyvale, CA USA
Registered: Sep 2011


 - posted January 05, 2013 12:39 PM      Profile for Janice Glesser     Send New Private Message       Edit/Delete Post
UPDATE...I have recently found an simpler solution to reducing the jitters on this projector. It doesn't require removing...turning...and regluing the rubber bumper ring.

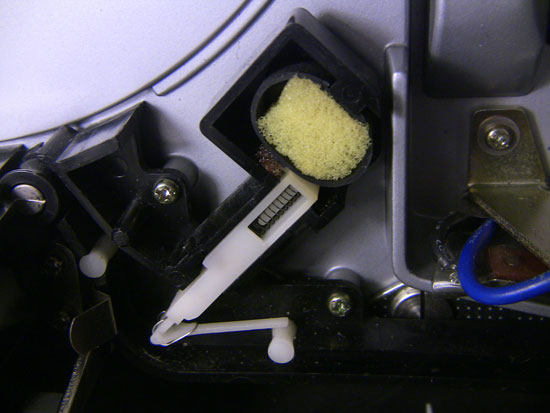

I had some Scrub IT sponges I bought from the Dollar Tree. The sponge is very soft and pliable. I cut a small section out of the sponge...slightly bigger than the inside opening of the rubber ring. I just inserted it inside the ring (no glue)...replaced the shield and the lower plastic guide. This fix very much improved the jitters.

 -

 -

--------------------
Janice

"I'm having a very good day!"
Richard Dreyfuss - Let It Ride (1989).

 |  IP: Logged

Keith Heydon
Junior
Posts: 21
From: Burnaby, BC Canada
Registered: Jun 2012


 - posted January 05, 2013 02:11 PM      Profile for Keith Heydon   Email Keith Heydon   Send New Private Message       Edit/Delete Post
This is my first post on this forum ....so I hope it ends up just below Janices' [Smile]

I have 2 Sankyo Dualux 1000's and I've been following her efforts to get that model of projector into top shape.

This latest post to resolve the "jitter" issue could be just the thing for one of my projectors.

I love the DIY approach ...and, I always appreciate the "cost savings" of materials sourced from a dollar store! [Wink]

I'll post back here when I try this with mine.

Cheers,
Keith

 |  IP: Logged

Janice Glesser
Film Goddess

Posts: 3468
From: Sunnyvale, CA USA
Registered: Sep 2011


 - posted January 05, 2013 06:55 PM      Profile for Janice Glesser     Send New Private Message       Edit/Delete Post
Go for it Keith and welcome to the forum. There's a wealth of knowledge and expertise here and the members are very generous. Folks here have been extremely patient and helpful educating and supporting me with my obsession to fix my projectors [Smile] The Sankyo's are very good machines and worth the time in getting them to run as good as possible.

--------------------
Janice

"I'm having a very good day!"
Richard Dreyfuss - Let It Ride (1989).

 |  IP: Logged

Steve Hartwell
Junior
Posts: 28
From: St Catharines, Ontario, Canada
Registered: Jan 2014


 - posted December 27, 2016 07:25 PM      Profile for Steve Hartwell   Author's Homepage   Email Steve Hartwell   Send New Private Message       Edit/Delete Post
I tried the sponge inside the rubber ring fix but it didn't help. I watched the loop former perform during the film playback and the loop former assembly looked to me to be doing it's job, rapidly moving to compensate for an ever changing tension on the film. It never stuck in compressed position.

My film still jitters.

Could it be caused by some other problem, maybe somehow I screwed up the claw while cleaning the gate with a felt brush ? Or maybe a slipping belt, or speed governor for the takeup reel, or,

--------------------
steve
www.homemovies.ca

 |  IP: Logged

Janice Glesser
Film Goddess

Posts: 3468
From: Sunnyvale, CA USA
Registered: Sep 2011


 - posted December 27, 2016 08:23 PM      Profile for Janice Glesser     Send New Private Message       Edit/Delete Post
Hi Steve...If all the things you have tried did not help the jitters...I found this adjustment to the take-up spindle rod to be very helpful (this shows how to adjust both the 2000H and the 1000 models.)

http://8mmforum.film-tech.com/cgi-bin/ubb/ultimatebb.cgi?ubb=get_topic;f=1;t=009280

If film jams and won't thread try adjusting the claw. It's not difficult. Here is a thread describing how to do it:

http://8mmforum.film-tech.com/cgi-bin/ubb/ultimatebb.cgi?ubb=get_topic;f=1;t=009946

--------------------
Janice

"I'm having a very good day!"
Richard Dreyfuss - Let It Ride (1989).

 |  IP: Logged

Steve Hartwell
Junior
Posts: 28
From: St Catharines, Ontario, Canada
Registered: Jan 2014


 - posted December 27, 2016 11:42 PM      Profile for Steve Hartwell   Author's Homepage   Email Steve Hartwell   Send New Private Message       Edit/Delete Post
Thank you Janice, I shall try your suggestions.

--------------------
steve
www.homemovies.ca

 |  IP: Logged
