Author Topic: Sankyo Sound 600 Speed Adjustment
Janice Glesser
Film Goddess

Posts: 3468
From: Sunnyvale, CA USA
Registered: Sep 2011


 - posted February 20, 2013 04:58 PM      Profile for Janice Glesser   Email Janice Glesser   Send New Private Message       Edit/Delete Post

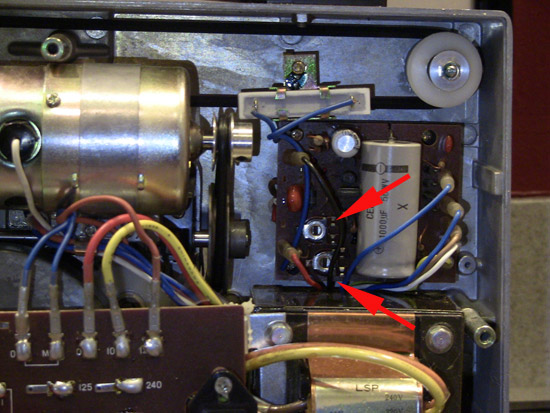

I just picked up a very nice Sankyo Sound 600 projector. It only needed a new motor belt and a lamp. In testing it at 24fps on a sound cartoon I noticed it was running too slow. I've read where this projector has a speed adjustment for 24fps and 18fps. I think I have located the pots to adjust (see arrows below), but I was hoping that someone who has this machine or knows about it can verify these are the speed adjustments...if not where are they? If this IS correct then....which one is for 24fps?

 -

 -

--------------------
Janice

"I'm having a very good day!"
Richard Dreyfuss - Let It Ride (1989).

 |  IP: Logged

Jim Schrader
Phenomenal Film Handler

Posts: 1628
From: Savage, MN, USA
Registered: Jun 2003


 - posted February 20, 2013 05:42 PM      Profile for Jim Schrader   Author's Homepage   Email Jim Schrader   Send New Private Message       Edit/Delete Post
those are it Janice, make sure you use a wooden stick or someting that is non-metal if you have any kibob sticks wittle them into a screw driver size or you may short out something I adjusted mine while playing a film, if I remember one is for 18 and the other is for 24 you will be able to tell once you tweak them if you play a film with music that helps I used little rascals theme to tune mine. Hope that helps

--------------------
jim schrader
"Let's see “do I have that title already?"

 |  IP: Logged

Janice Glesser
Film Goddess

Posts: 3468
From: Sunnyvale, CA USA
Registered: Sep 2011


 - posted February 20, 2013 06:15 PM      Profile for Janice Glesser   Email Janice Glesser   Send New Private Message       Edit/Delete Post
Thanks Jim...I'll give it a go.

--------------------
Janice

"I'm having a very good day!"
Richard Dreyfuss - Let It Ride (1989).

 |  IP: Logged

John Capazzo
Master Film Handler

Posts: 421
From: Hillside, NJ USA
Registered: Jan 2004


 - posted February 20, 2013 07:10 PM      Profile for John Capazzo   Email John Capazzo   Send New Private Message       Edit/Delete Post
Janice,

Jim is correct. Be sure to use a shaved wooden stick or a shaved plastic item to fit the slot and turn SLOWLY to get the right speed.

--------------------
"the image is about 30 feet ahead of us."

 |  IP: Logged

Janice Glesser
Film Goddess

Posts: 3468
From: Sunnyvale, CA USA
Registered: Sep 2011


 - posted February 20, 2013 09:55 PM      Profile for Janice Glesser   Email Janice Glesser   Send New Private Message       Edit/Delete Post
Thanks to both Jim and John...it was a success. It seems to be running at a more correct speed...at least the audio sounds ok.

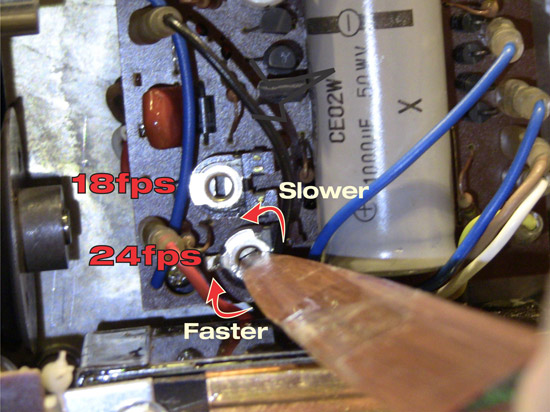

Here's a couple of pics of what I did in case someone else needs to do this.

I removed the back cover and disconnected the speaker wires. I then connected a small external speaker to the audio out jack. This gave me more room without having to deal with the cover.

 -

I loaded a 24fps film with talking...and using a wooden letter opener adjusted the lower pot.

 -

--------------------
Janice

"I'm having a very good day!"
Richard Dreyfuss - Let It Ride (1989).

 |  IP: Logged

Jim Schrader
Phenomenal Film Handler

Posts: 1628
From: Savage, MN, USA
Registered: Jun 2003


 - posted February 21, 2013 09:34 AM      Profile for Jim Schrader   Author's Homepage   Email Jim Schrader   Send New Private Message       Edit/Delete Post
thats great janice i could not remember which was which glad to have helped. [Smile]

--------------------
jim schrader
"Let's see “do I have that title already?"

 |  IP: Logged

Jerome Sutter
Film Handler

Posts: 92
From: Bellwood, IL USA
Registered: Dec 2010


 - posted February 21, 2013 09:45 AM      Profile for Jerome Sutter   Email Jerome Sutter   Send New Private Message       Edit/Delete Post
Thank you for the info, I have the same problem. [Smile]

 |  IP: Logged

Patrick McGrath
Film Handler

Posts: 97
From: Huntington Beach, CA
Registered: Jul 2008


 - posted February 21, 2013 09:23 PM      Profile for Patrick McGrath   Email Patrick McGrath   Send New Private Message       Edit/Delete Post
Nice machine Janice.
I have a parts only 600 if you ever need anything. Although, I have stripped the rollers and a few other odds and ends for my 800 and some odd projects.

 |  IP: Logged

Janice Glesser
Film Goddess

Posts: 3468
From: Sunnyvale, CA USA
Registered: Sep 2011


 - posted February 21, 2013 10:50 PM      Profile for Janice Glesser   Email Janice Glesser   Send New Private Message       Edit/Delete Post
Thank you Patrick...I'll put your name in my resource list. You never know I might need a part one day. [Smile]

BTW. Has anybody had to replace the large belt that goes from the supply reel to the take-up reel. Mine appears very loose...but still seems to work. If I had to replace it I'm not sure how that would be done.

--------------------
