Author Topic: 16mm CIR splicer...and info on 9.5mm
Janice Glesser
Film Goddess

Posts: 3468
From: Sunnyvale, CA USA
Registered: Sep 2011


 - posted August 18, 2017 05:48 PM      Profile for Janice Glesser     Send New Private Message       Edit/Delete Post
I have Super 8 and Std. 8mm CIR splicers and I finally found a 16mm model for under $300 and grabbed it. As a bonus it came with about 7 rolls of tape too. The Elmo 16CL projector I use most often is a bit fussy with splices...but seems to do very well with the CIR tape splices opposed to cement or presstapes. Now to find a 9.5mm model at a reasonable price [Smile]

 -

--------------------
Janice

"I'm having a very good day!"
Richard Dreyfuss - Let It Ride (1989).

 |  IP: Logged

Terry Sills
Phenomenal Film Handler

Posts: 1423
From: Weymouth,Dorset,England
Registered: Oct 2012


 - posted August 19, 2017 01:24 AM      Profile for Terry Sills     Send New Private Message       Edit/Delete Post
Janice
That could be a little more challenging, unless you get very lucky.

 |  IP: Logged

Janice Glesser
Film Goddess

Posts: 3468
From: Sunnyvale, CA USA
Registered: Sep 2011


 - posted August 19, 2017 01:22 PM      Profile for Janice Glesser     Send New Private Message       Edit/Delete Post
Absolutely Terry...I'm not holding my breath. I'd be happy with any 9.5 splicer at this point.

--------------------
Janice

"I'm having a very good day!"
Richard Dreyfuss - Let It Ride (1989).

 |  IP: Logged

David Guest
Phenomenal Film Handler

Posts: 1704
From: Lancashire, UK
Registered: Oct 2011


 - posted August 19, 2017 02:26 PM      Profile for David Guest     Send New Private Message       Edit/Delete Post
Janice don't want to be a kill joy I would have sold you a 16mm cir brand new much cheeper

 |  IP: Logged

Maurice Leakey
Film God

Posts: 5895
From: Bristol. United Kingdom
Registered: Oct 2007


 - posted August 19, 2017 02:36 PM      Profile for Maurice Leakey   Email Maurice Leakey   Send New Private Message       Edit/Delete Post
Janice
9.5 CIR second hand are very rare. You might have to do what I did and buy new from CIR in Italy.
However, you could use a cement splicer such as the Marguet tri-film from France which is for 8mm, 9.5mm, and 16mm.
Good ones are not cheap, but here is a splendid looking one from Australia.
http://www.ebay.com /itm/VINTAGE-ARGUET-COLLEUSE-MARGUET-BN-8-9-5-16MM-MOVIE-FILM-SPLICER-FRANCE-/262041728983?hash=item3d02e777d7:m:mGSwVt8vlvjdfbaF0ssZKXg
Beware, some listed on eBay are without their scraper.

--------------------
Maurice

 |  IP: Logged

Janice Glesser
Film Goddess

Posts: 3468
From: Sunnyvale, CA USA
Registered: Sep 2011


 - posted August 19, 2017 02:58 PM      Profile for Janice Glesser     Send New Private Message       Edit/Delete Post
Maurice...Do you happen to know how much the CIR 9.5 splicers go for? I didn't see any pricing on their site.

...also, Do you think it's possible to use tape with the cement splicer?

--------------------
Janice

"I'm having a very good day!"
Richard Dreyfuss - Let It Ride (1989).

 |  IP: Logged

Clinton Hunt
Jedi Master Film Handler

Posts: 845
From: Waharoa,North Island,New Zealand
Registered: May 2010


 - posted August 19, 2017 06:32 PM      Profile for Clinton Hunt   Author's Homepage     Send New Private Message       Edit/Delete Post
The CIR splicers for 16mm are well worth the investment,I bought mine off a fellow film collector here in New Zealand about 8 years ago and paid approx NZ$300.
It's so easy to use and really quick to get the job done :-)
I will watch with interest on how you get on getting a 9.5mm CIR splicer :-)

--------------------
Cheers from me in New Zealand :-)

 |  IP: Logged

Janice Glesser
Film Goddess

Posts: 3468
From: Sunnyvale, CA USA
Registered: Sep 2011


 - posted August 19, 2017 07:36 PM      Profile for Janice Glesser     Send New Private Message       Edit/Delete Post
Thanks Terry, Maurice, and Clinton. Just like looking for a particular film to add to your collection...we can also look for peripheral accessories to help in this hobby. I'll keep looking for a 9.5 splicing solution [Smile]

@ David... I'm not quite sure why you felt the need to make such a negative comment. What was your point? [Confused] I'm very happy with what I bought and the price I paid. It will save me lots of time and make much better splices. Like others on this forum it's fun to share our excitement of new film related purchases...but comments like yours kind of take the fun out of it.

--------------------
Janice

"I'm having a very good day!"
Richard Dreyfuss - Let It Ride (1989).

 |  IP: Logged

Maurice Leakey
Film God

Posts: 5895
From: Bristol. United Kingdom
Registered: Oct 2007


 - posted August 20, 2017 02:16 AM      Profile for Maurice Leakey   Email Maurice Leakey   Send New Private Message       Edit/Delete Post
Janice

The Invoice from C.I.R. SRL was for 268.46 EURO. The cost of the 9.5 Pathe Film Splicer (Commodity Code 90105000) was 193 EURO. The remaining cost was postage and IVA (VAT).
This was in February 2015.

As regards using tape with a cement splicer. Not really practicable because of the need to perforate the tape, although I suppose the join could be made mid-frame, thus avoiding the perfs.

--------------------
Maurice

 |  IP: Logged

David Baker
Expert Film Handler

Posts: 233
From: Hamilton , Ohio
Registered: Aug 2012


 - posted August 20, 2017 10:14 AM      Profile for David Baker   Email David Baker   Send New Private Message       Edit/Delete Post
Janice - THANK YOU for ALL your contributions and enthusiasm to this genre / hobby !
People LIKE YOU have re-established my faith in fellow film collectors .
THANKS for sharing your many adventures through the years with us .
YOU are truly a film Goddess !

Perhaps someday , in that big cinema in the sky , we shall meet .

--------------------
Dave

 |  IP: Logged

Janice Glesser
Film Goddess

Posts: 3468
From: Sunnyvale, CA USA
Registered: Sep 2011


 - posted August 20, 2017 02:46 PM      Profile for Janice Glesser     Send New Private Message       Edit/Delete Post
Thanks for the pricing info Maurice. Buying one directly from CIR may be the way to go. However, I just don't know if I would use a 9.5 splicer enough to justify the expense...just have to think about it.

Right now I'm using what Pathe' called a splicer...but it's barely that [Smile] I cut the film with one of my CIR splicers then tape down the curled film from my Pathe' Baby cartridges into the little splicer film path. I put a piece of tape on one side and lower the clamp. I then do the same to the other side. I then trim the tape that extends over the film width with a razor blade. The splicer will not punch a hole so I have to cut it out with an exacto blade. My guess is that this splicer was made to use with cement...but it's near impossible to get the old film to lay flat so cementing would be even more difficult.

 -

[ August 20, 2017, 05:01 PM: Message edited by: Janice Glesser ]

--------------------
Janice

"I'm having a very good day!"
Richard Dreyfuss - Let It Ride (1989).

 |  IP: Logged

Alessandro Pavoni
Master Film Handler

Posts: 255
From: Zürich/Switzerland
Registered: Sep 2009


 - posted August 20, 2017 03:20 PM      Profile for Alessandro Pavoni   Email Alessandro Pavoni   Send New Private Message       Edit/Delete Post
Hi Janice, I found the CIR 9.5 mm on ebay, It is not mine.
http://www.ebay.fr/itm/Colleuse-9-5mm-CIR-/201611829040?hash=item2ef1005f30

 |  IP: Logged

Janice Glesser
Film Goddess

Posts: 3468
From: Sunnyvale, CA USA
Registered: Sep 2011


 - posted August 20, 2017 04:09 PM      Profile for Janice Glesser     Send New Private Message       Edit/Delete Post
Thank you Alessandro. It looks like a beauty. At $402 plus shipping it's a little to expensive for my budget. However I appreciate you looking out for me. It's nice to have some other eyes out there to help in the search [Smile]

--------------------
Janice

"I'm having a very good day!"
Richard Dreyfuss - Let It Ride (1989).

 |  IP: Logged

Clinton Hunt
Jedi Master Film Handler

Posts: 845
From: Waharoa,North Island,New Zealand
Registered: May 2010


 - posted August 21, 2017 01:02 AM      Profile for Clinton Hunt   Author's Homepage     Send New Private Message       Edit/Delete Post

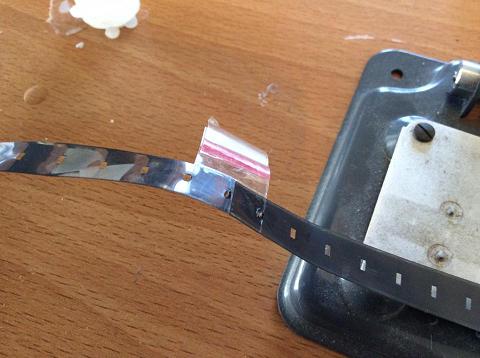

I do what you do Janice when using tape to join 9.5mm film,but I make my perforation hole using a tiny screwdriver,I heat the end using a candle and lightly make a tiny hole in the tape.
It works great,may not look pretty but that's ok :-)

--------------------
Cheers from me in New Zealand :-)

 |  IP: Logged

Janice Glesser
Film Goddess

Posts: 3468
From: Sunnyvale, CA USA
Registered: Sep 2011


 - posted August 21, 2017 01:51 AM      Profile for Janice Glesser     Send New Private Message       Edit/Delete Post
That's an interesting technique Clinton. Thanks for the suggestion. I'll have to try it. Making the hole is the most tedious and time consuming part and believe me the holes I cut with the exacto blade don't look that good either. I've thought about some how modifying a hand paper punch to make the 9.5 hole, but haven't quite figured out how to do it yet.

--------------------
Janice

"I'm having a very good day!"
Richard Dreyfuss - Let It Ride (1989).

 |  IP: Logged

Maurice Leakey
Film God

Posts: 5895
From: Bristol. United Kingdom
Registered: Oct 2007


 - posted August 21, 2017 02:40 AM      Profile for Maurice Leakey   Email Maurice Leakey   Send New Private Message       Edit/Delete Post
Janice
The Pathescope Film Mender was an accessory for the Pathe Baby projector. The actual joins were made with perforated film patches. The simple latch being used to clamp the film being spliced.

--------------------
Maurice

 |  IP: Logged

Janice Glesser
Film Goddess

Posts: 3468
From: Sunnyvale, CA USA
Registered: Sep 2011


 - posted August 21, 2017 11:09 AM      Profile for Janice Glesser     Send New Private Message       Edit/Delete Post
Note: I've changed the title of this thread since it's branched out from the 16mm CIR splicer I bought...to some interesting information on various 9.5mm splicing alternatives.

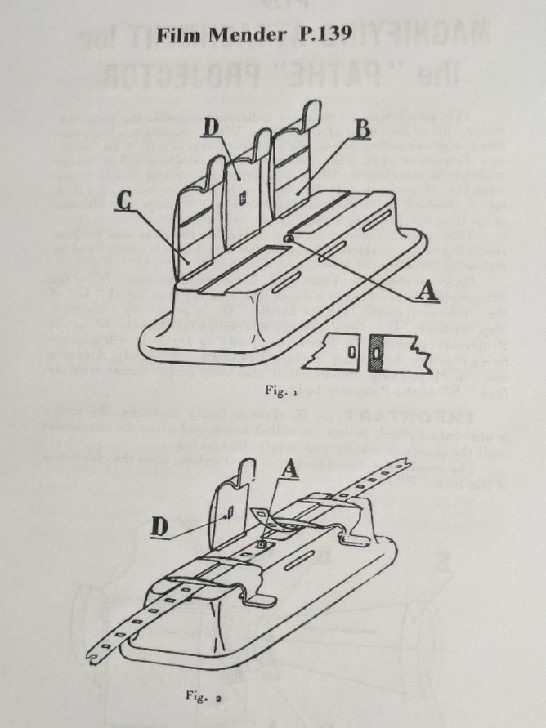

Maurice here is what I found in my Pathe' Baby docs. The picture below looks like a better Film Mender than what I have... with clamps to hold down the film. The instructions say to strictly use a special film cement called Patheine and that other film cements wouldn't work. I wonder what was different about this cement compared to what we use on 8 and 16mm film.

 -

--------------------
Janice

"I'm having a very good day!"
Richard Dreyfuss - Let It Ride (1989).

 |  IP: Logged

Terry Sills
Phenomenal Film Handler

Posts: 1423
From: Weymouth,Dorset,England
Registered: Oct 2012


 - posted August 21, 2017 11:53 AM      Profile for Terry Sills     Send New Private Message       Edit/Delete Post
Janice
I have two of these and you are welcome to one for just the cost of postage. It may be more useful until you eventually find a 9.5 CIR. The problem is the cheapest rate I can find is £10 Royal Mail which is more than it is worth. Do you know of a cheaper way?

I absolutely agree with David Baker. You are truly inspirational and a credit to the forum and I love to see the great projects you take on. Keep up the good work [Smile]

 |  IP: Logged

Ken Finch
Jedi Master Film Handler

Posts: 543
From: Herne Bay, Kent. U.K.
Registered: Oct 2011


 - posted August 21, 2017 12:17 PM      Profile for Ken Finch   Email Ken Finch   Send New Private Message       Edit/Delete Post
Hi Janice, The 9.5mm CIR splicers were always very much more expensive than the ones for the other gauges, hence the rarity. Cement ones being readily available much more cheaply. The best ones were the Marguet (French) and Ensign Universal(English) Tri gauge 8/16/9.5mm Not super8,splicers. The Pathescope ones were not very good and wore out quickly. The ones you illustrated were designed for use with sprocket hole repair patches. This is based on my70 odd years experience as a 9.5mm "Cinemaniac"!!! I do have a CIR 9.5mm splicer which I was fortunate to pick up from a "Junk shop" many years ago for about £50. This was about 30% of the price of a new one at that time. Ken Finch.

 |  IP: Logged

Janice Glesser
Film Goddess

Posts: 3468
From: Sunnyvale, CA USA
Registered: Sep 2011


 - posted August 21, 2017 01:03 PM      Profile for Janice Glesser     Send New Private Message       Edit/Delete Post
@Terry... Sounds good... I'll PM you. My son just traveled from London to Edinburgh today. To bad he wasn't heading south...he could have picked it up [Smile]

@Ken...Thank you for adding your experience and knowledge to this thread. The history and implimentation of these parts is so interesting and needs to be shared. [Smile]

[ August 21, 2017, 03:08 PM: Message edited by: Janice Glesser ]

--------------------
Janice

"I'm having a very good day!"
Richard Dreyfuss - Let It Ride (1989).

 |  IP: Logged

Dominique De Bast
Film God

Posts: 4486
From: Brussels, Belgium
Registered: Jun 2013


 - posted August 21, 2017 02:31 PM      Profile for Dominique De Bast   Email Dominique De Bast   Send New Private Message       Edit/Delete Post
There is an article (in French) in the latest edition of the magazine published by the Ciné Club 9.5 de France explaining how to convert a 16 mm hanel splicer to 9.5 [Smile]

--------------------
Dominique

 |  IP: Logged

Janice Glesser
Film Goddess

Posts: 3468
From: Sunnyvale, CA USA
Registered: Sep 2011


 - posted August 21, 2017 03:05 PM      Profile for Janice Glesser     Send New Private Message       Edit/Delete Post
How could I see that article Dom?

--------------------
Janice

"I'm having a very good day!"
Richard Dreyfuss - Let It Ride (1989).

 |  IP: Logged

Dominique De Bast
Film God

Posts: 4486
From: Brussels, Belgium
Registered: Jun 2013


 - posted August 22, 2017 12:30 AM      Profile for Dominique De Bast   Email Dominique De Bast   Send New Private Message       Edit/Delete Post
It is not online, Janice. The magazine is printed only. I can send you a scan if you like. But I realized that the Hahnel used to be converted to 9.5 splicer is not a 16 mm but a 8/super 8 one.

--------------------
Dominique

 |  IP: Logged

Clinton Hunt
Jedi Master Film Handler

Posts: 845
From: Waharoa,North Island,New Zealand
Registered: May 2010


 - posted August 22, 2017 12:34 AM      Profile for Clinton Hunt   Author's Homepage     Send New Private Message       Edit/Delete Post
Heat the end of a tiny screwdriver with a flat end the same size as a 9.5mm perforation ...

 -

Gently push it through the tape just enough to create a hole,it may not look pretty but it works well for me ...

 -

--------------------
Cheers from me in New Zealand :-)

 |  IP: Logged

Chris Bird
Expert Film Handler

Posts: 218
From: Kingston upon Thames, UK
Registered: Jul 2013


 - posted August 22, 2017 02:59 AM      Profile for Chris Bird   Email Chris Bird   Send New Private Message       Edit/Delete Post
Hi Janice. Grahame Newnham has various 9.5mm cement splicers for sale, including the Marguet, which as Ken says is the best of the cement ones. He won't ship internationally, but if you wanted one from him, get him to send it to me, and I can ship it on to you.

http://www.pathefilm.uk/lists/filmlista.htm

It's best to phone him, he gets swamped with emails.

I used a Marguet for years before finally blowing about £200 on a CIR one, which is worth its weight in gold.

I work as a film editor, and years ago saved a pile of 16mm and 35mm ones from going in the skip, which I then gave on to other collectors.

 |  IP: Logged
