Author Topic: Speed adjust Eumig S 810 D Lux
Clinton Hunt
Jedi Master Film Handler

Posts: 845
From: Waharoa,North Island,New Zealand
Registered: May 2010


 - posted April 28, 2017 03:02 AM      Profile for Clinton Hunt   Author's Homepage   Email Clinton Hunt   Send New Private Message       Edit/Delete Post
Good advice from you guys as always,I will plug it in tomorrow and let it run for an hour or 2 and see what that does [Smile] [Smile]

--------------------
Cheers from me in New Zealand :-)

 |  IP: Logged

Maurizio Di Cintio
Jedi Master Film Handler

Posts: 977
From: Ortona, Italy
Registered: Jan 2004


 - posted April 28, 2017 07:37 AM      Profile for Maurizio Di Cintio   Email Maurizio Di Cintio   Send New Private Message       Edit/Delete Post
Hello, Clinton. Please tell me: in NZ do you have 50 or 60 Hz mains? And where did your Eumig come from?

In the meantime, it is advisable not to lubricate ANYTHING at all more than you have rightly done yet: the motor does not need anything like that if it runs very siklently while in stand-by mode. Instead you should check that the pulley on top of the motor's shaft is clean and not slippery. Also the rubber covered discs might be hardened and/or somewhat dirty or greasy; in either cases this will cause the pulley to slip to a certain degree when transferring power to the mechanism hence (one) of the possible reasons for your Eumig to run a bit slow. And no, to the best of my knowledge there is no electronic regulation (trim pot etcc) to fine tune its speed: it's a totally mechanic contraption relying on manufacturing precision: both the discs and the pulley are slightly wedge-shaped and this lets the projector achieve the speed change. So both discs and pulley must be clean. If not use a cotton swab with some isopropyl alcohol. If the rubber is hardened, use the finest sand paper and rejuvenate their surfaces just a little so proper contact and grip between pulley and discs is restored. Also check the mains frequency: if the machines is set to work at 60Hz but you have 50 in your area, the projector wil lnoticeably run slower than due.

--------------------
Maurizio

 |  IP: Logged

Andrew Woodcock
Film God

Posts: 7477
From: Manchester Uk
Registered: Aug 2012


 - posted April 28, 2017 09:44 AM      Profile for Andrew Woodcock         Edit/Delete Post
Speed potentiometer's are only ever necessary to trim the speed on D.C. motors not A.C. ones like are fitted to this machine.
As Maurizio points out, speed is mechanically governed on this type of machine, not electronically.
Maurizio, as always, offers some good advice here.

--------------------
"C'mon Baggy..Get with the beat"

 |  IP: Logged

Maurice Leakey
Film God

Posts: 5895
From: Bristol. United Kingdom
Registered: Oct 2007


 - posted April 28, 2017 10:13 AM      Profile for Maurice Leakey   Email Maurice Leakey   Send New Private Message       Edit/Delete Post
The electricity supply in New Zealand is 230volts @ 50Hz.

--------------------
Maurice

 |  IP: Logged

Terry Sills
Phenomenal Film Handler

Posts: 1423
From: Weymouth,Dorset,England
Registered: Oct 2012


 - posted April 28, 2017 11:01 AM      Profile for Terry Sills   Email Terry Sills   Send New Private Message       Edit/Delete Post
Mauricio is correct. Do not lubricate anything. There is no speed adjustment other than the 18/24 fps switch. The problem is the contact between the spinning disc on the motor shaft, which is critical. The circular plate that the spinning disc makes contact with is usually rubber coated, although I have seen older models that are plain aluminium. The spinning disc has an outer rubber ring which makes contact with the circular drive plate when the projector is switched to forward or reverse. This simply rocks the motor from a central neutral position to the drive position which brings the spinning disc into contact. The rubber on the spinning disc can be the problem, because unless it makes contact at the correct pressure, the speed of the projector will be slow. Try cleaning both the circular drive plate and the rubber on the spinning disc, this sometimes works. If not take a look at the motor mountings. They are prone to breaking up, in which case you may have to replace them with home made resin or rubber alternatives. Again these motor mounts will affect the critical contact of the spinning disc. It may sound daunting but I have undertaken it successfully.

 |  IP: Logged

Janice Glesser
Film Goddess

Posts: 3468
From: Sunnyvale, CA USA
Registered: Sep 2011


 - posted April 28, 2017 12:23 PM      Profile for Janice Glesser   Email Janice Glesser   Send New Private Message       Edit/Delete Post
Good to know about the motor guys. I'm making a note of this [Smile] When I've had issues with my Elmo's... the advice has always been to drop some oil on the bushings. I guess that's not the tactic with the Eumig. I also have this same model Eumig and did all the things you have suggested when I first got the projector. My machine is still running fine, so hopefully these steps will improve the performance of Clinton's projector also.

--------------------
Janice

"I'm having a very good day!"
Richard Dreyfuss - Let It Ride (1989).

 |  IP: Logged

Will Trenfield
Jedi Master Film Handler

Posts: 506
From: Shrewsbury, Shropshire, UK
Registered: Mar 2016


 - posted April 28, 2017 04:02 PM      Profile for Will Trenfield   Email Will Trenfield   Send New Private Message       Edit/Delete Post
The motor mounts that Terry mentioned can be purchased here
http://shop.van-eck.net/film-projector-parts/parts/p-2a/PP-0138.html

 |  IP: Logged

Will Trenfield
Jedi Master Film Handler

Posts: 506
From: Shrewsbury, Shropshire, UK
Registered: Mar 2016


 - posted April 28, 2017 04:02 PM      Profile for Will Trenfield   Email Will Trenfield   Send New Private Message       Edit/Delete Post
Rather than sanding the rubber disks, try using ordinary brake fluid (glycol-ether not mineral) left overnight. This causes the rubber to expand.

 |  IP: Logged

Tom Photiou
Film God

Posts: 4837
From: Plymouth U.K
Registered: Dec 2003


 - posted April 28, 2017 04:08 PM      Profile for Tom Photiou   Email Tom Photiou   Send New Private Message       Edit/Delete Post
can anyone on here give us a play by play how to remove and replace the motor mounts?

 |  IP: Logged

Clinton Hunt
Jedi Master Film Handler

Posts: 845
From: Waharoa,North Island,New Zealand
Registered: May 2010


 - posted April 28, 2017 06:08 PM      Profile for Clinton Hunt   Author's Homepage   Email Clinton Hunt   Send New Private Message       Edit/Delete Post

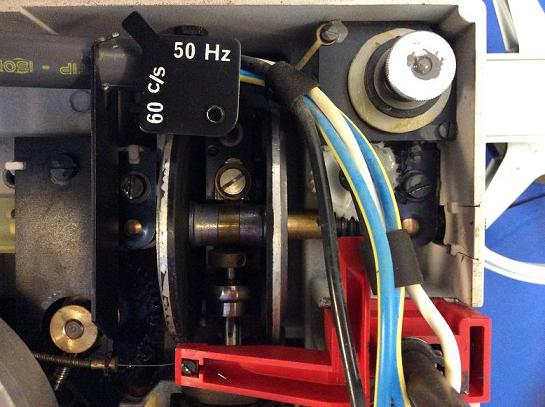

Here is a picture of the screw behind the 18 - 24 lever (centre of pic).
I noticed mine didn't go all the way to the top so I undid the screw and moved the back plate slightly,and it worked.
Thanks to this wonderful forum as always!
 -

--------------------
Cheers from me in New Zealand :-)

 |  IP: Logged

Janice Glesser
Film Goddess

Posts: 3468
From: Sunnyvale, CA USA
Registered: Sep 2011


 - posted April 28, 2017 07:10 PM      Profile for Janice Glesser   Email Janice Glesser   Send New Private Message       Edit/Delete Post
That's terrific Clinton! Happy it was that simple [Smile]

--------------------
Janice

"I'm having a very good day!"
Richard Dreyfuss - Let It Ride (1989).

 |  IP: Logged

Will Trenfield
Jedi Master Film Handler

Posts: 506
From: Shrewsbury, Shropshire, UK
Registered: Mar 2016


 - posted April 28, 2017 07:11 PM      Profile for Will Trenfield   Email Will Trenfield   Send New Private Message       Edit/Delete Post
In response to Tom's post, I removed the motor on a scrap Eumig Mark 8 a while back pretty easily. There was a small spring on the reverse which came off and I couldn't make out where it fitted. Replacing the motor mounts looked to be straightforward but it could be a pig to put it back together. Glad you sorted your speed problem, Clinton. The lever operates a collar, from what I remember, which raises the motor drive to a different area of the disk drive to increase the speed. I guess that the rubber disk had worn at the original setting.

 |  IP: Logged

Clinton Hunt
Jedi Master Film Handler

Posts: 845
From: Waharoa,North Island,New Zealand
Registered: May 2010


 - posted April 28, 2017 09:17 PM      Profile for Clinton Hunt   Author's Homepage   Email Clinton Hunt   Send New Private Message       Edit/Delete Post
Here's 2 Youtube videos of my projector in action,Super 8mm sound and Standard 8mm sound [Smile]

https://www.youtube.com/watch?v=Bp_LTDX4mzk

https://www.youtube.com/watch?v=18SFWUUCdu0

--------------------
Cheers from me in New Zealand :-)

 |  IP: Logged

Maurice Leakey
Film God

Posts: 5895
From: Bristol. United Kingdom
Registered: Oct 2007


 - posted April 29, 2017 02:21 AM      Profile for Maurice Leakey   Email Maurice Leakey   Send New Private Message       Edit/Delete Post
Great.
I've never seen a Eumig 810 with yellow/beige handle and other parts.

--------------------
Maurice

 |  IP: Logged

Dominique De Bast
Film God

Posts: 4486
From: Brussels, Belgium
Registered: Jun 2013


 - posted April 29, 2017 03:02 AM      Profile for Dominique De Bast   Email Dominique De Bast   Send New Private Message       Edit/Delete Post
Well done, Clinton !

--------------------
Dominique

 |  IP: Logged

Clinton Hunt
Jedi Master Film Handler

Posts: 845
From: Waharoa,North Island,New Zealand
Registered: May 2010


 - posted April 29, 2017 04:37 AM      Profile for Clinton Hunt   Author's Homepage   Email Clinton Hunt   Send New Private Message       Edit/Delete Post
Thanks Dom,if it had been an electronic problem then I would've been stuck [Smile]

--------------------
Cheers from me in New Zealand :-)

 |  IP: Logged

Paul Browning
Phenomenal Film Handler

Posts: 1006
From: West Midlands United Kingdom
Registered: Aug 2011


 - posted April 29, 2017 05:26 AM      Profile for Paul Browning   Email Paul Browning   Send New Private Message       Edit/Delete Post
Hi Clinton, have a look at this youtube video it may help you and other eumig owners with this problem on the drive discs. https://www.youtube.com/watch?v=hqyZqPN-UTo

 |  IP: Logged

Tom Photiou
Film God

Posts: 4837
From: Plymouth U.K
Registered: Dec 2003


 - posted April 29, 2017 06:16 AM      Profile for Tom Photiou   Email Tom Photiou   Send New Private Message       Edit/Delete Post
Maurice, i think you'll find thats what the years do to the white coating,(a bit like very early plastic windows, they go a wee bit yellowy) [Big Grin]

 |  IP: Logged

Clinton Hunt
Jedi Master Film Handler

Posts: 845
From: Waharoa,North Island,New Zealand
Registered: May 2010


 - posted April 29, 2017 07:15 AM      Profile for Clinton Hunt   Author's Homepage   Email Clinton Hunt   Send New Private Message       Edit/Delete Post
Hi Paul, that is a great YouTube video,my problem fixed now,I let the projector run for a few hours and everything seems good now.
I liked the way it actually showed the pads etc people talked about!

--------------------
Cheers from me in New Zealand :-)

 |  IP: Logged

David Roberts
Master Film Handler

Posts: 405
From: Suffolk. England
Registered: Apr 2004


 - posted April 29, 2017 07:35 AM      Profile for David Roberts   Email David Roberts   Send New Private Message       Edit/Delete Post
Tom,
years ago I replaced the motor mounts on a mk s using the parts supplied by John White.
it was quite easy except for the fine adjustment,ie exact position of motor in relation to its mounting.
I never got my mk s to run properly in reverse but managed to get it going ok for normal forward projection.

 |  IP: Logged

Terry Sills
Phenomenal Film Handler

Posts: 1423
From: Weymouth,Dorset,England
Registered: Oct 2012


 - posted April 29, 2017 09:35 AM      Profile for Terry Sills   Email Terry Sills   Send New Private Message       Edit/Delete Post
Well spotted Clinton. Glad it was that easy to fix. Hopefully the motor mounts are still ok but good to know that new spares are available.
Tom - it's fairly easy to remove the motor by undoing the screws that secure the aluminium plate that contains the motor mount, then undoing the two screw either side of the semi circular aluminium casting that the motor sits on. When this casting is removed you can pull the motor towards you so that the rear shaft of the motor slides out of the rear mount. After that you should be able to take the motor out. You may have to take off a black metal plate that sits over the red record button. The power lead spade connector needs to be disconnected and the earth lead is disconnected when you undo one of the screws of the semi circular casting. The fiddly bit is relocating the motor after replacing the motor mounts because you can't see the rear motor shaft or motor mount and it makes it awkward to locate the shaft into the bearing. But it's doable

 |  IP: Logged

Tom Photiou
Film God

Posts: 4837
From: Plymouth U.K
Registered: Dec 2003


 - posted April 30, 2017 07:03 AM      Profile for Tom Photiou   Email Tom Photiou   Send New Private Message       Edit/Delete Post
Thanks Terry & Dave,
Clinton, Glad to see yours is all up and running fine again [Wink]

 |  IP: Logged

Gary Crawford
Jedi Master Film Handler

Posts: 979
From: Manassas, VA. USA
Registered: Jun 2003


 - posted May 02, 2017 07:31 AM      Profile for Gary Crawford   Email Gary Crawford   Send New Private Message       Edit/Delete Post
The neat thing about the Eumigs is that the mechanical speed control can be set to any speed BETWEEN 18 and 24fps. You can move that lever anywhere in the middle. This is particularly good for finding a correct speed for various silent era films.

 |  IP: Logged

Tom Photiou
Film God

Posts: 4837
From: Plymouth U.K
Registered: Dec 2003


 - posted May 02, 2017 01:03 PM      Profile for Tom Photiou   Email Tom Photiou   Send New Private Message       Edit/Delete Post
Following on from this , by undoing that screw Clinton, doesnt the spinning part now go all the way to the top making it run too fast? I tried this and its way to fast, now i cant seem to re adjust it back don. DOHH [Confused]

 |  IP: Logged

Clinton Hunt
Jedi Master Film Handler

Posts: 845
From: Waharoa,North Island,New Zealand
Registered: May 2010


 - posted May 02, 2017 07:13 PM      Profile for Clinton Hunt   Author's Homepage   Email Clinton Hunt   Send New Private Message       Edit/Delete Post
Hi Tom,
All I can say is it worked for me,the speed sounds right to me now.
I haven't tried to make it slower doing the same thing.
I'm sure someone will have the answer [Smile]

--------------------
Cheers from me in New Zealand :-)

 |  IP: Logged
